GRN245L-PRADKA (2004)
Toyota Tacoma

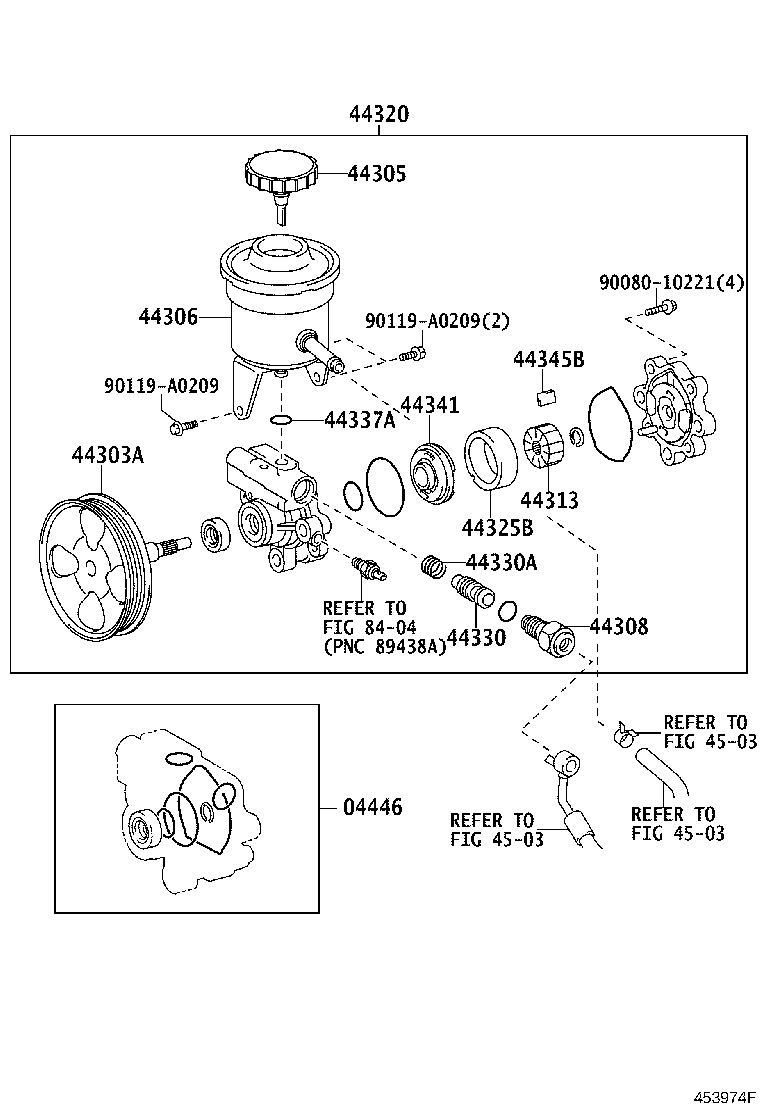

(0409- )GRN225,245,250,265,270,305,310,325,330
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-02070 |
GRN245,250,265,270 |
1 | ||
| 04446-02140 |
GRN225,TRN22#,24#,26# |
1 | ||
| 04446-02070 |
GRN225,TRN22#,24#,26# |
1 | ||
| 04446-02140 |
GRN245,250,265,270 |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-06060 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22040 |
TRN22#,24#,26# |
1 | ||
| 44305-22060 |
TRN22#,24#,26# |
1 | ||
| 44305-06050 |
GRN225,245,250,265,270 |
1 | ||
| 44305-06030 |
GRN225,245,250,265,270 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-04030 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-06060 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 0 |
1 | ||
| 44313-06100 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 4 |
1 | ||
| 44313-06090 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 3 |
1 | ||
| 44313-06080 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 2 |
1 | ||
| 44313-06070 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 1 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-04150 |
GRN245,250,265,270 |
1 | ||
| 44325B - RING, VANE PUMP CAM | ||||
| 44325-06070 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 1 |
1 | ||
| 44325-06080 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 2 |
1 | ||
| 44325-06100 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 4 |
1 | ||
| 44325-06090 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 3 |
1 | ||
| 44325-06060 |
GRN225,245,250,265,270,TRN22#,24#,26# NO MARK |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-04080 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK B |
1 | ||
| 44330-04090 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK C |
1 | ||
| 44330-04070 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK A |
1 | ||
| 44330-04110 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK E |
1 | ||
| 44330-04120 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK F |
1 | ||
| 44330-04100 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK D |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90080-50222 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-32110 |
GRN245,250,265,270 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11020 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32031 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-06010 |
GRN225,245,250,265,270,TRN22#,24#,26# L=12.000 |
10 | ||
| 44345-06020 |
GRN225,245,250,265,270,TRN22#,24#,26# L=11.998 |
10 | ||
| 44345-06030 |
GRN225,245,250,265,270,TRN22#,24#,26# L=11.996 |
10 | ||
| 44345-06040 |
GRN225,245,250,265,270,TRN22#,24#,26# L=11.994 |
10 | ||
| 44345-06050 |
GRN225,245,250,265,270,TRN22#,24#,26# L=11.992 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-04010 |
GRN225,245,250,265,270 |
1 | ||
| Common parts | ||||
| 90080-10221 | ||||
| 90080-11463 | ||||
| 90119-A0197 | ||||
| Linked diagrams | ||||
| 4503 | ||||
| 8404 | ||||

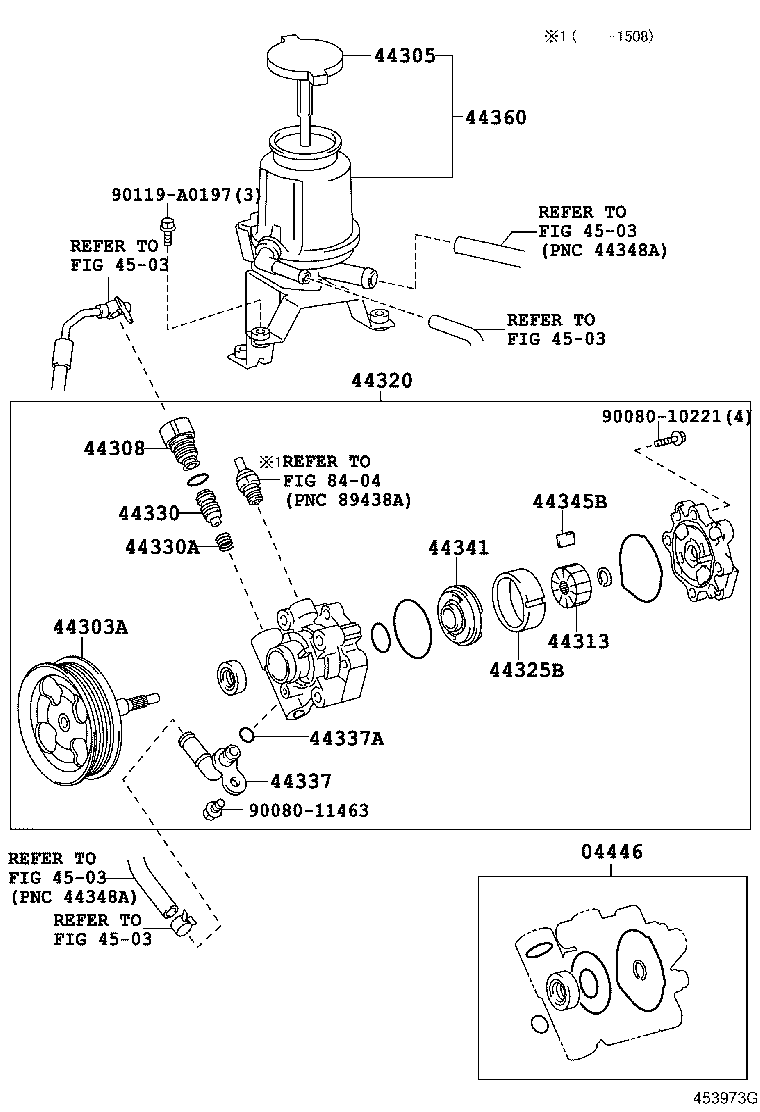

(0409- )TRN22#,24#,26#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-02070 |
GRN245,250,265,270 |
1 | ||
| 04446-02140 |
GRN225,TRN22#,24#,26# |
1 | ||
| 04446-02070 |
GRN225,TRN22#,24#,26# |
1 | ||
| 04446-02140 |
GRN245,250,265,270 |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-06060 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22040 |
TRN22#,24#,26# |
1 | ||
| 44305-22060 |
TRN22#,24#,26# |
1 | ||
| 44305-06050 |
GRN225,245,250,265,270 |
1 | ||
| 44305-06030 |
GRN225,245,250,265,270 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-04030 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-06060 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 0 |
1 | ||
| 44313-06100 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 4 |
1 | ||
| 44313-06090 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 3 |
1 | ||
| 44313-06080 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 2 |
1 | ||
| 44313-06070 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 1 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44310-04150 |
GRN245,250,265,270 |
1 | ||
| 44325B - RING, VANE PUMP CAM | ||||
| 44325-06070 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 1 |
1 | ||
| 44325-06080 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 2 |
1 | ||
| 44325-06100 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 4 |
1 | ||
| 44325-06090 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK 3 |
1 | ||
| 44325-06060 |
GRN225,245,250,265,270,TRN22#,24#,26# NO MARK |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-04080 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK B |
1 | ||
| 44330-04090 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK C |
1 | ||
| 44330-04070 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK A |
1 | ||
| 44330-04110 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK E |
1 | ||
| 44330-04120 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK F |
1 | ||
| 44330-04100 |
GRN225,245,250,265,270,TRN22#,24#,26# MARK D |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90080-50222 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11020 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32031 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-06010 |
GRN225,245,250,265,270,TRN22#,24#,26# L=12.000 |
10 | ||
| 44345-06020 |
GRN225,245,250,265,270,TRN22#,24#,26# L=11.998 |
10 | ||
| 44345-06030 |
GRN225,245,250,265,270,TRN22#,24#,26# L=11.996 |
10 | ||
| 44345-06040 |
GRN225,245,250,265,270,TRN22#,24#,26# L=11.994 |
10 | ||
| 44345-06050 |
GRN225,245,250,265,270,TRN22#,24#,26# L=11.992 |
10 | ||
| Common parts | ||||
| 90080-10221 | ||||
| 90119-A0209 | ||||
| Linked diagrams | ||||
| 4503 | ||||
| 8404 | ||||
