GRN245L-PRADKA (2004)
Toyota Tacoma

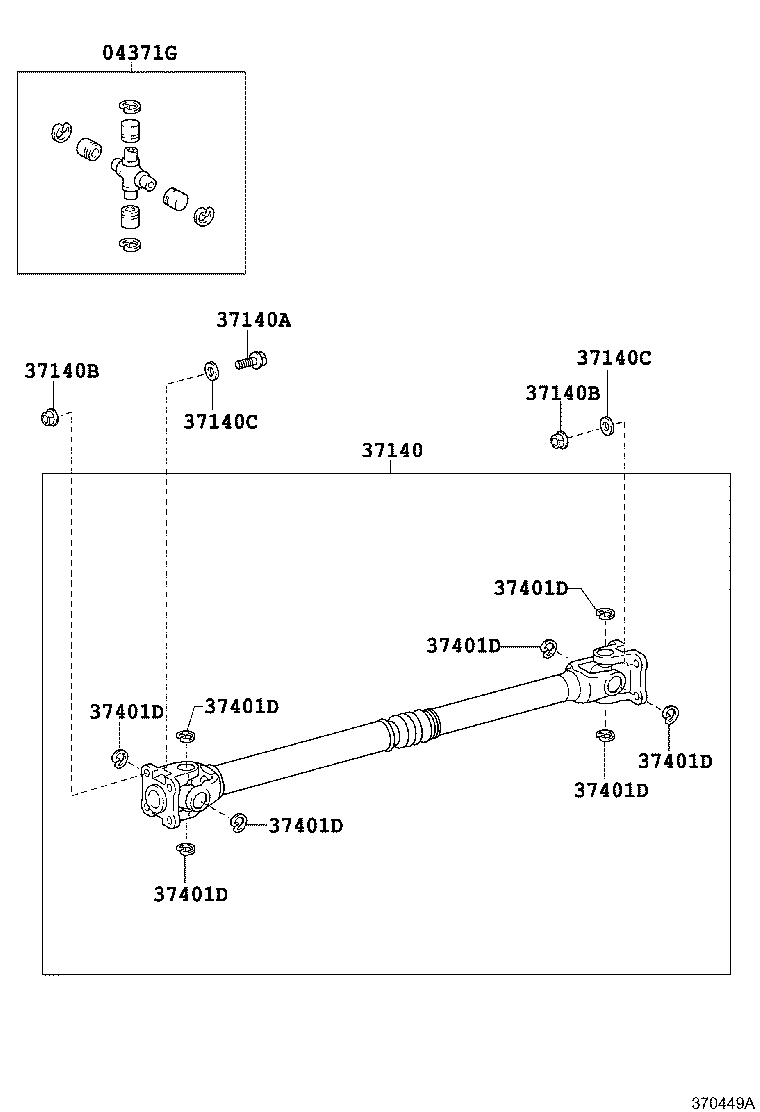

ILLUST NO. 1 OF 2(0409-1508)GRN245,250,TRN24# ; (1508- )GRN305,310,TRN245
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371G - SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-04043 |
GRN245,250,TRN24# |
2 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-04050 |
GRN245,250,TRN24#..5F,5FC |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90105-A0075 |
GRN245,250,TRN24# |
4 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90178-A0045 |
GRN245,250,TRN24# |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90178-A0045 |
GRN245,250,TRN24# |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90201-11013 |
GRN245,250,TRN24# |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90201-11013 |
GRN245,250,TRN24# |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90080-52038 |
GRN245,250,TRN24# T=1.64,BLUE |
8 | ||
| 90080-52041 |
GRN245,250,TRN24# T=1.49,COPPER |
8 | ||
| 90080-52156 |
GRN245,250,TRN24# T=1.52 |
8 | ||
| 90080-52043 |
GRN245,250,TRN24# T=1.44,RED |
8 | ||
| 90080-52039 |
GRN245,250,TRN24# T=1.59,YELLOW |
8 | ||
| 90080-52040 |
GRN245,250,TRN24# T=1.54,SILVER |
8 | ||
| 90080-52044 |
GRN245,250,TRN24# T=1.38,GREEN |
8 | ||
| 90080-52042 |
GRN245,250,TRN24# T=1.51,BLACK |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90080-52038 |
GRN245,250,TRN24# T=1.64,BLUE |
8 | ||
| 90080-52041 |
GRN245,250,TRN24# T=1.49,COPPER |
8 | ||
| 90080-52156 |
GRN245,250,TRN24# T=1.52 |
8 | ||
| 90080-52043 |
GRN245,250,TRN24# T=1.44,RED |
8 | ||
| 90080-52039 |
GRN245,250,TRN24# T=1.59,YELLOW |
8 | ||
| 90080-52040 |
GRN245,250,TRN24# T=1.54,SILVER |
8 | ||
| 90080-52044 |
GRN245,250,TRN24# T=1.38,GREEN |
8 | ||
| 90080-52042 |
GRN245,250,TRN24# T=1.51,BLACK |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90080-52038 |
GRN245,250,TRN24# T=1.64,BLUE |
8 | ||
| 90080-52041 |
GRN245,250,TRN24# T=1.49,COPPER |
8 | ||
| 90080-52156 |
GRN245,250,TRN24# T=1.52 |
8 | ||
| 90080-52043 |
GRN245,250,TRN24# T=1.44,RED |
8 | ||
| 90080-52039 |
GRN245,250,TRN24# T=1.59,YELLOW |
8 | ||
| 90080-52040 |
GRN245,250,TRN24# T=1.54,SILVER |
8 | ||
| 90080-52044 |
GRN245,250,TRN24# T=1.38,GREEN |
8 | ||
| 90080-52042 |
GRN245,250,TRN24# T=1.51,BLACK |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90080-52038 |
GRN245,250,TRN24# T=1.64,BLUE |
8 | ||
| 90080-52041 |
GRN245,250,TRN24# T=1.49,COPPER |
8 | ||
| 90080-52156 |
GRN245,250,TRN24# T=1.52 |
8 | ||
| 90080-52043 |
GRN245,250,TRN24# T=1.44,RED |
8 | ||
| 90080-52039 |
GRN245,250,TRN24# T=1.59,YELLOW |
8 | ||
| 90080-52040 |
GRN245,250,TRN24# T=1.54,SILVER |
8 | ||
| 90080-52044 |
GRN245,250,TRN24# T=1.38,GREEN |
8 | ||
| 90080-52042 |
GRN245,250,TRN24# T=1.51,BLACK |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90080-52038 |
GRN245,250,TRN24# T=1.64,BLUE |
8 | ||
| 90080-52041 |
GRN245,250,TRN24# T=1.49,COPPER |
8 | ||
| 90080-52156 |
GRN245,250,TRN24# T=1.52 |
8 | ||
| 90080-52043 |
GRN245,250,TRN24# T=1.44,RED |
8 | ||
| 90080-52039 |
GRN245,250,TRN24# T=1.59,YELLOW |
8 | ||
| 90080-52040 |
GRN245,250,TRN24# T=1.54,SILVER |
8 | ||
| 90080-52044 |
GRN245,250,TRN24# T=1.38,GREEN |
8 | ||
| 90080-52042 |
GRN245,250,TRN24# T=1.51,BLACK |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90080-52038 |
GRN245,250,TRN24# T=1.64,BLUE |
8 | ||
| 90080-52041 |
GRN245,250,TRN24# T=1.49,COPPER |
8 | ||
| 90080-52156 |
GRN245,250,TRN24# T=1.52 |
8 | ||
| 90080-52043 |
GRN245,250,TRN24# T=1.44,RED |
8 | ||
| 90080-52039 |
GRN245,250,TRN24# T=1.59,YELLOW |
8 | ||
| 90080-52040 |
GRN245,250,TRN24# T=1.54,SILVER |
8 | ||
| 90080-52044 |
GRN245,250,TRN24# T=1.38,GREEN |
8 | ||
| 90080-52042 |
GRN245,250,TRN24# T=1.51,BLACK |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90080-52038 |
GRN245,250,TRN24# T=1.64,BLUE |
8 | ||
| 90080-52041 |
GRN245,250,TRN24# T=1.49,COPPER |
8 | ||
| 90080-52156 |
GRN245,250,TRN24# T=1.52 |
8 | ||
| 90080-52043 |
GRN245,250,TRN24# T=1.44,RED |
8 | ||
| 90080-52039 |
GRN245,250,TRN24# T=1.59,YELLOW |
8 | ||
| 90080-52040 |
GRN245,250,TRN24# T=1.54,SILVER |
8 | ||
| 90080-52044 |
GRN245,250,TRN24# T=1.38,GREEN |
8 | ||
| 90080-52042 |
GRN245,250,TRN24# T=1.51,BLACK |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90080-52038 |
GRN245,250,TRN24# T=1.64,BLUE |
8 | ||
| 90080-52041 |
GRN245,250,TRN24# T=1.49,COPPER |
8 | ||
| 90080-52156 |
GRN245,250,TRN24# T=1.52 |
8 | ||
| 90080-52043 |
GRN245,250,TRN24# T=1.44,RED |
8 | ||
| 90080-52039 |
GRN245,250,TRN24# T=1.59,YELLOW |
8 | ||
| 90080-52040 |
GRN245,250,TRN24# T=1.54,SILVER |
8 | ||
| 90080-52044 |
GRN245,250,TRN24# T=1.38,GREEN |
8 | ||
| 90080-52042 |
GRN245,250,TRN24# T=1.51,BLACK |
8 | ||

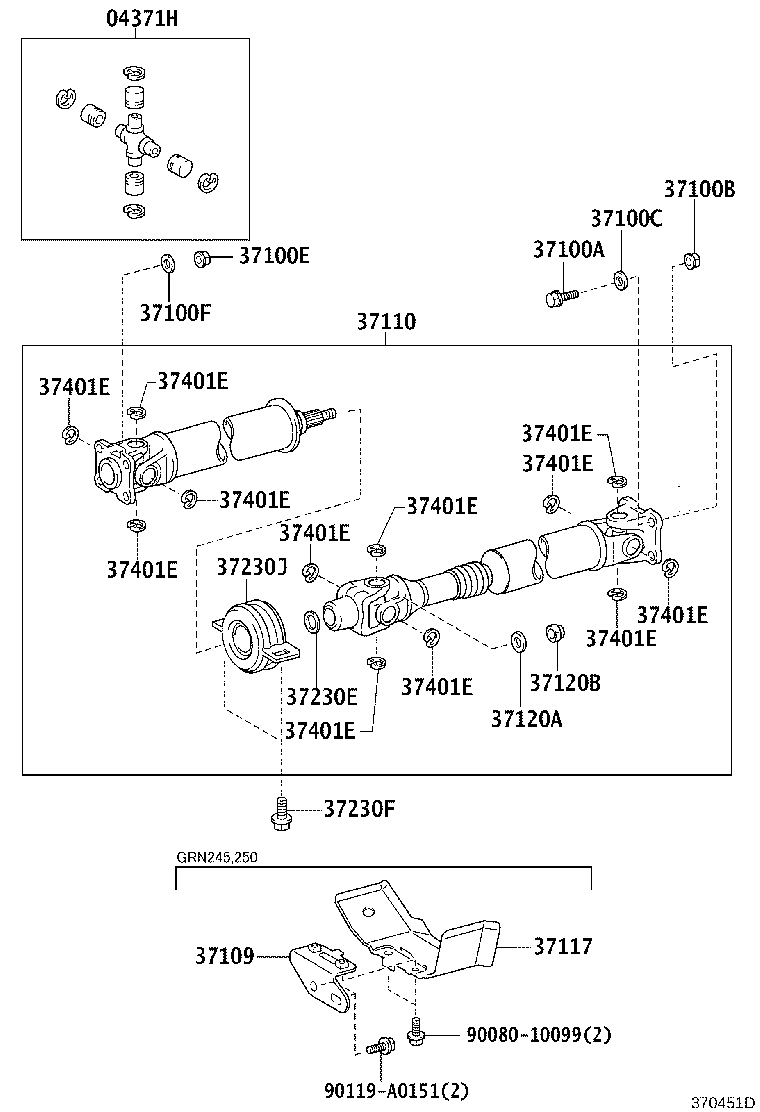

ILLUST NO. 2 OF 2(0409-1508)TRN265..4FC ; (0409-1508)GRN245,250,TRN245
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-0K080 |
GRN245,250,TRN245 |
3 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-A0075 |
GRN225,245,250,265,270,TRN22#,24#,26# |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-A0045 |
GRN225,245,250,265,270,TRN22#,24#,26# |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-11013 |
GRN225,245,250,265,270,TRN22#,24#,26# |
4 | ||
| 37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-A0045 |
GRN245,250,TRN24# |
4 | ||
| 37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-11013 |
GRN245,250,TRN24# |
4 | ||
| 37109 - BRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR, NO.1 | ||||
| 37109-04010 |
GRN245,250 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37100-04340 |
GRN245..5FC |
1 | ||
| 37117 - INSULATOR, PROPELLER SHAFT HEAT | ||||
| 37117-04010 |
GRN245,250 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90080-20048 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90080-17083 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90080-20049 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-A0175 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 37230J - BEARING ASSY, CENTER SUPPORT, NO.2 | ||||
| 37230-0K030 |
GRN245,250,TRN245 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52038 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.64,BLUE |
12 | ||
| 90080-52039 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.59,YELLOW |
12 | ||
| 90080-52043 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.44,RED |
12 | ||
| 90080-52040 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.54,SILVER |
12 | ||
| 90080-52044 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.38,GREEN |
12 | ||
| 90080-52156 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.52 |
12 | ||
| 90080-52041 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.49,COPPER |
12 | ||
| 90080-52042 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.51,BLACK |
12 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52038 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.64,BLUE |
12 | ||
| 90080-52039 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.59,YELLOW |
12 | ||
| 90080-52043 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.44,RED |
12 | ||
| 90080-52040 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.54,SILVER |
12 | ||
| 90080-52044 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.38,GREEN |
12 | ||
| 90080-52156 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.52 |
12 | ||
| 90080-52041 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.49,COPPER |
12 | ||
| 90080-52042 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.51,BLACK |
12 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52038 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.64,BLUE |
12 | ||
| 90080-52039 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.59,YELLOW |
12 | ||
| 90080-52043 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.44,RED |
12 | ||
| 90080-52040 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.54,SILVER |
12 | ||
| 90080-52044 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.38,GREEN |
12 | ||
| 90080-52156 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.52 |
12 | ||
| 90080-52041 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.49,COPPER |
12 | ||
| 90080-52042 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.51,BLACK |
12 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52038 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.64,BLUE |
12 | ||
| 90080-52039 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.59,YELLOW |
12 | ||
| 90080-52043 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.44,RED |
12 | ||
| 90080-52040 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.54,SILVER |
12 | ||
| 90080-52044 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.38,GREEN |
12 | ||
| 90080-52156 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.52 |
12 | ||
| 90080-52041 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.49,COPPER |
12 | ||
| 90080-52042 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.51,BLACK |
12 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52038 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.64,BLUE |
12 | ||
| 90080-52039 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.59,YELLOW |
12 | ||
| 90080-52043 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.44,RED |
12 | ||
| 90080-52040 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.54,SILVER |
12 | ||
| 90080-52044 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.38,GREEN |
12 | ||
| 90080-52156 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.52 |
12 | ||
| 90080-52041 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.49,COPPER |
12 | ||
| 90080-52042 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.51,BLACK |
12 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52038 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.64,BLUE |
12 | ||
| 90080-52039 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.59,YELLOW |
12 | ||
| 90080-52043 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.44,RED |
12 | ||
| 90080-52040 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.54,SILVER |
12 | ||
| 90080-52044 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.38,GREEN |
12 | ||
| 90080-52156 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.52 |
12 | ||
| 90080-52041 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.49,COPPER |
12 | ||
| 90080-52042 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.51,BLACK |
12 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52038 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.64,BLUE |
12 | ||
| 90080-52039 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.59,YELLOW |
12 | ||
| 90080-52043 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.44,RED |
12 | ||
| 90080-52040 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.54,SILVER |
12 | ||
| 90080-52044 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.38,GREEN |
12 | ||
| 90080-52156 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.52 |
12 | ||
| 90080-52041 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.49,COPPER |
12 | ||
| 90080-52042 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.51,BLACK |
12 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52038 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.64,BLUE |
12 | ||
| 90080-52039 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.59,YELLOW |
12 | ||
| 90080-52043 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.44,RED |
12 | ||
| 90080-52040 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.54,SILVER |
12 | ||
| 90080-52044 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.38,GREEN |
12 | ||
| 90080-52156 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.52 |
12 | ||
| 90080-52041 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.49,COPPER |
12 | ||
| 90080-52042 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.51,BLACK |
12 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52038 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.64,BLUE |
12 | ||
| 90080-52039 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.59,YELLOW |
12 | ||
| 90080-52043 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.44,RED |
12 | ||
| 90080-52040 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.54,SILVER |
12 | ||
| 90080-52044 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.38,GREEN |
12 | ||
| 90080-52156 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.52 |
12 | ||
| 90080-52041 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.49,COPPER |
12 | ||
| 90080-52042 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.51,BLACK |
12 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52038 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.64,BLUE |
12 | ||
| 90080-52039 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.59,YELLOW |
12 | ||
| 90080-52043 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.44,RED |
12 | ||
| 90080-52040 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.54,SILVER |
12 | ||
| 90080-52044 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.38,GREEN |
12 | ||
| 90080-52156 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.52 |
12 | ||
| 90080-52041 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.49,COPPER |
12 | ||
| 90080-52042 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.51,BLACK |
12 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52038 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.64,BLUE |
12 | ||
| 90080-52039 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.59,YELLOW |
12 | ||
| 90080-52043 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.44,RED |
12 | ||
| 90080-52040 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.54,SILVER |
12 | ||
| 90080-52044 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.38,GREEN |
12 | ||
| 90080-52156 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.52 |
12 | ||
| 90080-52041 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.49,COPPER |
12 | ||
| 90080-52042 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.51,BLACK |
12 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52038 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.64,BLUE |
12 | ||
| 90080-52039 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.59,YELLOW |
12 | ||
| 90080-52043 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.44,RED |
12 | ||
| 90080-52040 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.54,SILVER |
12 | ||
| 90080-52044 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.38,GREEN |
12 | ||
| 90080-52156 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.52 |
12 | ||
| 90080-52041 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.49,COPPER |
12 | ||
| 90080-52042 |
GRN225,245,250,265,270,TRN22#,245,26# T=1.51,BLACK |
12 | ||
| Common parts | ||||
| 90080-10099 | ||||
| 90119-A0151 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
