GRN245L-PRADKA (2004)

Toyota Tacoma

Production Sep 2004 - May 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409-1508)GRN245,250,TRN24#

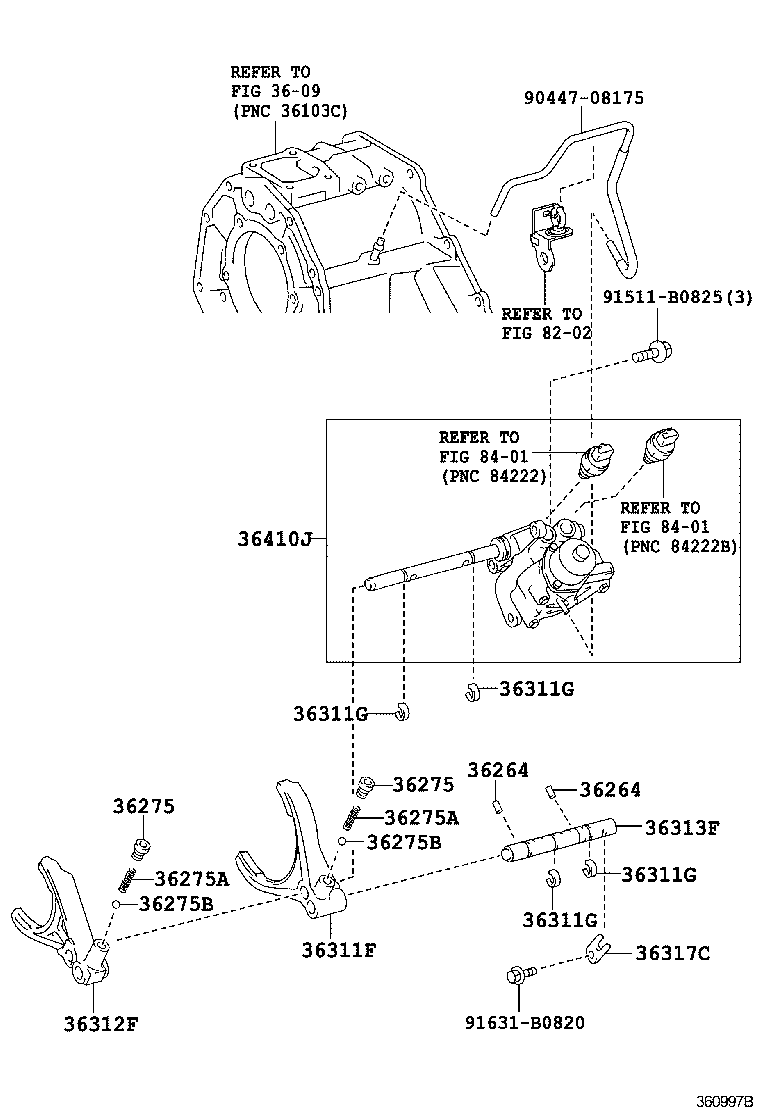

Click highlighted areas on diagram

diagram 3609 36264 36264 36275 36275 36275A 36275A 36275B 36275B 36311F 36311G 36311G 36311G 36311G 36312F 36313F 36317C 36410J 8202 8401 8401 9044708175 91511B0825 91631B0820
Part # Description Qty Price
36264 - PIN OR ROLLER, SHIFT INTER-LOCK
90250-06007

GRN245,250,TRN24#

L=8.6,OD=6

 2
36264 - PIN OR ROLLER, SHIFT INTER-LOCK
90250-06007

GRN245,250,TRN24#

L=8.6,OD=6

 2
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-12014

GRN245,250,TRN24#

 2
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-12014

GRN245,250,TRN24#

 2
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-18091

GRN245,250,TRN24#

L=20.8

 2
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-18091

GRN245,250,TRN24#

L=20.8

 2
36275B - BALL, SHIFT DETENT
90360-10003

GRN245,250,TRN24#

OD=9.52,STEEL

 2
36275B - BALL, SHIFT DETENT
90360-10003

GRN245,250,TRN24#

OD=9.52,STEEL

 2
36311F - FORK, TRANSFER GEAR SHIFT, NO.1
36311-34010

GRN245,250,TRN24#

 1
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13002

GRN245,250,TRN24#

 4
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13002

GRN245,250,TRN24#

 4
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13002

GRN245,250,TRN24#

 4
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13002

GRN245,250,TRN24#

 4
36312F - FORK, TRANSFER GEAR SHIFT, NO.2
36312-34010

GRN245,250,TRN24#

 1
36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36313-34011

GRN245,250,TRN24#

 1
36317C - STOPPER, TRANSFER SHIFT SHAFT
36317-35041

GRN245,250,TRN24#

 1
36410J - ACTUATOR ASSY, TRANSFER SHIFT
36410-34015

GRN245,250,TRN24#

 1
36410-34014

GRN245,250,TRN24#

 1
Common parts
90447-08175
91511-B0825
91631-B0820
Linked diagrams
3609
8202
8401
