GRN245L-PRADKA (2004)

Toyota Tacoma

Production Sep 2004 - May 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409-0901)1GRFE

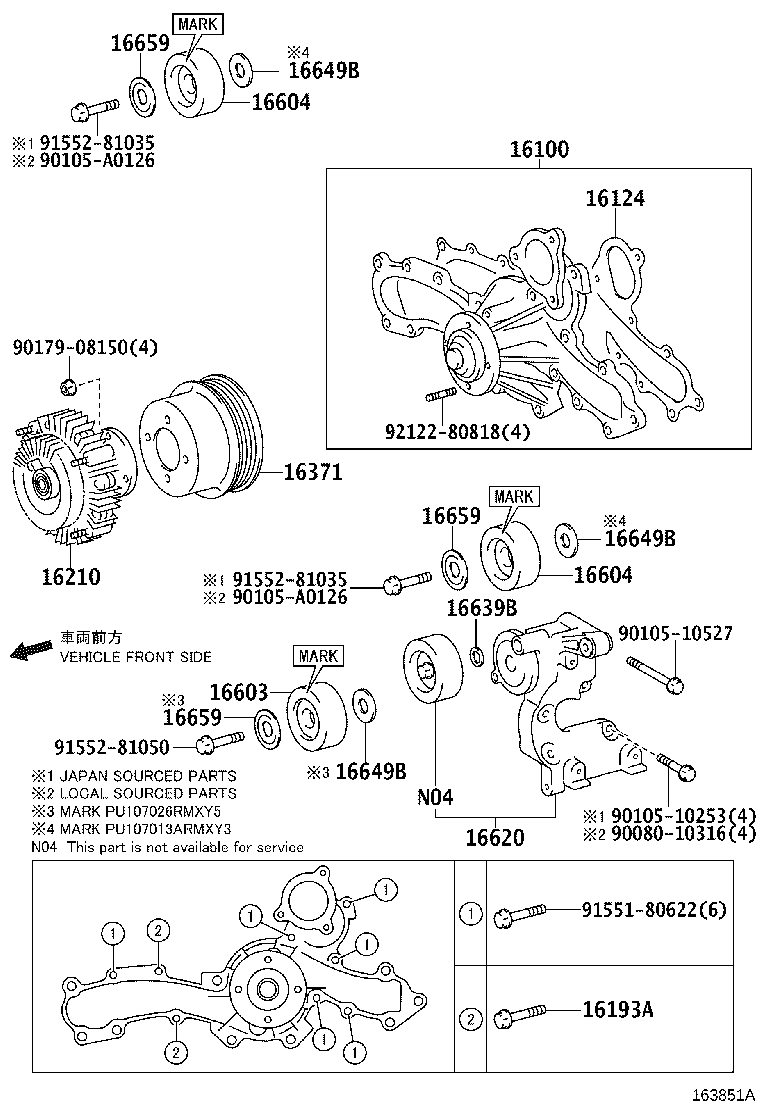

Click highlighted areas on diagram

diagram 16100 16124 16193A 16210 16371 16603 16604 16604 16620 16639B 16649B 16649B 16649B 16659 16659 16659 9008010316 9010510253 9010510527 90105A0126 90105A0126 9017908150 9155180622 9155281035 9155281035 9155281050 9212280818
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09470

1GRFE..GRN225,245,250,265,270

 1
16100-39405

1GRFE..GRN225,245,250,265,270

 1
16124 - GASKET, WATER PUMP COVER
16124-31070

1GRFE..GRN225,245,250,265,270

(J)

 1
16124-0P030

1GRFE..GRN225,245,250,265,270

(L)

 1
16193A - BOLT(FOR WATER PUMP COVER)
16193-31080

1GRFE..GRN225,245,250,265,270

 2
16210 - COUPLING ASSY, FLUID
16210-31020

1GRFE..GRN225,245,250,265,270

(J)

 1
16210-0P010

1GRFE..GRN225,245,250,265,270

(L)

 1
16371 - PULLEY, FAN
16371-31040

1GRFE..GRN225,245,250,265,270

(J)

 1
16371-0P010

1GRFE..GRN225,245,250,265,270

(L)

 1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-0P010

1GRFE..GRN225,245,250,265,270

PU107026RMXY5,(L)

 1
16603-31040

1GRFE..GRN225,245,250,265,270

PU107029RMXY,(J)

 1
16603-0P020

1GRFE..GRN225,245,250,265,270

PU107029RMXY,(L)

 1
16603-31030

1GRFE..GRN225,245,250,265,270

PU107026RMXY5,(J)

 1
16603-31050

1GRFE..GRN225,245,250,265,270

 1
16604 - PULLEY SUB-ASSY, IDLER, NO.2
16604-31010

1GRFE..GRN225,245,250,265,270

PU107013ARMXY1,(J)

 2
16604-31020

1GRFE..GRN225,245,250,265,270

MARK=PU107013ARMXY3

 2
16604-0P010

1GRFE..GRN225,245,250,265,270

PU107013ARMXY1,(L)

 2
16604 - PULLEY SUB-ASSY, IDLER, NO.2
16604-31010

1GRFE..GRN225,245,250,265,270

PU107013ARMXY1,(J)

 2
16604-31020

1GRFE..GRN225,245,250,265,270

MARK=PU107013ARMXY3

 2
16604-0P010

1GRFE..GRN225,245,250,265,270

PU107013ARMXY1,(L)

 2
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-31012

1GRFE..GRN225,245,250,265,270

 1
16639B - SPACER, IDLER PULLEY
16639-31010

1GRFE..GRN225,245,250,265,270

 1
16649B - PLATE, IDLER PULLEY COVER
16649-31020

1GRFE..GRN225,245,250,265,270

 2
16649-31010

1GRFE..GRN225,245,250,265,270

 1
16649B - PLATE, IDLER PULLEY COVER
16649-31020

1GRFE..GRN225,245,250,265,270

 2
16649-31010

1GRFE..GRN225,245,250,265,270

 1
16649B - PLATE, IDLER PULLEY COVER
16649-31020

1GRFE..GRN225,245,250,265,270

 2
16649-31010

1GRFE..GRN225,245,250,265,270

 1
16659 - PLATE, IDLER PULLEY COVER, NO.2
16659-31011

1GRFE..GRN225,245,250,265,270

(J)

 3
16659-AD010

1GRFE..GRN225,245,250,265,270

(L)

 2
16659-31011

1GRFE..GRN225,245,250,265,270

(J)

 2
16659-AD010

1GRFE..GRN225,245,250,265,270

(L)

 3
16659 - PLATE, IDLER PULLEY COVER, NO.2
16659-31011

1GRFE..GRN225,245,250,265,270

(J)

 3
16659-AD010

1GRFE..GRN225,245,250,265,270

(L)

 2
16659-31011

1GRFE..GRN225,245,250,265,270

(J)

 2
16659-AD010

1GRFE..GRN225,245,250,265,270

(L)

 3
16659 - PLATE, IDLER PULLEY COVER, NO.2
16659-31011

1GRFE..GRN225,245,250,265,270

(J)

 3
16659-AD010

1GRFE..GRN225,245,250,265,270

(L)

 2
16659-31011

1GRFE..GRN225,245,250,265,270

(J)

 2
16659-AD010

1GRFE..GRN225,245,250,265,270

(L)

 3
Common parts
90080-10316
90105-10253
90105-10527
90105-A0126
90179-08150
91551-80622
91552-81035
91552-81050
92122-80818
