GRN245L-PRADKA (2004)

Toyota Tacoma

Production Sep 2004 - May 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409-1302)1GRFE

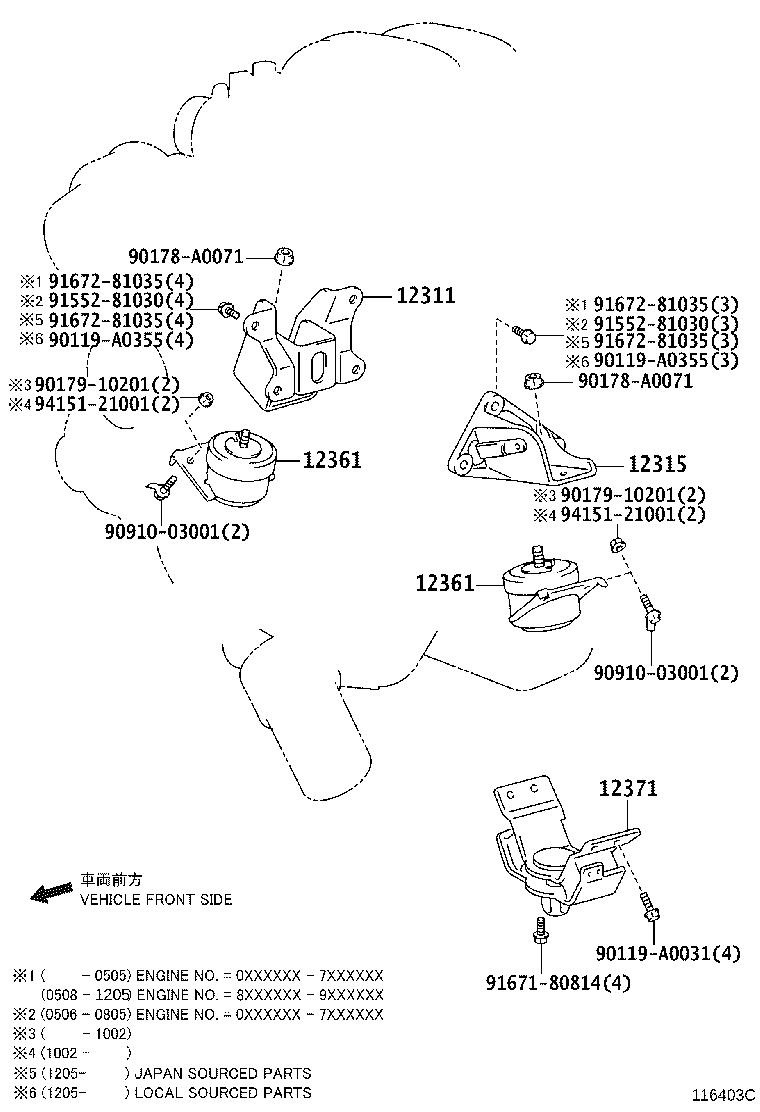

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 90119A0031 90119A0355 90119A0355 90178A0071 90178A0071 9017910201 9017910201 9091003001 9091003001 9155281030 9155281030 9167180814 9167281035 9167281035 9167281035 9167281035 9415121001 9415121001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-AD010

1GRFE..GRN225,245,250,265,270

(L)

 1
12311-31021

1GRFE..GRN225,245,250,265,270

(J)

 1
12311-31020

1GRFE..GRN225,245,250,265,270

(J)

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31050

1GRFE..GRN225,245,250,265,270

 1
12315-31051

1GRFE..GRN225,245,250,265,270

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31120

1GRFE..GRN225,245,250,265,270

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31120

1GRFE..GRN225,245,250,265,270

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-0P040

1GRFE..GRN245,250

 1
Common parts
90119-A0031
90119-A0355
90178-A0071
90179-10201
90910-03001
91552-81030
91671-80814
91672-81035
94151-21001
