GRN245L-CRADKA (2011)
Toyota Tacoma
ILLUST NO. 1 OF 2(0409-1508)
FRONT SEAT - SEPARATE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 66992-04012 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC RH |
1 | ||
| 66991-04012 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC LH |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 66992-04012 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC RH |
1 | ||
| 66991-04012 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC LH |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 66992-04012 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC RH |
1 | ||
| 66991-04012 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC LH |
1 | ||
| 55625B - TRAY, INSTRUMENT PANEL CUP HOLDER | ||||
| 55625-AD010B1 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC DK.GRAY,TRIM1#,4# |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-04010 |
GRN245,265..LCB..5FC SPORT PACKAGE |
1 | ||
| 58805-04010 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC SR5 PACKAGE |
1 | ||
| 58805-04010 |
GRN245,265..LCB..5FC WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 58805-04020 |
GRN245,TRN225,245..5F,6F SR5 PACKAGE |
1 | ||
| 58805-AD030 |
GRN245,TRN225,245..5F,6F |
1 | ||
| 58805-04010 |
GRN245,265..5FC TRD-PRO PACKAGE |
1 | ||
| 58805-AD010 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-04010 |
GRN245,265..LCB..5FC SPORT PACKAGE |
1 | ||
| 58805-04010 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC SR5 PACKAGE |
1 | ||
| 58805-04010 |
GRN245,265..LCB..5FC WITH(*FTP & *EUC:PNC51405A & 51406A) |
1 | ||
| 58805-04020 |
GRN245,TRN225,245..5F,6F SR5 PACKAGE |
1 | ||
| 58805-AD030 |
GRN245,TRN225,245..5F,6F |
1 | ||
| 58805-04010 |
GRN245,265..5FC TRD-PRO PACKAGE |
1 | ||
| 58805-AD010 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58810-AD011B4 |
GRN245,TRN225,245..5F,6F DK.GRAY,TRIM1#,4# |
1 | ||
| 58811-AD010B1 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC DK.GRAY,TRIM1#,4# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58810-AD011B4 |
GRN245,TRN225,245..5F,6F DK.GRAY,TRIM1#,4# |
1 | ||
| 58811-AD010B1 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC DK.GRAY,TRIM1#,4# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-AD010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-AD020B1 |
GRN245,250,265,270,TRN225,245,265 DK.GRAY,TRIM1#,4# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-AD010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-AD020B1 |
GRN225,245,250,265,270,TRN225,245,265 DK.GRAY,TRIM1#,4# |
1 | ||
| 58908-AD021B1 |
GRN225,245,250,265,270,TRN225,245,265 DK.GRAY,TRIM1#,4# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-AD031B1 |
GRN245,TRN225,245..5F,6F DK.GRAY,TRIM1#,4# |
1 | ||
| 58910-04010B1 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC DK.GRAY,TRIM1#,4# |
1 | ||
| 58916 - MAT, BOX BOTTOM | ||||
| 58916-AD020 |
GRN245,250,265,270,TRN225,245,265..4FC,5FC |
1 | ||
| 58991D - BRACKET, CONSOLE BOX MOUNTING, UPR RH | ||||
| 58991-AD010 |
GRN225,245,TRN225,245..5F,6F |
1 | ||
| 58992A - BRACKET, CONSOLE BOX MOUNTING, UPR LH | ||||
| 58992-AD010 |
GRN225,245,TRN225,245..5F,6F |
1 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-AD020 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| Common parts | ||||
| 90080-11220 | ||||
| 90080-11353 | ||||
| 90159-50002 | ||||
| 90164-40103 | ||||
| 90467-A0011 | ||||
| 90468-05135 | ||||
| 93530-54010 | ||||
| 93568-55014 | ||||

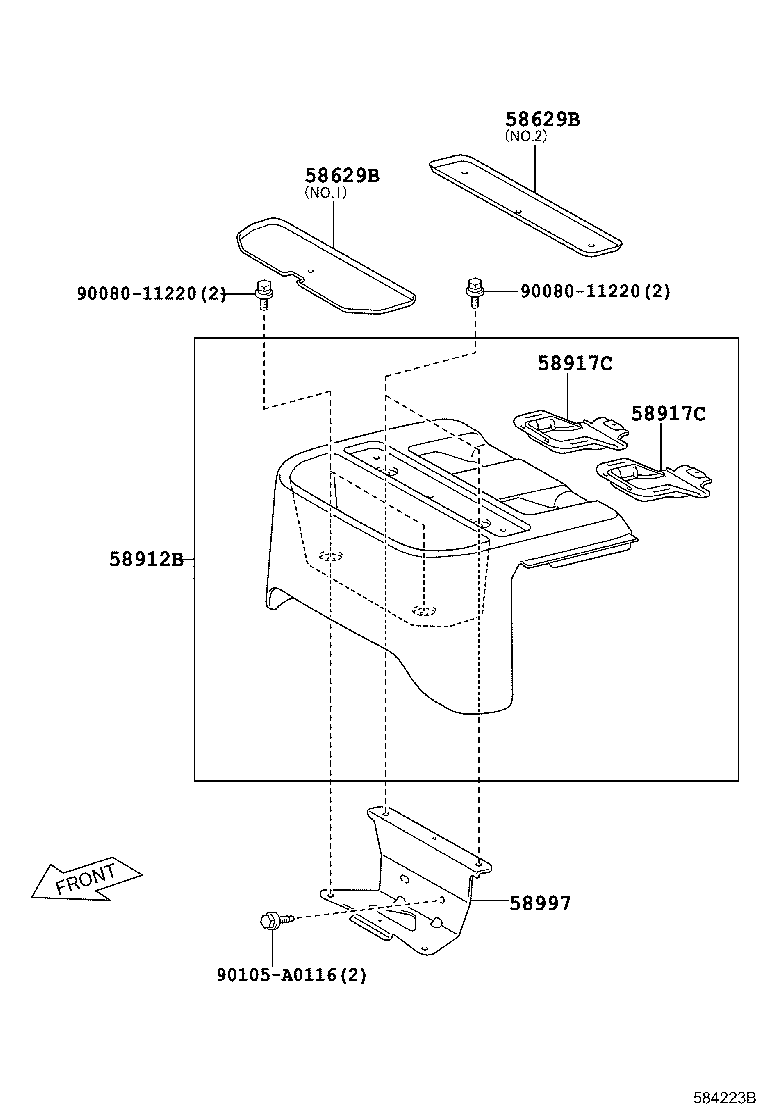

ILLUST NO. 2 OF 2(1109- )LCB
REAR SEAT CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58629B - MAT, CENTER CONSOLE | ||||
| 58629-04010 |
TRN225,245,265..LCB B-MAX PACKAGE,NO.1 |
1 | ||
| 58629-04020 |
GRN225,245,265,TRN225,245,265..LCB NO.2 |
1 | ||
| 58629-04010 |
GRN225,245,265,TRN225,245,265..LCB NO.1 |
1 | ||
| 58629B - MAT, CENTER CONSOLE | ||||
| 58629-04010 |
TRN225,245,265..LCB B-MAX PACKAGE,NO.1 |
1 | ||
| 58629-04020 |
GRN225,245,265,TRN225,245,265..LCB NO.2 |
1 | ||
| 58629-04010 |
GRN225,245,265,TRN225,245,265..LCB NO.1 |
1 | ||
| 58912B - BOX, REAR CONSOLE, LOWER | ||||
| 58912-04030B1 |
TRN225,245,265..LCB B-MAX PACKAGE,DK.GRAY,TRIM1#,4# |
1 | ||
| 58912-04030B1 |
GRN245,265,TRN225,245,265..LCB DK.GRAY,TRIM1#,4# |
1 | ||
| 58917C - MAT, BOX BOTTOM, NO.2 | ||||
| 58917-04030 |
TRN225,245,265..LCB B-MAX PACKAGE |
2 | ||
| 58917-04030 |
GRN225,245,265,TRN225,245,265..LCB |
2 | ||
| 58917C - MAT, BOX BOTTOM, NO.2 | ||||
| 58917-04030 |
TRN225,245,265..LCB B-MAX PACKAGE |
2 | ||
| 58917-04030 |
GRN225,245,265,TRN225,245,265..LCB |
2 | ||
| 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 | ||||
| 58997-04010 |
TRN225,245,265..LCB B-MAX PACKAGE |
1 | ||
| 58997-04010 |
GRN225,245,265,TRN225,245,265..LCB |
1 | ||
| Common parts | ||||
| 90080-11220 | ||||
| 90105-A0116 | ||||
