GRN245L-CRADKA (2008)

Toyota Tacoma

Production May 2008 - Sep 2011
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )1GRFE

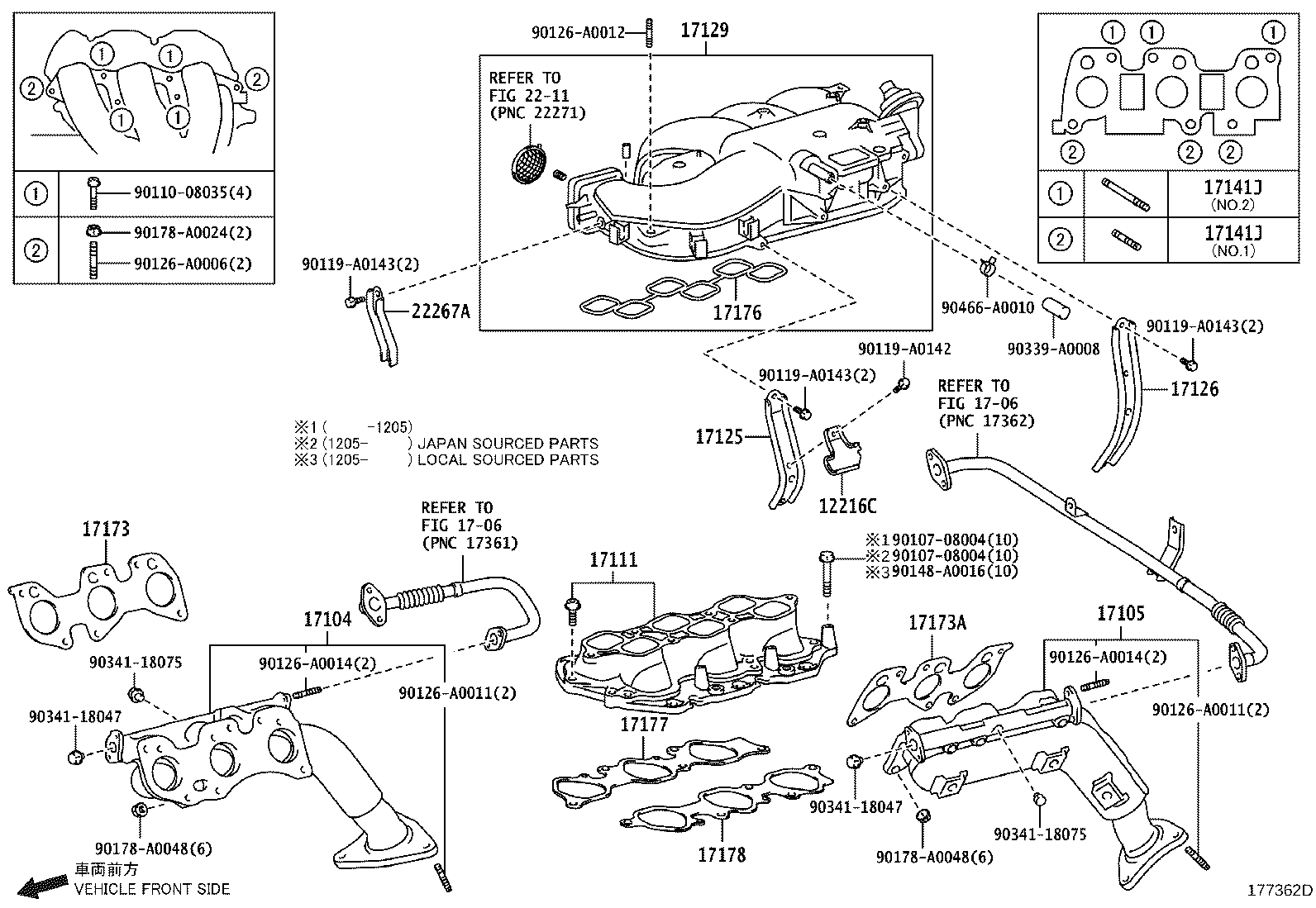

Click highlighted areas on diagram

W(AIR INJECTION SYSTEM)

diagram 12216C 1706 1706 17104 17105 17111 17125 17126 17129 17141J 17141J 17173 17173A 17176 17177 17178 2211 22267A 9010708004 9010708004 9011008035 90119A0142 90119A0143 90119A0143 90119A0143 90126A0006 90126A0011 90126A0011 90126A0012 90126A0014 90126A0014 90148A0016 90178A0024 90178A0048 90178A0048 90339A0008 9034118047 9034118047 9034118075 9034118075 90466A0010
Part # Description Qty Price
12216C - PLATE, OIL BAFFLE
12216-0P010

1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270

 1
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-0P140

1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-0P140

1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270

 1
17111 - MANIFOLD, INTAKE
17101-0P010

1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270

 1
17125 - STAY, SURGE TANK, NO.1
17125-0P010

1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270

 1
17126 - STAY, SURGE TANK, NO.2
17126-0P010

1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270

 1
17129 - TANK, INTAKE AIR SURGE
17109-0P011

1GRFE..GRN225,245,250,265,270

 1
17109-0P011

1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-08052

1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270

 12
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-08052

1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270

 12
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0P010

1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-0P010

1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-0P010

1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-AD010

1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270

 1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-AD010

1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270

 1
22267A - BRACKET, THROTTLE BODY
22267-0P010

1GRFE..GRN265..5FC;1GRFE..GRN225,245,250,270

 1
Common parts
90107-08004
90110-08035
90119-A0142
90119-A0143
90126-A0006
90126-A0011
90126-A0012
90126-A0014
90148-A0016
90178-A0024
90178-A0048
90339-A0008
90341-18047
90341-18075
90466-A0010
Linked diagrams
1706
2211
