GRN225L-CRFDKA (2011)

Toyota Tacoma

Production Sep 2011 - Aug 2015
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1109-1508)GRN225,TRN225..LCB

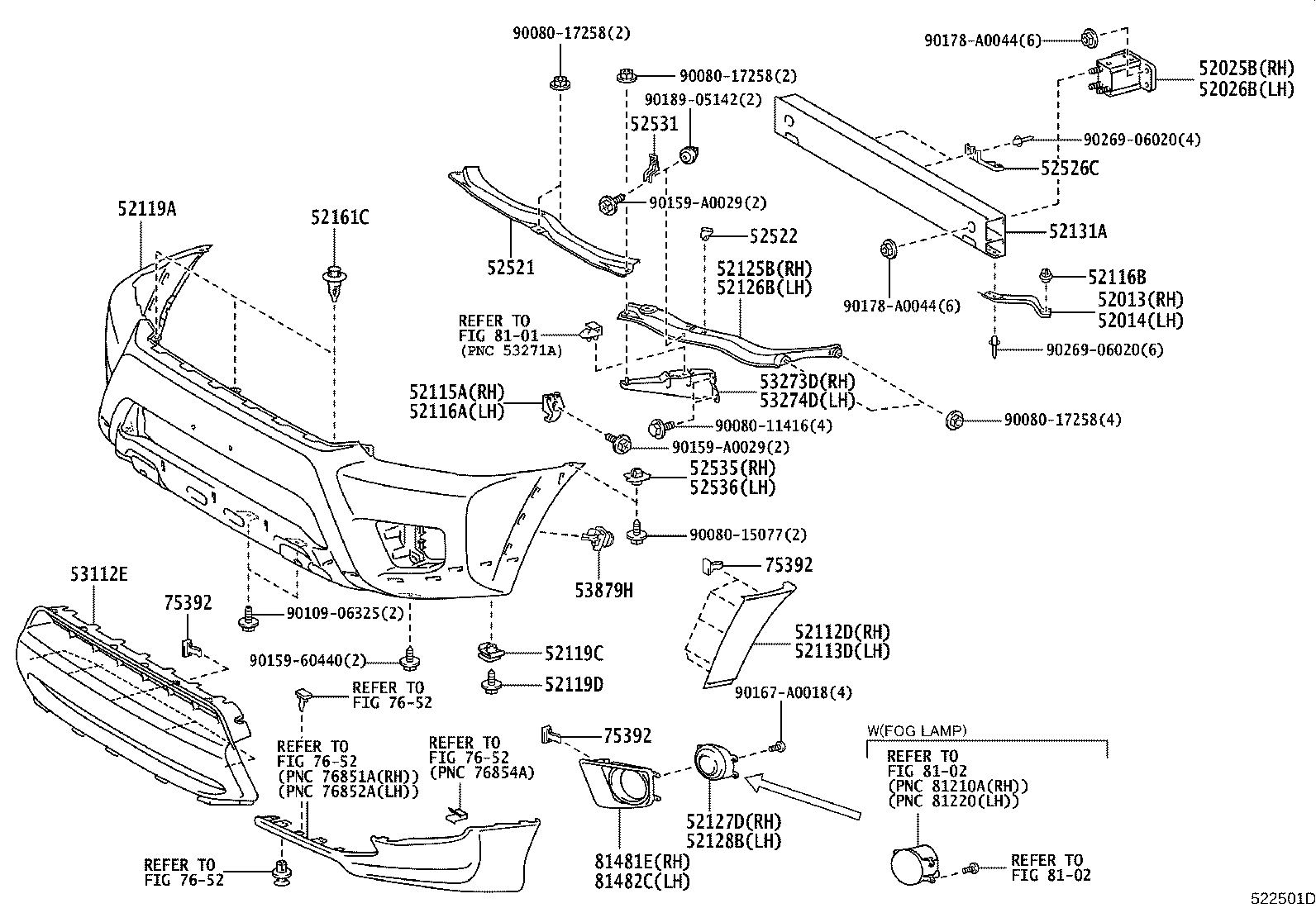

Click highlighted areas on diagram

W(FRONT SPOILER)

diagram 52013 52014 52025B 52026B 52112D 52113D 52115A 52116A 52116B 52119A 52119C 52119D 52125B 52126B 52127D 52128B 52131A 52161C 52521 52522 52526C 52531 52535 52536 53112E 53273D 53274D 53879H 75392 75392 75392 7652 7652 7652 7652 8101 8102 8102 81481E 81482C 9008011416 9008015077 9008017258 9008017258 9008017258 9010906325 9015960440 90159A0029 90159A0029 90167A0018 90178A0044 90178A0044 9018905142 9026906020 9026906020
Part # Description Qty Price
52013 - ARM SUB-ASSY, FRONT BUMPER, INNER RH
52013-04010

GRN225

 1
52014 - ARM SUB-ASSY, FRONT BUMPER, INNER LH
52014-04010

GRN225

 1
52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH
52025-04010

GRN225,245,250,265,270,TRN225,245,265

 1
52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH
52026-04010

GRN225,245,250,265,270,TRN225,245,265

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-04905

GRN225

PAINT REQ.

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-04906

GRN225

PAINT REQ.

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-04060

GRN225,245,250,265,270,TRN225,245,265

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-04060

GRN225,245,250,265,270,TRN225,245,265

 1
52116B - RETAINER, FRONT BUMPER
52116-04060

GRN225,245,250,265,270,TRN225,245,265

 2
52119A - COVER, FRONT BUMPER
52119-04906

GRN225

PAINT REQ.

 1
52119C - CLIP, FRONT BUMPER COVER
90467-05138

GRN225,245,250,265,270,TRN22#,24#,265

 2
52119D - SCREW, NO.1
90159-A0008

GRN225,245,250,265,270,TRN22#,24#,265

 2
90080-15094

GRN225,245,250,265,270,TRN22#,24#,265

 2
52125B - EXTENSION, FRONT BUMPER REINFORCEMENT, RH
52125-04020

GRN225,245,250,265,270,TRN225,245,265

 1
52126B - EXTENSION, FRONT BUMPER REINFORCEMENT, LH
52126-04020

GRN225,245,250,265,270,TRN225,245,265

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-04030

GRN225,245,250,265,270,TRN225,245,265

 1
52161C - PIECE, FRONT BUMPER
52161-02020

GRN225,245,250,265,270,TRN225,245,265

 3
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-04050

GRN225,245,250,265,270,TRN225,245,265

 1
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-04010

GRN225,245,250,265,270,TRN225,245,265

 2
52526C - RETAINER, FRONT BUMPER, LOWER
52525-04020

GRN225,245,250,265,270,TRN225,245,265

 2
52531 - RETAINER, BUMPER FILLER
52531-04010

GRN225,245,250,265,270,TRN225,245,265

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-48020

GRN225,245,250,265,270,TRN225,245,265

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52535-48020

GRN225,245,250,265,270,TRN225,245,265

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-04040

GRN225

NO PAINT REQ.

 1
53273D - BRACKET, FRONT BUMPER ARM MOUNTING, RH
53273-04030

GRN225,245,250,265,270,TRN225,245,265

 1
53274D - BRACKET, FRONT BUMPER ARM MOUNTING, LH
53274-04030

GRN225,245,250,265,270,TRN225,245,265

 1
53879H - RETAINER, FRONT FENDER LINER
53879-28010

GRN225,245,250,265,270,TRN225,245,265

 2
75392 - RETAINER, OUTSIDE MOULDING
75392-04010

GRN225

 10
75392 - RETAINER, OUTSIDE MOULDING
75392-04010

GRN225

 10
75392 - RETAINER, OUTSIDE MOULDING
75392-04010

GRN225

 10
81481E - COVER, FOG LAMP, RH
81481-04020

GRN225,245,250,265,270,TRN225,245,265

 1
81482C - COVER, FOG LAMP, LH
81482-04020

GRN225,245,250,265,270,TRN225,245,265

 1
Common parts
90080-11416
90080-15077
90080-17258
90109-06325
90159-60440
90159-A0029
90167-A0018
90178-A0044
90189-05142
90269-06020
Linked diagrams
7652
8101
8102
