VCK21L-TRSSKK (1994)

Toyota T100

Production Aug 1994 - Aug 1995
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9408- )

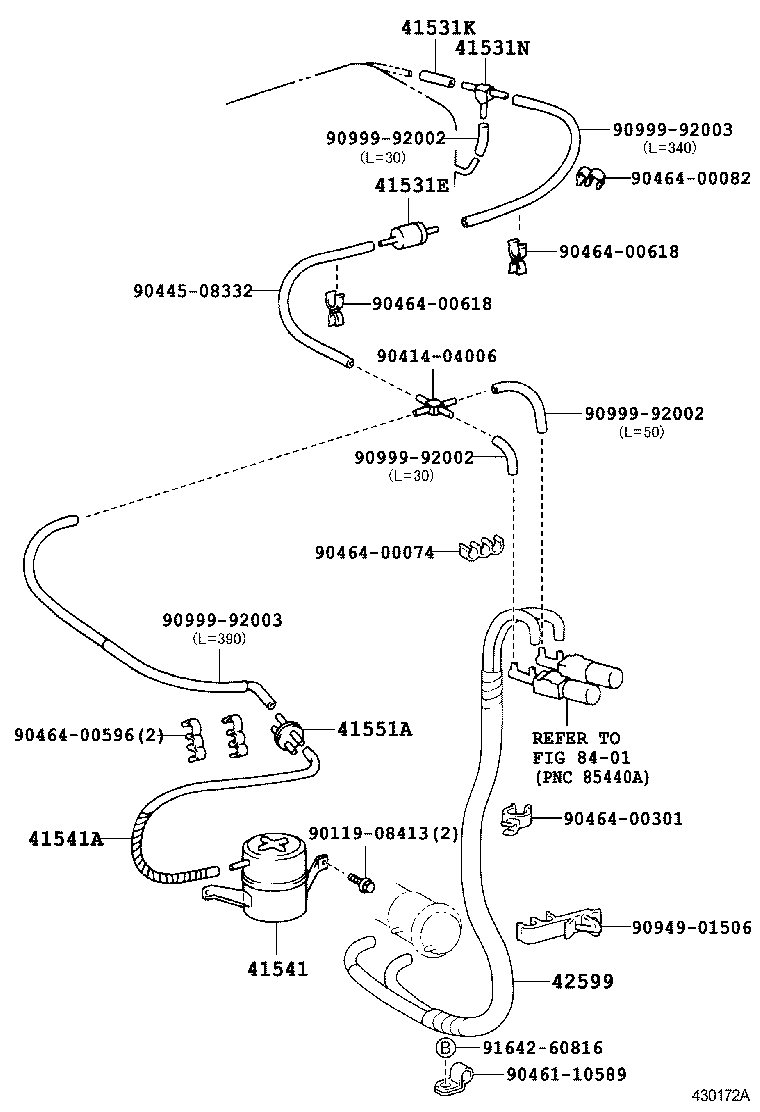

Click highlighted areas on diagram

A.D.D

diagram 41531E 41531K 41531N 41541 41541A 41551A 42599 8401 9011908413 9041404006 9044508332 9046110589 9046400074 9046400082 9046400301 9046400596 9046400618 9046400618 9094901506 9099992002 9099992002 9099992002 9099992003 9099992003 9164260816
Part # Description Qty Price
41531E - VALVE, CHECK(FOR FRONT DIFFERENTIAL VACUUM)
90917-10065

VCK2#

 1
41531K - HOSE, FRONT DIFFERENTIAL VACUUM, NO.5
90999-92002

VCK21

*H,L=40,MARK=#*

 1
41541 - TANK, DIFFERENTIAL VACUUM
41541-34020

VCK21

 1
41551A - GROMMET, FRONT DIFFERENTIAL VACUUM
41551-35010

VCK2#

 1
42599 - HOSE, VACUUM DISCONNECTING DIFFERENTIAL
42599-34020

VCK21

 1
Common parts
90119-08413
90414-04006
90445-08332
90461-10589
90464-00074
90464-00082
90464-00301
90464-00596
90464-00618
90949-01506
90999-92002
90999-92003
91642-60816
Linked diagrams
8401
