VCK21L-TRSDKK (1994)

Toyota T100

Production Aug 1994 - Aug 1996
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9408- )5VZFE

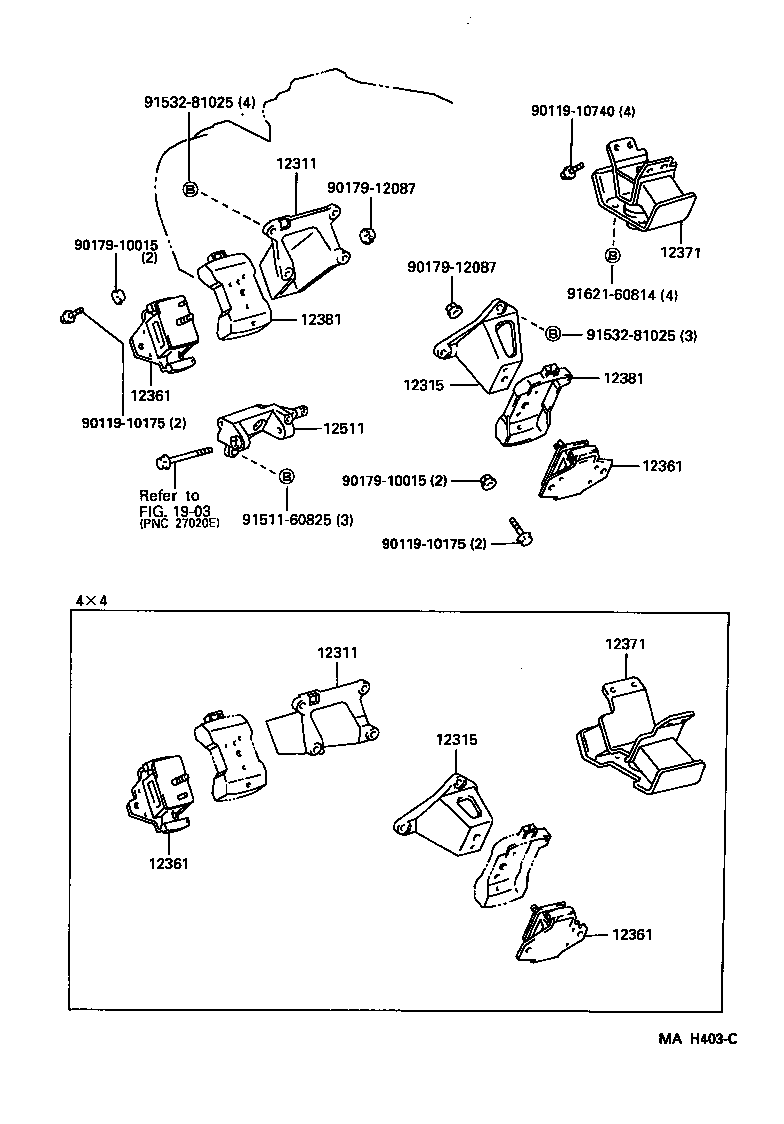

Click highlighted areas on diagram

diagram 12311 12311 12315 12315 12361 12361 12361 12361 12371 12371 12381 12381 12511 1903 9011910175 9011910175 9011910740 9017910015 9017910015 9017912087 9017912087 9151160825 9153281025 9153281025 9162160814
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-65020

3VZE,5VZFE..VCK2#

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-65020

3VZE,5VZFE..VCK2#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-65020

3VZE,5VZFE..VCK2#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-65020

3VZE,5VZFE..VCK2#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-65030

3VZE,5VZFE..VCK2#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-65030

3VZE,5VZFE..VCK2#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-65030

3VZE,5VZFE..VCK2#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-65030

3VZE,5VZFE..VCK2#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-62100

5VZFE..VCK21..ATM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-62100

5VZFE..VCK21..ATM

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-65030

3VZE,5VZFE..VCK1#,2#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-65030

3VZE,5VZFE..VCK1#,2#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-62010

5VZFE..VCK11,21

 1
Common parts
90119-10175
90119-10740
90179-10015
90179-12087
91511-60825
91532-81025
91621-60814
Linked diagrams
1903
