VCK21L-TRSDKA (1994)
Toyota T100

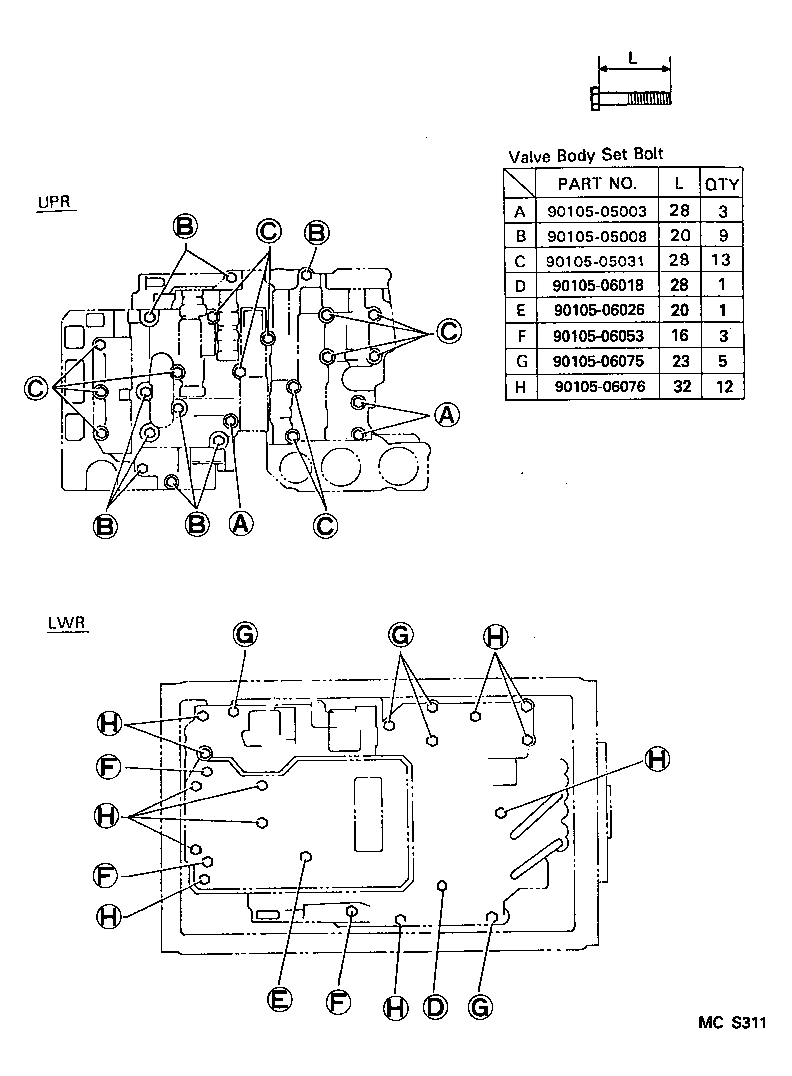

ILLUST NO. 4 OF 4(9408- )VCK21..ATM
A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05003 | ||||
| 90105-05008 | ||||
| 90105-05031 | ||||
| 90105-06018 | ||||
| 90105-06026 | ||||
| 90105-06053 | ||||
| 90105-06075 | ||||
| 90105-06076 | ||||

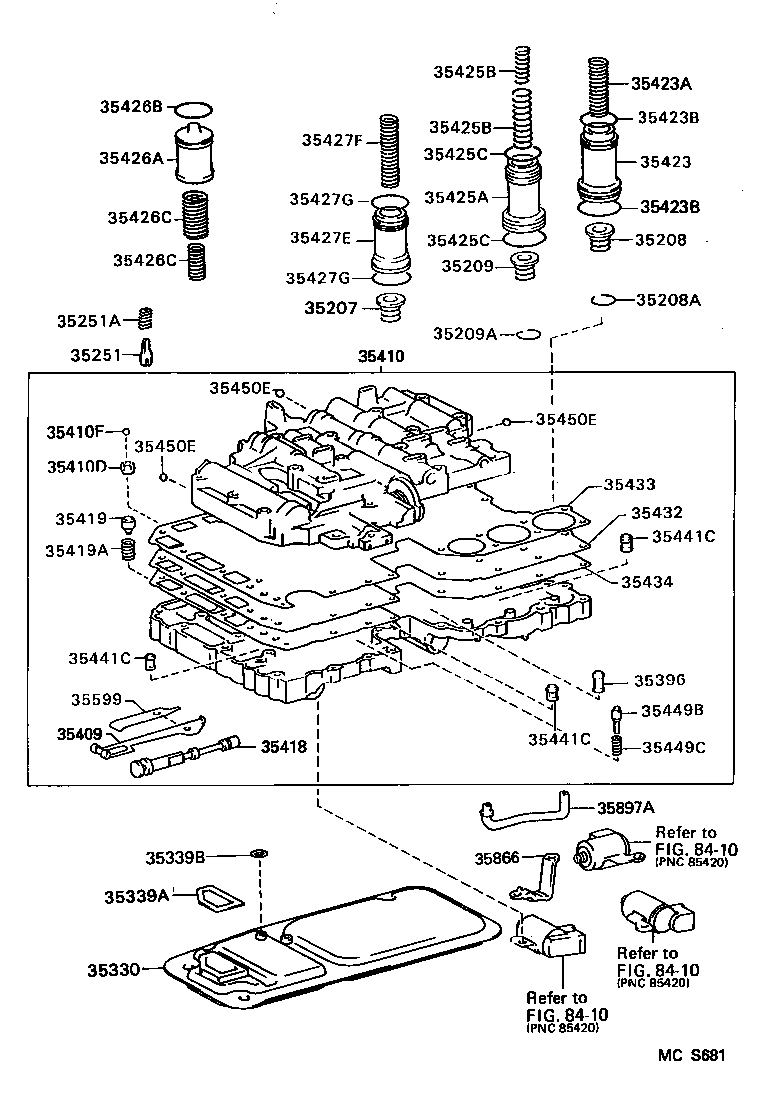

ILLUST NO. 1 OF 4(9408- )VCK21..ATM
A340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-30010 |
RCK10,VCK11,2#..ATM |
1 | ||
| 35207-22010 |
RCK10,VCK11,21..ATM |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-22010 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35208-22010 |
VCK11,21..ATM |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-30010 |
RCK10,VCK11,21..ATM |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-60020 |
VCK21..ATM |
1 | ||
| 35330-22010 |
VCK21..ATM |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30070 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35339B - GASKET, OIL STRAINER, NO.2 | ||||
| 90430-10010 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35396 - STRAINER, THROTTLE OIL | ||||
| 35396-30010 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-22020 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-35321 |
VCK21..ATM |
1 | ||
| 35410-35450 |
VCK21..ATM |
1 | ||
| 35410-35320 |
VCK21..ATM |
1 | ||
| 35410D - VALVE, CHECK | ||||
| 90917-10073 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35410F - BALL (FOR CHECK VALVE) | ||||
| 90360-06004 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30070 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-12030 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-11039 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-27019 |
VCK11,21..ATM |
1 | ||
| 90501-27019 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
RCK10,VCK1#,2#..ATM UPPER |
1 | ||
| 90301-31002 |
RCK10,VCK1#,2#..ATM LOWER |
1 | ||
| 90301-31010 |
VCK21..ATM LOWER |
1 | ||
| 90301-23010 |
VCK21..ATM UPPER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
RCK10,VCK1#,2#..ATM UPPER |
1 | ||
| 90301-31002 |
RCK10,VCK1#,2#..ATM LOWER |
1 | ||
| 90301-31010 |
VCK21..ATM LOWER |
1 | ||
| 90301-23010 |
VCK21..ATM UPPER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-30020 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25027 |
RCK10,VCK11,2#..ATM INNER |
1 | ||
| 90501-21008 |
VCK11,21..ATM OUTER |
1 | ||
| 90501-22016 |
VCK11,21..ATM OUTER |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25027 |
RCK10,VCK11,2#..ATM INNER |
1 | ||
| 90501-21008 |
VCK11,21..ATM OUTER |
1 | ||
| 90501-22016 |
VCK11,21..ATM OUTER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25003 |
RCK10,VCK1#,2#..ATM UPPER |
1 | ||
| 90301-25010 |
VCK21..ATM UPPER |
1 | ||
| 90301-31010 |
VCK21..ATM LOWER |
1 | ||
| 90301-31002 |
RCK10,VCK1#,2#..ATM LOWER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25003 |
RCK10,VCK1#,2#..ATM UPPER |
1 | ||
| 90301-25010 |
VCK21..ATM UPPER |
1 | ||
| 90301-31010 |
VCK21..ATM LOWER |
1 | ||
| 90301-31002 |
RCK10,VCK1#,2#..ATM LOWER |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-40010 |
VCK2#..ATM |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24001 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 90301-24010 |
VCK21..ATM |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
RCK10,VCK1#,2#..ATM INNER |
1 | ||
| 90501-23073 |
RCK10,VCK11,2#..ATM OUTER |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
RCK10,VCK1#,2#..ATM INNER |
1 | ||
| 90501-23073 |
RCK10,VCK11,2#..ATM OUTER |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
VCK21..ATM |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-21006 |
RCK10,VCK11,21..ATM |
1 | ||
| 90501-23095 |
VCK11,21..ATM |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
VCK21..ATM UPPER |
1 | ||
| 90301-26002 |
RCK10,VCK1#,2#..ATM LOWER |
1 | ||
| 90301-26011 |
VCK21..ATM LOWER |
1 | ||
| 90301-20002 |
RCK10,VCK1#,2#..ATM UPPER |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
VCK21..ATM UPPER |
1 | ||
| 90301-26002 |
RCK10,VCK1#,2#..ATM LOWER |
1 | ||
| 90301-26011 |
VCK21..ATM LOWER |
1 | ||
| 90301-20002 |
RCK10,VCK1#,2#..ATM UPPER |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-35190 |
VCK21..ATM |
1 | ||
| 35432-34050 |
VCK21..ATM |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-30064 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-30076 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30020 |
RCK10,VCK1#,2#..ATM LWR VALVE BODY |
2 | ||
| 35441-30031 |
RCK10,VCK1#,2#..ATM UPR VALVE BODY |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30020 |
RCK10,VCK1#,2#..ATM LWR VALVE BODY |
2 | ||
| 35441-30031 |
RCK10,VCK1#,2#..ATM UPR VALVE BODY |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-30020 |
RCK10,VCK1#,2#..ATM LWR VALVE BODY |
2 | ||
| 35441-30031 |
RCK10,VCK1#,2#..ATM UPR VALVE BODY |
1 | ||
| 35449B - VALVE, PRESSURE RELIEF | ||||
| 35449-32010 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) | ||||
| 90501-09032 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
RCK10,VCK11,21..ATM OD=5.535,RUBBER |
8 | ||
| 35496-22030 |
RCK10,VCK1#,2#..ATM OD=6.35,RUBBER |
1 | ||
| 35495-22020 |
VCK11,21..ATM OD=5.535,RUBBER |
10 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
RCK10,VCK11,21..ATM OD=5.535,RUBBER |
8 | ||
| 35496-22030 |
RCK10,VCK1#,2#..ATM OD=6.35,RUBBER |
1 | ||
| 35495-22020 |
VCK11,21..ATM OD=5.535,RUBBER |
10 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
RCK10,VCK11,21..ATM OD=5.535,RUBBER |
8 | ||
| 35496-22030 |
RCK10,VCK1#,2#..ATM OD=6.35,RUBBER |
1 | ||
| 35495-22020 |
VCK11,21..ATM OD=5.535,RUBBER |
10 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22020 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 35866 - BRACKET, TRANSFER APPLY TUBE | ||||
| 35866-35010 |
VCK21..ATM |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-30020 |
VCK21..ATM |
1 | ||
| 35897-60010 |
VCK21..ATM |
1 | ||
| Linked diagrams | ||||
| 8410 | ||||
