VCK21L-TRMDKK (1994)
Toyota T100
Production
Aug 1994
-
Aug 1996
Engine
5VZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

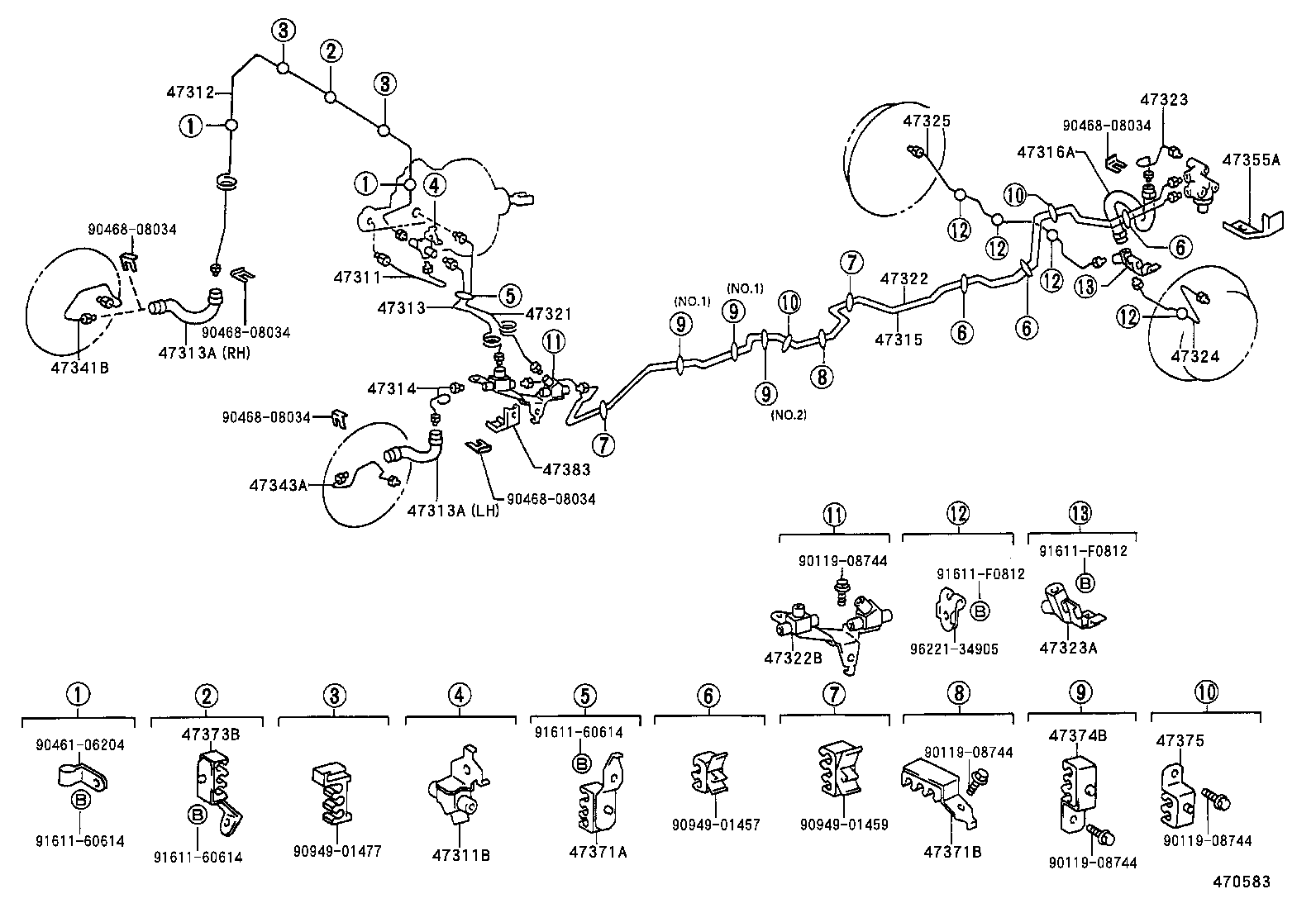

ILLUST NO. 1 OF 3(9408- )VCK21
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-34020 |
VCK11,21 W(ABS) |
1 | ||
| 47311-34010 |
RCK10,VCK1#,2# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10276 |
RCK10,VCK1#,2# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-34060 |
VCK21 W(ABS) |
1 | ||
| 47312-34040 |
VCK21 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-34040 |
VCK21 |
1 | ||
| 47313-34060 |
VCK21 W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33656 |
VCK2# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33656 |
VCK2# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-34040 |
VCK21 W(ABS) |
1 | ||
| 47314-34050 |
VCK21 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-34050 |
VCK21 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34706 |
RCK10,VCK11,21 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-34060 |
VCK21 W(ABS) |
1 | ||
| 47321-34040 |
VCK21 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-34080 |
VCK21 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90904-12035 |
VCK21 W(ABS) |
1 | ||
| 90904-13018 |
VCK21 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-34040 |
VCK21 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90904-13019 |
VCK21 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-34080 |
VCK21 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-34080 |
VCK21 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-35100 |
VCK2# |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-35100 |
VCK2# |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-34010 |
VCK2# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-34030 |
VCK11,21 W(ABS) |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47373-35050 |
VCK21 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-34010 |
RCK10,VCK1#,2# |
1 | ||
| 47373-34020 |
VCK11,21 W(ABS) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 77286-10020 |
VCK21 NO.2 |
1 | ||
| 47371-35080 |
VCK21 NO.1 |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47372-35030 |
VCK11,2#;RCK10,VCK10..STD |
2 | ||
| 47383 - BRACKET, CONNECTOR | ||||
| 47383-34010 |
VCK21 |
1 | ||
| Common parts | ||||
| 90119-08744 | ||||
| 90461-06204 | ||||
| 90468-08034 | ||||
| 90949-01457 | ||||
| 90949-01459 | ||||
| 90949-01477 | ||||
| 91611-60614 | ||||
| 91611-F0812 | ||||
| 96221-34905 | ||||

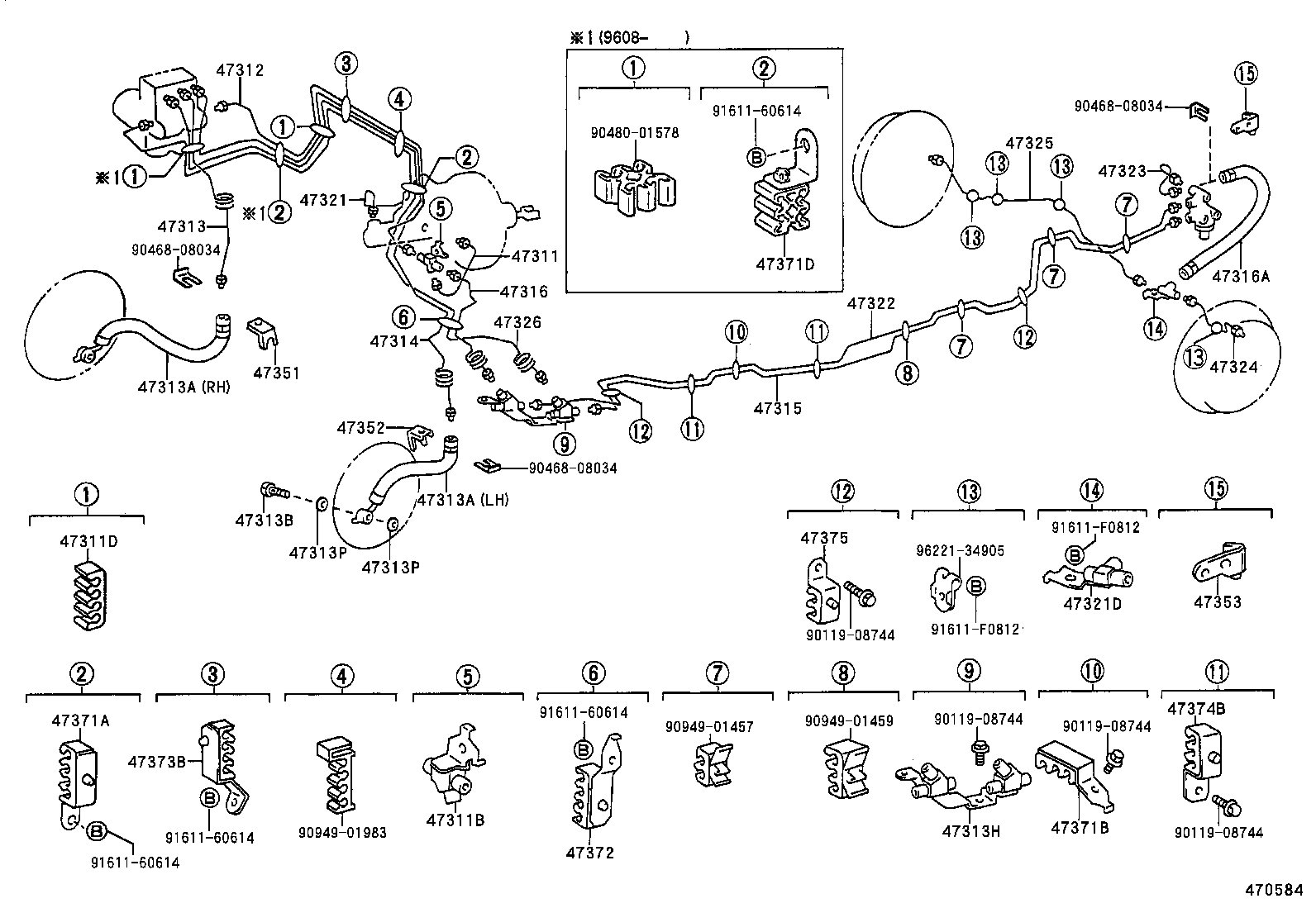

ILLUST NO. 1 OF 3(9408- )VCK21
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-34020 |
VCK11,21 W(ABS) |
1 | ||
| 47311-34010 |
RCK10,VCK1#,2# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10276 |
RCK10,VCK1#,2# |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-01508 |
VCK11,21 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-34060 |
VCK21 W(ABS) |
1 | ||
| 47312-34040 |
VCK21 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-34040 |
VCK21 |
1 | ||
| 47313-34060 |
VCK21 W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33656 |
VCK2# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33656 |
VCK2# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-34040 |
VCK21 W(ABS) |
1 | ||
| 47314-34050 |
VCK21 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-34050 |
VCK21 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-34020 |
VCK21 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34706 |
RCK10,VCK11,21 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-34060 |
VCK21 W(ABS) |
1 | ||
| 47321-34040 |
VCK21 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-34080 |
VCK21 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-34040 |
VCK21 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-34080 |
VCK21 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-34080 |
VCK21 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-34040 |
VCK21 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47352-35170 |
VCK2# |
1 | ||
| 47352-35260 |
VCK21 W(ABS) |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47354-35080 |
VCK2# |
1 | ||
| 47354-35090 |
VCK21 W(ABS) |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-34030 |
VCK11,21 W(ABS) |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47373-35050 |
VCK21 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-34020 |
VCK11,21 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-34010 |
RCK10,VCK1#,2# |
1 | ||
| 47373-34020 |
VCK11,21 W(ABS) |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 77286-10020 |
VCK21 NO.2 |
1 | ||
| 47371-35080 |
VCK21 NO.1 |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47372-35030 |
VCK11,2#;RCK10,VCK10..STD |
2 | ||
| Common parts | ||||
| 90119-08744 | ||||
| 90468-08034 | ||||
| 90480-01578 | ||||
| 90949-01457 | ||||
| 90949-01459 | ||||
| 90949-01983 | ||||
| 91611-60614 | ||||
| 91611-F0812 | ||||
| 96221-34905 | ||||

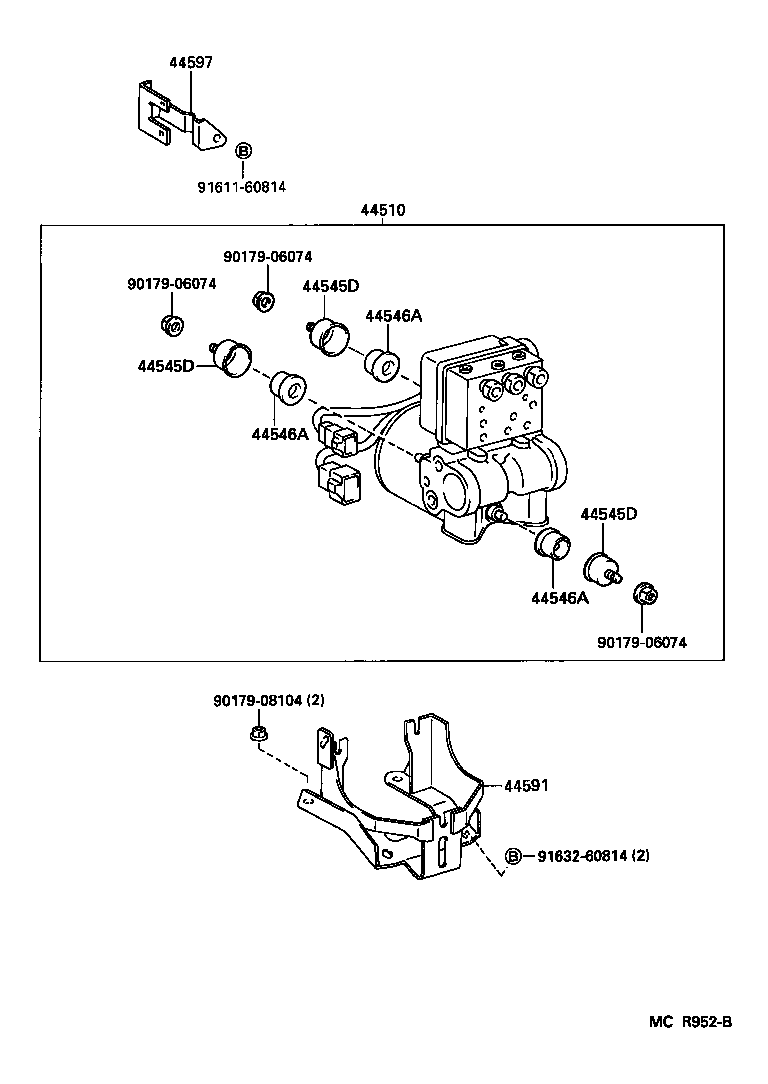

ILLUST NO. 2 OF 3(9408-9608)
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-34010 |
VCK11,21..HLF |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
VCK11,21 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
VCK11,21 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-12090 |
VCK11,21 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-30100 |
VCK11,21 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-30100 |
VCK11,21 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-30100 |
VCK11,21 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-34040 |
VCK11,21 |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-34010 |
VCK11,21 |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 90179-08104 | ||||
| 91611-60814 | ||||
| 91632-60814 | ||||
