VCK21L-TRMDKK (1994)

Toyota T100

Production Aug 1994 - Aug 1996
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9408- )VCK21..MTM

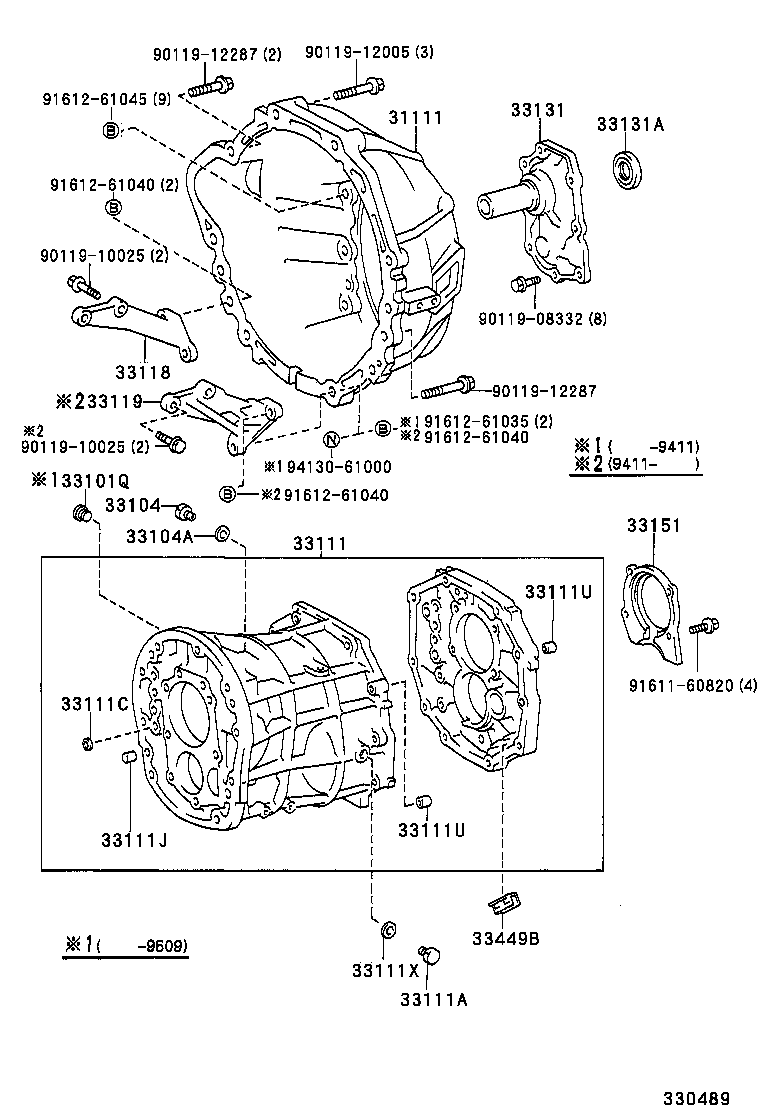

Click highlighted areas on diagram

R150F

diagram 31111 33101Q 33104 33104A 33111 33111A 33111C 33111J 33111U 33111U 33111X 33118 33119 33131 33131A 33151 33449B 9011908332 9011910025 9011910025 9011912005 9011912287 9011912287 9161160820 9161261035 9161261040 9161261040 9161261040 9161261045 9413061000
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-35080

VCK11,21..MTM

 1
31111-35081

VCK11,21..MTM

 1
33101Q - PLUG, NO.1(FOR TRANSMISSION CASE)
90341-16013

VCK1#,2#..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

RCK10,VCK11,21..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

RCK10,VCK1#,2#..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-35100

VCK11,21..MTM

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006

RCK10,VCK11,21..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

VCK11,21..MTM

OD=14

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

VCK1#,2#..MTM

L=16,OD=12

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

VCK1#,2#..MTM

L=14,OD=15

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

VCK1#,2#..MTM

L=14,OD=15

 4
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008

RCK10,VCK11,2#..MTM

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-34010

VCK21..MTM

 1
33118-34010

VCK21..MTM..DLX;VCK21..XTR..MTM..SR5

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-35030

VCK21..MTM..DLX;VCK21..XTR..MTM..SR5

 1
33119-35030

VCK21..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-35031

VCK1#,2#..MTM

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012

VCK1#,2#..MTM

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35020

VCK1#,2#..MTM

 1
Common parts
90119-08332
90119-10025
90119-12005
90119-12287
91611-60820
91612-61035
91612-61040
91612-61045
94130-61000
