VCK21L-TRMDKA (1994)
Toyota T100

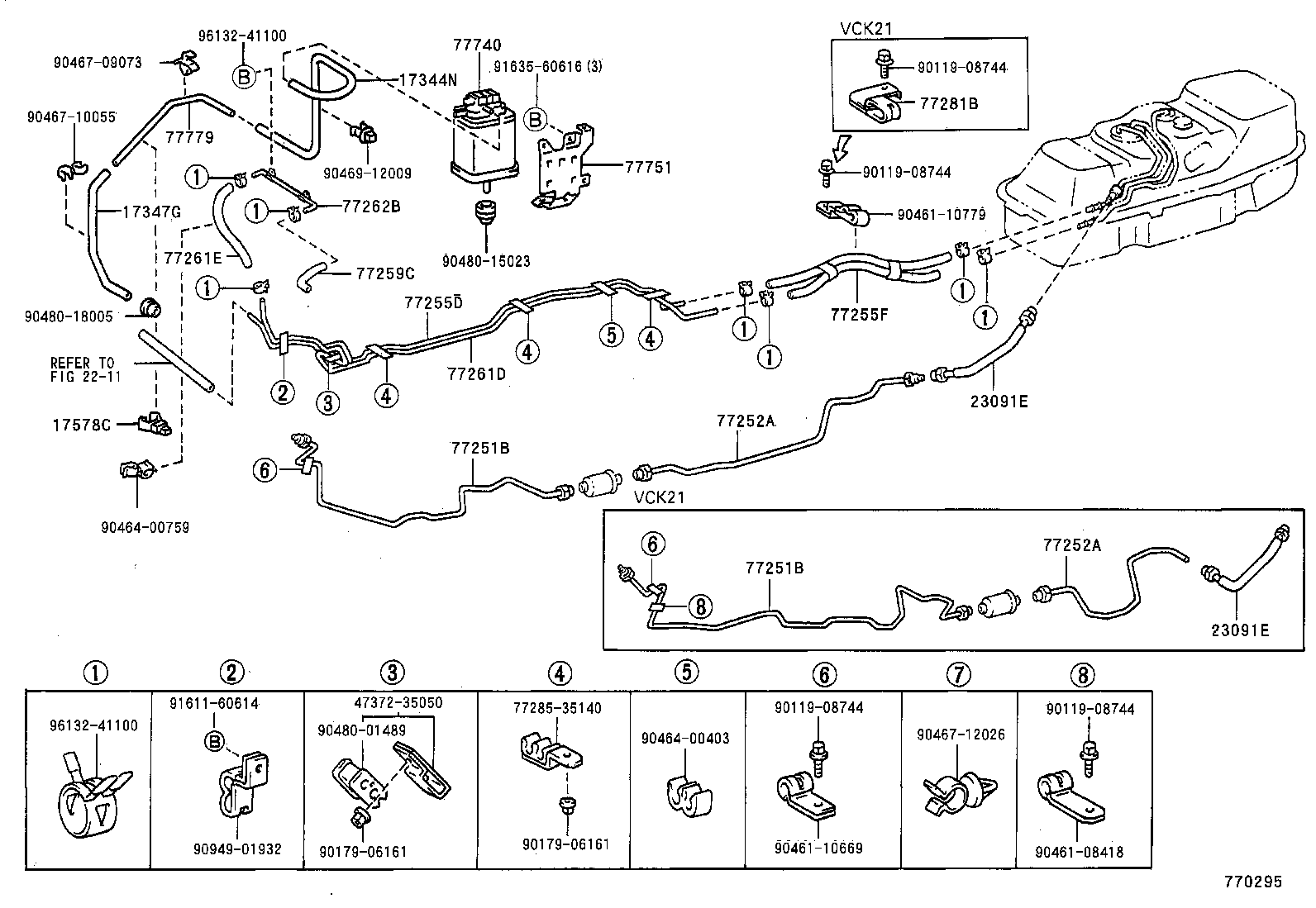

ILLUST NO. 2 OF 2(9608- )VCK11,21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17344N - HOSE, AIR, NO.4 | ||||
| 17344-62020 |
5VZFE..VCK11,21 |
1 | ||
| 17344-62020 |
3RZFE,5VZFE..RCK10,VCK11,21 |
1 | ||
| 17347G - HOSE, AIR, NO.7 | ||||
| 17347-62010 |
5VZFE..VCK11,21 |
1 | ||
| 17347-62010 |
3RZFE,5VZFE..RCK10,VCK11,21 |
1 | ||
| 17578C - CLAMP, PIPE | ||||
| 17578-62010 |
3RZFE,5VZFE..RCK10,VCK11,21 |
1 | ||
| 17578-62010 |
5VZFE..VCK11,21 |
1 | ||
| 23091E - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-65020 |
5VZFE..VCK21 |
1 | ||
| 23091E - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-65020 |
5VZFE..VCK21 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-34070 |
VCK21 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-34070 |
VCK21 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-34040 |
VCK21 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-34040 |
VCK21 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-34031 |
VCK11,21 |
1 | ||
| 77255-34031 |
RCK10,VCK11,21 |
1 | ||
| 77255-34030 |
VCK11,21 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77019-34040 |
VCK21 |
1 | ||
| 77019-34041 |
VCK21 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-34010 |
RCK10,VCK11,21 |
1 | ||
| 77259-34010 |
VCK11,21 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-34031 |
RCK10,VCK11,21 |
1 | ||
| 77261-34031 |
VCK11,21 |
1 | ||
| 77261-34030 |
VCK11,21 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95337-06040 |
RCK10,VCK11,21 L=400 |
1 | ||
| 90445-12285 |
VCK11,21 *H,L=500 |
1 | ||
| 95337-06040 |
VCK11,21 L=400 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-34010 |
RCK10,VCK11,21 |
1 | ||
| 77262-34010 |
VCK11,21 |
1 | ||
| 77281B - CLAMP, FUEL HOSE(FOR REAR FUEL MAIN) | ||||
| 77281-34010 |
VCK21 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-34070 |
VCK11,21 |
1 | ||
| 77740-34071 |
RCK10,VCK11,21 |
1 | ||
| 77740-34060 |
VCK11,21 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-34020 |
VCK11,21 |
1 | ||
| 77751-34020 |
RCK10,VCK11,21 |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-34030 |
VCK11,21 |
1 | ||
| 77779-34030 |
RCK10,VCK11,21 |
1 | ||
| Common parts | ||||
| 47372-35050 | ||||
| 77285-35140 | ||||
| 90119-08744 | ||||
| 90179-06161 | ||||
| 90461-08418 | ||||
| 90461-10669 | ||||
| 90461-10779 | ||||
| 90464-00403 | ||||
| 90464-00759 | ||||
| 90467-09073 | ||||
| 90467-10055 | ||||
| 90467-12026 | ||||
| 90469-12009 | ||||
| 90480-01489 | ||||
| 90480-15023 | ||||
| 90480-18005 | ||||
| 90949-01932 | ||||
| 91611-60614 | ||||
| 91635-60616 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||

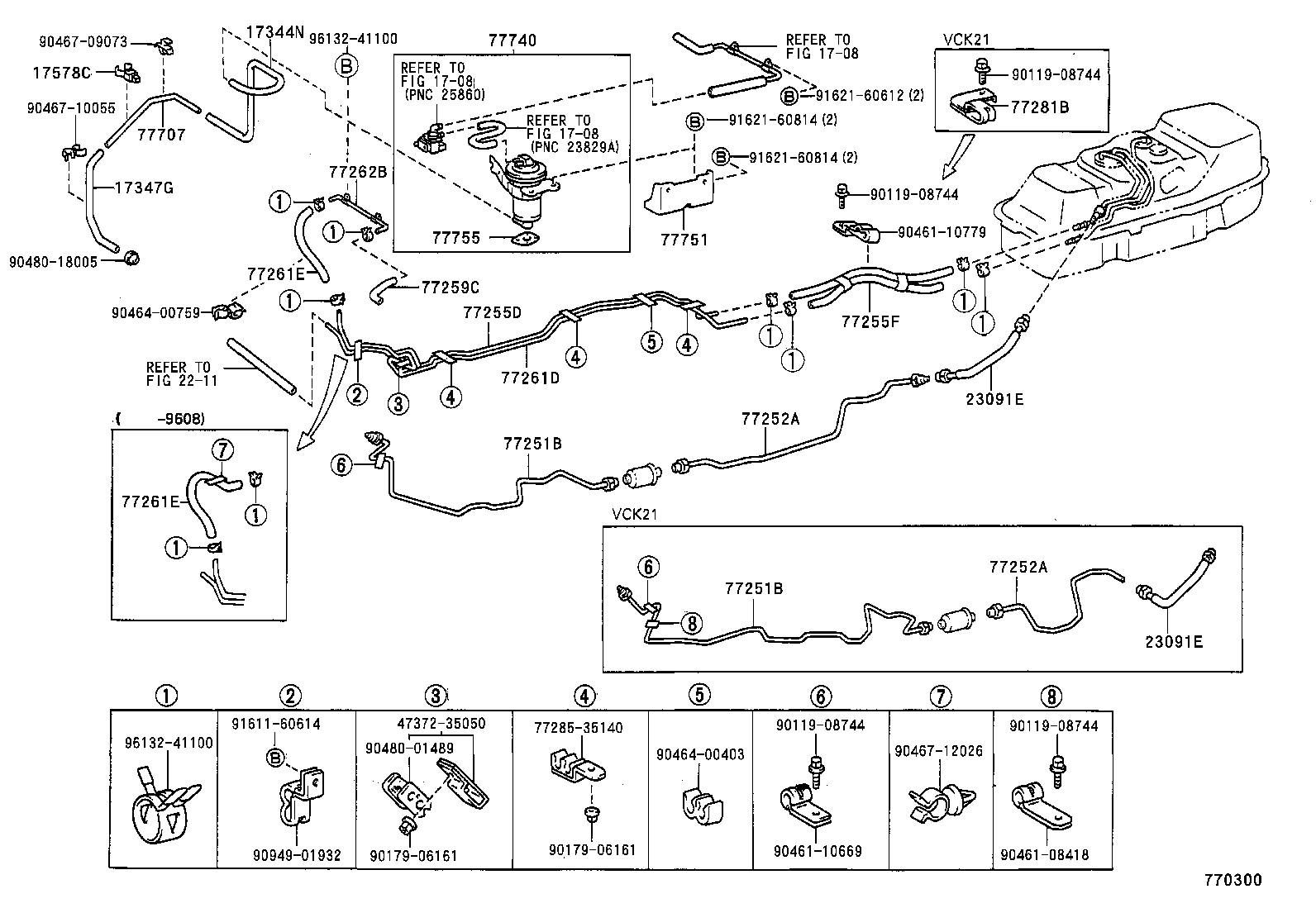

ILLUST NO. 2 OF 2(9408-9608)VCK11,21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17344N - HOSE, AIR, NO.4 | ||||
| 17344-62020 |
5VZFE..VCK11,21 |
1 | ||
| 17344-62020 |
3RZFE,5VZFE..RCK10,VCK11,21 |
1 | ||
| 17347G - HOSE, AIR, NO.7 | ||||
| 17347-62010 |
5VZFE..VCK11,21 |
1 | ||
| 17347-62010 |
3RZFE,5VZFE..RCK10,VCK11,21 |
1 | ||
| 17578C - CLAMP, PIPE | ||||
| 17578-62010 |
3RZFE,5VZFE..RCK10,VCK11,21 |
1 | ||
| 17578-62010 |
5VZFE..VCK11,21 |
1 | ||
| 23091E - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-65020 |
5VZFE..VCK21 |
1 | ||
| 23091E - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-65020 |
5VZFE..VCK21 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-34070 |
VCK21 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-34070 |
VCK21 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-34040 |
VCK21 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-34040 |
VCK21 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-34031 |
VCK11,21 |
1 | ||
| 77255-34031 |
RCK10,VCK11,21 |
1 | ||
| 77255-34030 |
VCK11,21 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77019-34040 |
VCK21 |
1 | ||
| 77019-34041 |
VCK21 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-34010 |
RCK10,VCK11,21 |
1 | ||
| 77259-34010 |
VCK11,21 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-34031 |
RCK10,VCK11,21 |
1 | ||
| 77261-34031 |
VCK11,21 |
1 | ||
| 77261-34030 |
VCK11,21 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95337-06040 |
RCK10,VCK11,21 L=400 |
1 | ||
| 90445-12285 |
VCK11,21 *H,L=500 |
1 | ||
| 95337-06040 |
VCK11,21 L=400 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95337-06040 |
RCK10,VCK11,21 L=400 |
1 | ||
| 90445-12285 |
VCK11,21 *H,L=500 |
1 | ||
| 95337-06040 |
VCK11,21 L=400 |
1 | ||
| 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 | ||||
| 77262-34010 |
RCK10,VCK11,21 |
1 | ||
| 77262-34010 |
VCK11,21 |
1 | ||
| 77281B - CLAMP, FUEL HOSE(FOR REAR FUEL MAIN) | ||||
| 77281-34010 |
VCK21 |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-34010 |
VCK11,21 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-34070 |
VCK11,21 |
1 | ||
| 77740-34071 |
RCK10,VCK11,21 |
1 | ||
| 77740-34060 |
VCK11,21 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-34020 |
VCK11,21 |
1 | ||
| 77751-34020 |
RCK10,VCK11,21 |
1 | ||
| 77755 - BRACKET, CHARCOAL CANISTER OUTLET HOSE | ||||
| 77755-34010 |
VCK11,21 |
1 | ||
| Common parts | ||||
| 47372-35050 | ||||
| 77285-35140 | ||||
| 90119-08744 | ||||
| 90179-06161 | ||||
| 90461-08418 | ||||
| 90461-10669 | ||||
| 90461-10779 | ||||
| 90464-00403 | ||||
| 90464-00759 | ||||
| 90467-09073 | ||||
| 90467-10055 | ||||
| 90467-12026 | ||||
| 90480-01489 | ||||
| 90480-18005 | ||||
| 90949-01932 | ||||
| 91611-60614 | ||||
| 91621-60612 | ||||
| 91621-60814 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
