VCK21L-TRMDKA (1994)

Toyota T100

Production Aug 1994 - Jul 1998
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

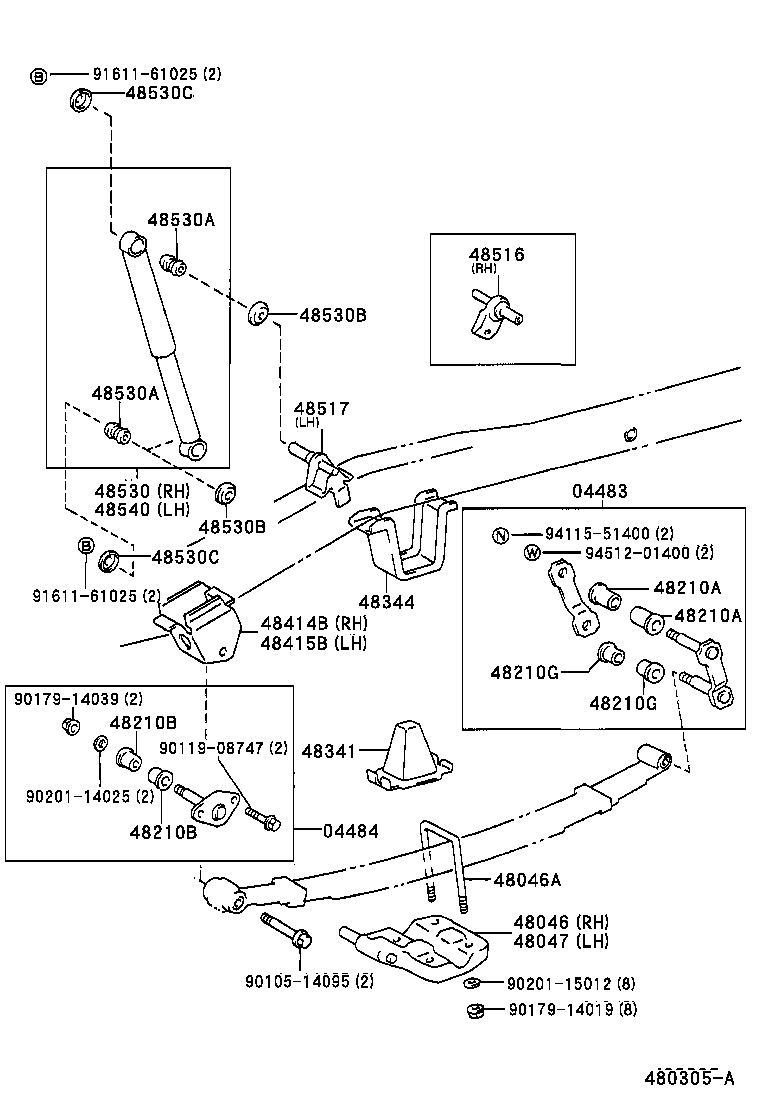

ILLUST NO. 1 OF 2(9410- )VCK21..XTR ; (9508- )VCK21..RCB

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48047 48210A 48210A 48210B 48210B 48210G 48210G 48341 48344 48414B 48415B 48516 48517 48530 48530A 48530A 48530B 48530B 48530C 48530C 48540 9010514095 9011908747 9017914019 9017914039 9020114025 9020115012 9161161025 9161161025 9411551400 9451201400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-34020

VCK21..RCB

 2
04483-34010

VCK21

 2
04484 - PIN KIT, REAR SPRING
04484-34010

RCK10,VCK11,21

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-34040

VCK21

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-14062

VCK2#..RCB

L=145

 4
90117-14062

VCK21

L=145

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-34040

VCK21

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18017

RCK10,VCK1#,2#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18017

RCK10,VCK1#,2#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18018

RCK10,VCK11,21

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18018

RCK10,VCK11,21

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18016

RCK10,VCK11,21

 4
90389-14004

VCK2#..RCB

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18016

RCK10,VCK11,21

 4
90389-14004

VCK2#..RCB

 4
48344 - STOPPER, BUMPER, REAR
48344-35020

VCK2#

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-34010

RCK10,VCK1#,2#..HLF

 1
48414-34010

VCK21..RCB

 1
48414-34020

RCK10,VCK11,21

 1
48415B - BRACKET, SPRING, NO.3 LH
48415-34020

RCK10,VCK11,21

 1
48415-34010

RCK10,VCK1#,2#..HLF

 1
48415-34010

VCK21..RCB

 1
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-35030

RCK10,VCK1#,2#

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80148

VCK2#..RCB

 1
48531-80440

VCK21

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16009

RCK10,VCK1#,2#

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16009

RCK10,VCK1#,2#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

RCK10,VCK1#,2#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

RCK10,VCK1#,2#

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03012

RCK10,VCK1#,2#

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03012

RCK10,VCK1#,2#

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80148

VCK2#..RCB

 1
48531-80440

VCK21

 1
Common parts
90105-14095
90119-08747
90179-14019
90179-14039
90201-14025
90201-15012
91611-61025
94115-51400
94512-01400

ILLUST NO. 2 OF 2(9508- )VCK21..RCB

Click highlighted areas on diagram

diagram 48210 48211 48212 48213 48220 48247 48251 48251 48252C 48252C 48253 48253 48284
Part # Description Qty Price

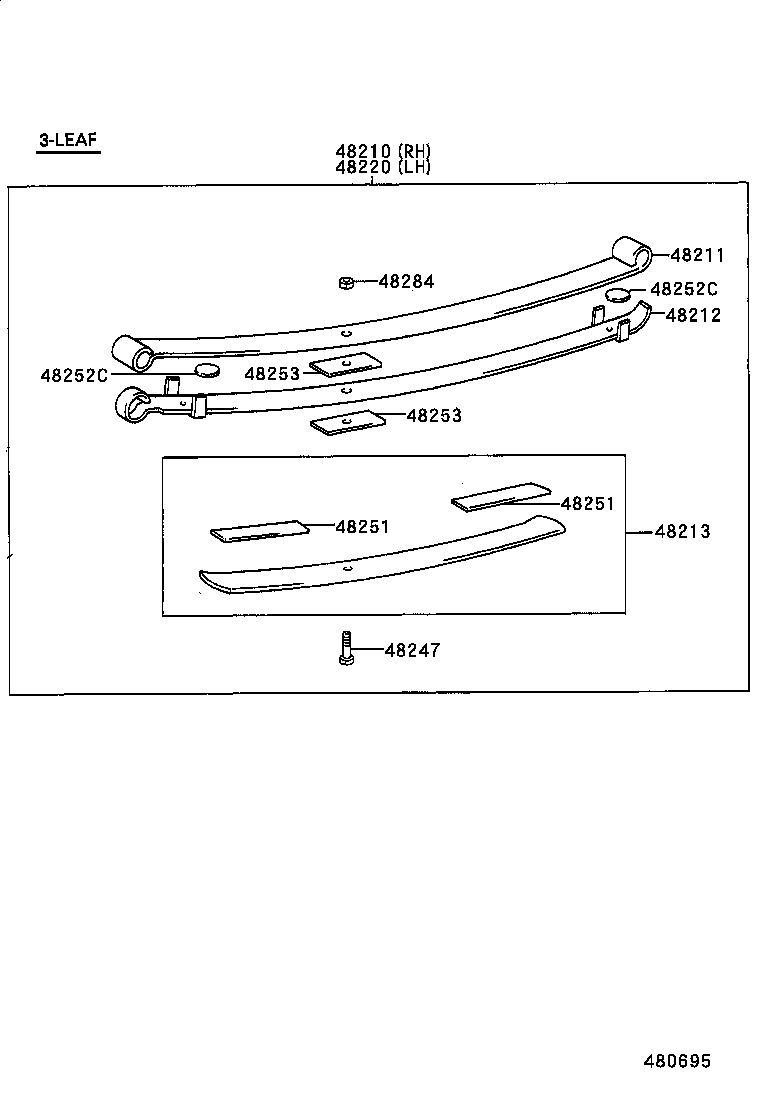

48210 - SPRING ASSY, REAR RH
48210-34071

VCK21..RCB

3-LEAF

 1
48211 - LEAF, REAR SPRING, NO.1
48211-34071

VCK21..RCB

 2
48212 - LEAF, REAR SPRING, NO.2
48202-34071

VCK21..RCB

 2
48213 - LEAF, REAR SPRING, NO.3
48213-34071

VCK21..RCB

 2
48220 - SPRING ASSY, REAR LH
48210-34071

VCK21..RCB

3-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-34030

VCK21..RCB

 2
48289-60010

VCK2#

 2
48247-34030

VCK2#..RCB

L=45

 2
48251 - SPACER, REAR SPRING LEAF
48251-34071

VCK21

 4
48251 - SPACER, REAR SPRING LEAF
48251-34071

VCK21

 4
48252C - SILENCER, REAR SPRING, NO.2
48154-34030

VCK2#..RCB

 2
48154-34030

VCK21..RCB

SOFT RIDE

 2
48252-34071

VCK21

 4
48252C - SILENCER, REAR SPRING, NO.2
48154-34030

VCK2#..RCB

 2
48154-34030

VCK21..RCB

SOFT RIDE

 2
48252-34071

VCK21

 4
48253 - SPACER, REAR SPRING, NO.1
48253-34030

VCK2#

 4
48253 - SPACER, REAR SPRING, NO.1
48253-34030

VCK2#

 4
48284 - NUT, REAR SPRING CENTER BOLT
48284-60062

VCK2#

 2

ILLUST NO. 1 OF 2(9208-9508)VCK2#..RCB

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48047 48210A 48210A 48210B 48210B 48341 48344 48414B 48415B 48516 48517 48530 48530A 48530A 48530B 48530B 48530C 48530C 48540 9010514095 9011908747 9017914019 9017914039 9020114025 9020115012 9161161025 9161161025 9411551400 9451201400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-34020

VCK21..RCB

 2
04483-34010

VCK21

 2
04484 - PIN KIT, REAR SPRING
04484-34010

RCK10,VCK11,21

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-34040

VCK21

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-14062

VCK2#..RCB

L=145

 4
90117-14062

VCK21

L=145

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-34040

VCK21

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18017

RCK10,VCK1#,2#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18017

RCK10,VCK1#,2#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18018

RCK10,VCK11,21

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18018

RCK10,VCK11,21

 4
48344 - STOPPER, BUMPER, REAR
48344-35020

VCK2#

 2
48414B - BRACKET, SPRING, NO.3 RH
48414-34010

RCK10,VCK1#,2#..HLF

 1
48414-34010

VCK21..RCB

 1
48414-34020

RCK10,VCK11,21

 1
48415B - BRACKET, SPRING, NO.3 LH
48415-34020

RCK10,VCK11,21

 1
48415-34010

RCK10,VCK1#,2#..HLF

 1
48415-34010

VCK21..RCB

 1
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-35030

RCK10,VCK1#,2#

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80148

VCK2#..RCB

 1
48531-80440

VCK21

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16009

RCK10,VCK1#,2#

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16009

RCK10,VCK1#,2#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

RCK10,VCK1#,2#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

RCK10,VCK1#,2#

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03012

RCK10,VCK1#,2#

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03012

RCK10,VCK1#,2#

 4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80148

VCK2#..RCB

 1
48531-80440

VCK21

 1
Common parts
90105-14095
90119-08747
90179-14019
90179-14039
90201-14025
90201-15012
91611-61025
94115-51400
94512-01400
