VCK21L-CRSSKA (1994)
Toyota T100

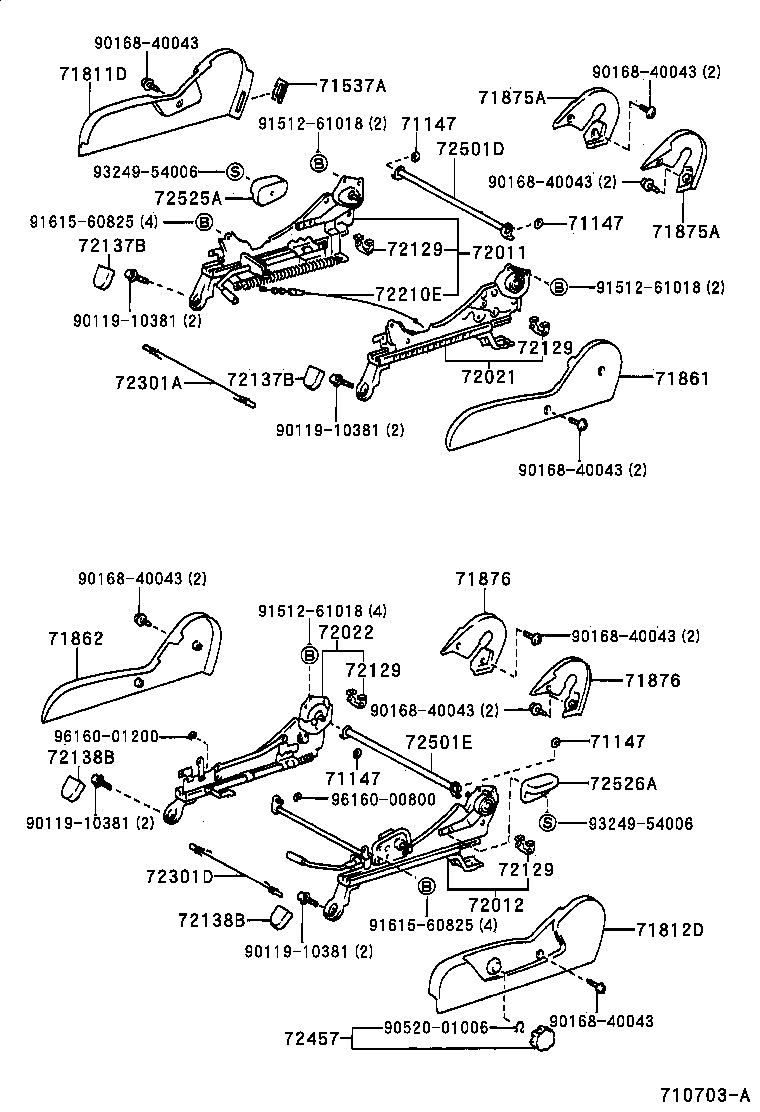

ILLUST NO. 2 OF 3(9608- )SR5
SEPARATE SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-34010 |
VCK11,21..SR5 |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-34010 |
VCK11,21..SR5 |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-34010 |
VCK11,21..SR5 |
2 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-34010 |
VCK11,21..SR5 |
2 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-34020B0 |
VCK11,21..SR5 MOON MIST,TRIM1# |
1 | ||
| 71537-34020E0 |
VCK11,21..SR5 OAK,TRIM4# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-89111J0 |
VCK11,21..XTR BLUE,TRIM8# |
1 | ||
| 71811-34030B0 |
VCK11,21..SR5 SPORTS SEAT,MOON MIST,TRIM1# |
1 | ||
| 71811-89111E2 |
VCK11,21..XTR OAK,TRIM4# |
1 | ||
| 71811-34030E0 |
VCK11,21..SR5 SPORTS SEAT,OAK,TRIM4# |
1 | ||
| 71811-89111B1 |
VCK11,21..XTR MD.MOON MIST,TRIM1# |
1 | ||
| 71811-89111B0 |
VCK11,21..XTR GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-89110E1 |
VCK1#,2#..SR5;VCK11,21..XTR..DLX OAK,TRIM4# |
1 | ||
| 71812-89110B0 |
VCK11,21..XTR MD.MOON MIST,TRIM1# |
1 | ||
| 71812-35100B0 |
VCK11,21..SR5 SPORTS SEAT,MD.MOON MIST,TRIM1# |
1 | ||
| 71812-89110R9 |
VCK11,21..XTR BLUE,TRIM8# |
1 | ||
| 71812-35100E0 |
VCK11,21..SR5 SPORTS SEAT,MD.OAK,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-35060B0 |
VCK11,21..SR5 SPORTS SEAT,MD.MOON MIST,TRIM1# |
1 | ||
| 71861-89101R9 |
VCK11,21..XTR BLUE,TRIM8# |
1 | ||
| 71861-89101B0 |
VCK11,21..XTR MD.MOON MIST,TRIM1# |
1 | ||
| 71861-89101E1 |
VCK11,21..XTR OAK,TRIM4# |
1 | ||
| 71861-89101S4 |
VCK11,21..XTR GRAY,TRIM1# |
1 | ||
| 71861-35060E0 |
VCK11,21..SR5 SPORTS SEAT,MD.OAK,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-35050B0 |
VCK11,21..SR5 SPORTS SEAT,MD.MOON MIST,TRIM1# |
1 | ||
| 71862-89101E1 |
VCK1#,2#..SR5;VCK11,21..XTR..DLX OAK,TRIM4# |
1 | ||
| 71862-35050E0 |
VCK11,21..SR5 SPORTS SEAT,MD.OAK,TRIM4# |
1 | ||
| 71862-89101B0 |
VCK11,21..XTR MD.MOON MIST,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-35010E0 |
VCK11,21..SR5 MD.OAK,TRIM4#,OUTER |
1 | ||
| 71875-35010B0 |
VCK11,21..SR5 MD.MOON MIST,TRIM1#,OUTER |
1 | ||
| 71875-35020E0 |
VCK11,21..SR5 MD.OAK,TRIM4#,INNER |
1 | ||
| 71875-35020B0 |
VCK11,21..SR5 MD.MOON MIST,TRIM1#,INNER |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-35010E0 |
VCK11,21..SR5 MD.OAK,TRIM4#,OUTER |
1 | ||
| 71875-35010B0 |
VCK11,21..SR5 MD.MOON MIST,TRIM1#,OUTER |
1 | ||
| 71875-35020E0 |
VCK11,21..SR5 MD.OAK,TRIM4#,INNER |
1 | ||
| 71875-35020B0 |
VCK11,21..SR5 MD.MOON MIST,TRIM1#,INNER |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-35020E0 |
VCK11,21..SR5 MD.OAK,TRIM4#,INNER |
1 | ||
| 71876-35010B0 |
VCK11,21..SR5 MD.MOON MIST,TRIM1#,OUTER |
1 | ||
| 71876-35020B0 |
VCK11,21..SR5 MD.MOON MIST,TRIM1#,INNER |
1 | ||
| 71876-35010E0 |
VCK11,21..SR5 MD.OAK,TRIM4#,OUTER |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-35020E0 |
VCK11,21..SR5 MD.OAK,TRIM4#,INNER |
1 | ||
| 71876-35010B0 |
VCK11,21..SR5 MD.MOON MIST,TRIM1#,OUTER |
1 | ||
| 71876-35020B0 |
VCK11,21..SR5 MD.MOON MIST,TRIM1#,INNER |
1 | ||
| 71876-35010E0 |
VCK11,21..SR5 MD.OAK,TRIM4#,OUTER |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-34010 |
VCK11,21..XTR |
1 | ||
| 72011-34020 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-34010 |
VCK11,21..SR5 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-34010 |
VCK11,21..XTR |
1 | ||
| 72021-34020 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-34010 |
VCK11,21..SR5 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-35010 |
VCK11,21..SR5 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-35010 |
VCK11,21..SR5 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-35010 |
VCK11,21..SR5 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-35010 |
VCK11,21..SR5 |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-35010B0 |
VCK11,21..XTR GRAY,TRIM1# |
2 | ||
| 72137-35010E0 |
VCK11,21..XTR OAK,TRIM4# |
2 | ||
| 72137-35010J0 |
VCK11,21..XTR BLUE,TRIM8# |
2 | ||
| 72137-35010B1 |
VCK11,21..XTR MD. MOON MIST,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-35010B0 |
VCK11,21..XTR GRAY,TRIM1# |
2 | ||
| 72137-35010E0 |
VCK11,21..XTR OAK,TRIM4# |
2 | ||
| 72137-35010J0 |
VCK11,21..XTR BLUE,TRIM8# |
2 | ||
| 72137-35010B1 |
VCK11,21..XTR MD. MOON MIST,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-35010B0 |
VCK11,21..XTR GRAY,TRIM1# |
2 | ||
| 72137-35010E0 |
VCK11,21..XTR OAK,TRIM4# |
2 | ||
| 72137-35010J0 |
VCK11,21..XTR BLUE,TRIM8# |
2 | ||
| 72137-35010B1 |
VCK11,21..XTR MD. MOON MIST,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-35010B0 |
VCK11,21..XTR GRAY,TRIM1# |
2 | ||
| 72137-35010E0 |
VCK11,21..XTR OAK,TRIM4# |
2 | ||
| 72137-35010J0 |
VCK11,21..XTR BLUE,TRIM8# |
2 | ||
| 72137-35010B1 |
VCK11,21..XTR MD. MOON MIST,TRIM1# |
2 | ||
| 72210E - CABLE ASSY, SEAT TRACK CONTROL(FOR WALK IN) | ||||
| 72210-34030 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 72210-35030 |
VCK11,21..XTR |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-35020 |
VCK11,21..XTR |
1 | ||
| 72301-34010 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-35050 |
VCK11,21..SR5 |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-22020E4 |
VCK11,21..SR5 MD.OAK,TRIM4# |
1 | ||
| 72457-22020B4 |
VCK11,21..SR5 MD.MOON MIST,TRIM1# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-35010 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 72501-89103 |
VCK11,21..XTR |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-34010 |
VCK1#,2#..SR5;VCK11,21..XTR..DLX |
1 | ||
| 72501-35010 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-89105E2 |
VCK1#,2#..SR5;VCK11,21..XTR..DLX OAK,TRIM4# |
1 | ||
| 72525-35030B0 |
VCK11,21..SR5 SPORT SEAT,MD.MOON MIST,TRIM1# |
1 | ||
| 72525-89105B0 |
VCK1#,2#..SR5;VCK11,21..XTR..DLX MEDIUM GRAY,TRIM1# |
1 | ||
| 72525-89105B1 |
VCK11,21..XTR MD.MOON MIST,TRIM1# |
1 | ||
| 72525-89105J0 |
VCK1#,2#..SR5;VCK11,21..XTR..DLX MEDIUM BLUE,TRIM8# |
1 | ||
| 72525-35030E0 |
VCK11,21..SR5 SPORT SEAT,MD.OAK,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-35020B0 |
VCK11,21..SR5 MD.MOON MIST,TRIM1# |
1 | ||
| 72526-35020E0 |
VCK11,21..SR5 MD.OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10381 | ||||
| 90168-40043 | ||||
| 90520-01006 | ||||
| 91512-61018 | ||||
| 91615-60825 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||

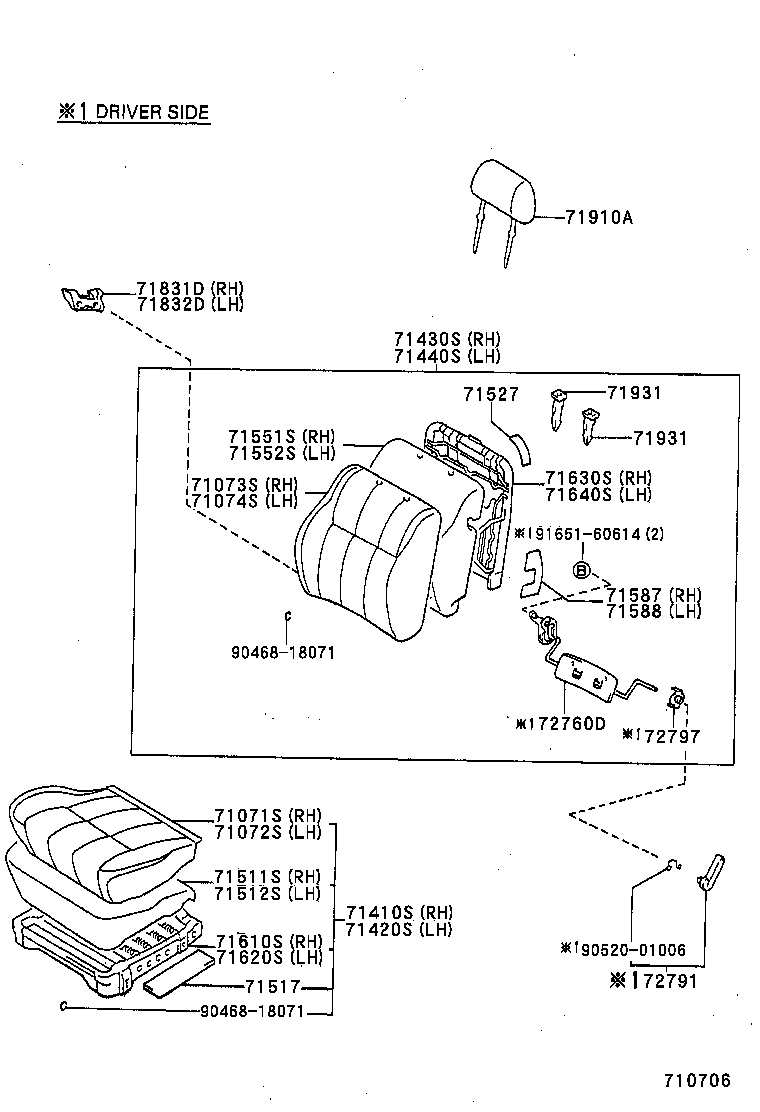

ILLUST NO. 1 OF 3(9608- )SR5
SEPARATE SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-34120B0 |
VCK11,21..XTR..SR5 GRAY,TRIM1# |
1 | ||
| 71071-34120J0 |
VCK11,21..XTR..SR5 BLUE,TRIM8# |
1 | ||
| 71071-34120E0 |
VCK11,21..XTR..SR5 OAK,TRIM4# |
1 | ||
| 71071-34180B0 |
VCK11,21..SR5 SPORTS SEAT,MOON MIST,TRIM1# |
1 | ||
| 71071-34180E0 |
VCK11,21..SR5 SPORTS SEAT,OAK,TRIM4# |
1 | ||
| 71071-34170E0 |
VCK11,21..SR5 OAK,TRIM4# |
1 | ||
| 71071-34170B0 |
VCK11,21..SR5 MOON MIST,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-34090E0 |
VCK11,21..XTR..ATM..SR5 OAK,TRIM4# |
1 | ||
| 71072-34090B0 |
VCK11,21..XTR..ATM..SR5 GRAY,TRIM1# |
1 | ||
| 71072-34090J0 |
VCK11,21..XTR..ATM..SR5 BLUE,TRIM8# |
1 | ||
| 71071-34180B0 |
VCK11,21..SR5 SPORTS SEAT,MOON MIST,TRIM1# |
1 | ||
| 71071-34180E0 |
VCK11,21..SR5 SPORTS SEAT,OAK,TRIM4# |
1 | ||
| 71072-34130E0 |
VCK11,21..ATM..SR5 OAK,TRIM4# |
1 | ||
| 71072-34130B0 |
VCK11,21..ATM..SR5 MOON MIST,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-34090E0 |
VCK11,21..XTR..SR5 OAK,TRIM4# |
1 | ||
| 71073-34090B0 |
VCK11,21..XTR..SR5 GRAY,TRIM1# |
1 | ||
| 71073-34120E0 |
VCK11,21..SR5 OAK,TRIM4# |
1 | ||
| 71073-34120B0 |
VCK11,21..SR5 MOON MIST,TRIM1# |
1 | ||
| 71073-34130E0 |
VCK11,21..SR5 SPORTS SEAT,OAK,TRIM4# |
1 | ||
| 71073-34090J0 |
VCK11,21..XTR..SR5 BLUE,TRIM8# |
1 | ||
| 71073-34130B0 |
VCK11,21..SR5 SPORTS SEAT,MOON MIST,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-34050J0 |
VCK11,21..XTR..SR5 BLUE,TRIM8# |
1 | ||
| 71073-34130B0 |
VCK11,21..SR5 SPORTS SEAT,MOON MIST,TRIM1# |
1 | ||
| 71074-34050E0 |
VCK11,21..XTR..SR5 OAK,TRIM4# |
1 | ||
| 71074-34050B0 |
VCK11,21..XTR..SR5 GRAY,TRIM1# |
1 | ||
| 71073-34130E0 |
VCK11,21..SR5 SPORTS SEAT,OAK,TRIM4# |
1 | ||
| 71074-34070E0 |
VCK11,21..SR5 OAK,TRIM4# |
1 | ||
| 71074-34070B0 |
VCK11,21..SR5 MOON MIST,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-34200B0 |
VCK11,21..SR5 MOON MIST,TRIM1# |
1 | ||
| 71410-34210B0 |
VCK11,21..SR5 SPORTS SEAT,MOON MIST,TRIM1# |
1 | ||
| 71410-34200E0 |
VCK11,21..SR5 OAK,TRIM4# |
1 | ||
| 71410-34210E0 |
VCK11,21..SR5 SPORTS SEAT,OAK,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-34210E0 |
VCK11,21..SR5 SPORTS SEAT,OAK,TRIM4# |
1 | ||
| 71410-34210B0 |
VCK11,21..SR5 SPORTS SEAT,MOON MIST,TRIM1# |
1 | ||
| 71420-34150B0 |
VCK11,21..ATM..SR5 MOON MIST,TRIM1# |
1 | ||
| 71420-34150E0 |
VCK11,21..ATM..SR5 OAK,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-34140E0 |
VCK11,21..SR5 OAK,TRIM4# |
1 | ||
| 71430-34150B0 |
VCK11,21..SR5 SPORTS SEAT,MOON MIST,TRIM1# |
1 | ||
| 71430-34140B0 |
VCK11,21..SR5 MOON MIST,TRIM1# |
1 | ||
| 71430-34150E0 |
VCK11,21..SR5 SPORTS SEAT,OAK,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-34120B0 |
VCK11,21..ATM..SR5 MOON MIST,TRIM1# |
1 | ||
| 71440-34140B0 |
VCK11,21..SR5 SPORTS SEAT,MOON MIST,TRIM1# |
1 | ||
| 71440-34120E0 |
VCK11,21..ATM..SR5 OAK,TRIM4# |
1 | ||
| 71440-34140E0 |
VCK11,21..SR5 SPORTS SEAT,OAK,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-34040 |
VCK1#,2#..SR5;VCK11,21..XTR..DLX |
1 | ||
| 71511-34050 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-34010 |
VCK1#,2#..ATM..SR5;VCK11,21..XTR..ATM..DLX |
1 | ||
| 71511-34050 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 71517 - CLOTH, FRONT SEAT CUSHION UNDER | ||||
| 71517-34060 |
VCK11,21..SR5 |
2 | ||
| 71527 - TAPE, FRONT SEAT CUSHION SILENCER | ||||
| 71527-34010 |
VCK11,21..SR5 SPORT SEAT |
2 | ||
| 71527-34010 |
VCK11,21..XTR |
3 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-34030 |
VCK1#,2#..SR5;VCK11,21..XTR..DLX |
1 | ||
| 71551-34050 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-34010 |
VCK1#,2#..SR5;VCK11,21..XTR..DLX |
1 | ||
| 71551-34050 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-60080 |
VCK11,21..SR5 |
1 | ||
| 71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2 | ||||
| 71588-60030 |
VCK11,21..SR5 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-35110 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 71610-89150 |
VCK11,21..XTR |
1 | ||
| 71610-35060 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-35060 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 71610-35110 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-35110 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 71630-34040 |
VCK11,21..XTR |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-34020 |
VCK11,21..XTR |
1 | ||
| 71630-35100 |
VCK11,21..SR5 SPORTS SEAT |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-35050 |
VCK11,21..SR5 |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-35050 |
VCK11,21..SR5 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-34060E0 |
VCK11,21..SR5 OAK,TRIM4#,PASSENER SIDE |
1 | ||
| 71910-34040E0 |
VCK11,21..SR5 OAK,TRIM4#,DRIVER SIDE |
1 | ||
| 71910-34040B0 |
VCK11,21..SR5 GRAY,TRIM1#,DRIVER SIDE |
1 | ||
| 71910-34080E0 |
VCK11,21..SR5 OAK,TRIM4# |
1 | ||
| 71910-34040J0 |
VCK11,21..SR5 BLUE,TRIM8#,DRIVER SIDE |
1 | ||
| 71910-34060J0 |
VCK11,21..SR5 BLUE,TRIM8#,PASSENER SIDE |
1 | ||
| 71910-34060B0 |
VCK11,21..SR5 GRAY,TRIM1#,PASSENER SIDE |
1 | ||
| 71910-34080B0 |
VCK11,21..SR5 MOON MIST,TRIM1# |
1 | ||
| 71910-34090E0 |
VCK11,21..SR5 OAK,TRIM4#,PASSENGER SIDE |
1 | ||
| 71910-34110B0 |
VCK11,21..SR5 SPORTS SEAT,MOON MIST,TRIM1#,PASSENGER SIDE |
1 | ||
| 71910-34100E0 |
VCK11,21..SR5 SPORTS SEAT,OAK,TRIM4# |
1 | ||
| 71910-34110E0 |
VCK11,21..SR5 SPORTS SEAT,OAK,TRIM4#,PASSENGER SIDE |
1 | ||
| 71910-34090B0 |
VCK11,21..SR5 MOON MIST,TRIM1#,PASSENGER SIDE |
1 | ||
| 71910-34080B0 |
VCK11,21..SR5 MOON MIST,TRIM1# |
2 | ||
| 71910-34100B0 |
VCK11,21..SR5 SPORTS SEAT,MOON MIST,TRIM1# |
1 | ||
| 71910-34080E0 |
VCK11,21..SR5 OAK,TRIM4# |
2 | ||
| 71910-34100E0 |
VCK11,21..SR5 SPORTS SEAT,OAK,TRIM4# |
2 | ||
| 71910-34100B0 |
VCK11,21..SR5 SPORTS SEAT,MOON MIST,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070P2 |
RCK10,VCK1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-12040J6 |
RCK10,VCK1#,2# W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-12070E8 |
RCK10,VCK1#,2# W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-12040E8 |
RCK10,VCK1#,2# W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71930-12070J6 |
RCK10,VCK1#,2# W(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-12070P6 |
RCK10,VCK11,21 W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P2 |
RCK10,VCK1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RCK10,VCK11,21 W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-12070P2 |
RCK10,VCK1#,2# W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-12040J6 |
RCK10,VCK1#,2# W/O(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-12070E8 |
RCK10,VCK1#,2# W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-12040E8 |
RCK10,VCK1#,2# W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71930-12070J6 |
RCK10,VCK1#,2# W(LOCK),BLUE,TRIM8# |
2 | ||
| 71930-12070P6 |
RCK10,VCK11,21 W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-12040P2 |
RCK10,VCK1#,2# W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-12040P6 |
RCK10,VCK11,21 W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-35020 |
VCK11,21..SR5 |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-12010B3 |
VCK11,21..SR5 MD.MOON MIST,TRIM1# |
1 | ||
| 72791-12010E2 |
VCK11,21..SR5 MD.OAK,TRIM4# |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-50010 |
VCK11,21..SR5 |
1 | ||
| Common parts | ||||
| 90468-18071 | ||||
| 90520-01006 | ||||
| 91651-60614 | ||||

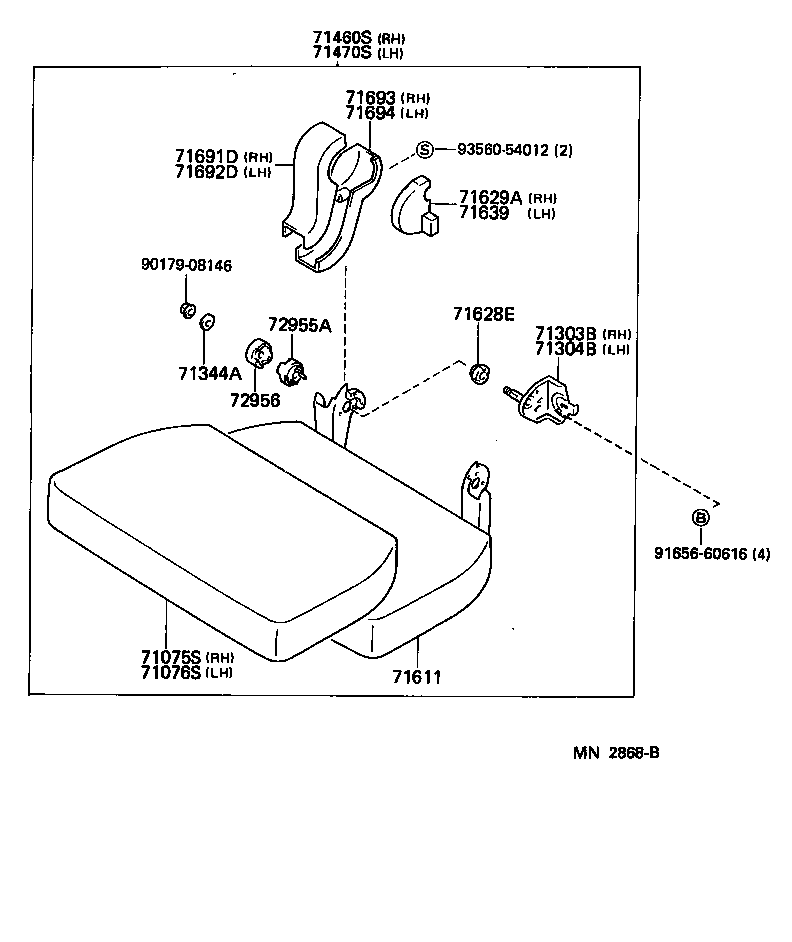

ILLUST NO. 3 OF 3(9410- )XTR
REAR JUMP SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-34020E0 |
VCK11,21..XTR..SR5 OAK,TRIM4# |
1 | ||
| 71075-34020B0 |
VCK11,21..XTR..SR5 GRAY,TRIM1# |
1 | ||
| 71075-34040B0 |
VCK11,21..SR5 MOON MIST,TRIM1# |
1 | ||
| 71075-34020J0 |
VCK11,21..XTR..SR5 BLUE,TRIM8# |
1 | ||
| 71075-34040E0 |
VCK11,21..SR5 OAK,TRIM4# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71075-34020B0 |
VCK11,21..XTR..SR5 GRAY,TRIM1# |
1 | ||
| 71075-34020J0 |
VCK11,21..XTR..SR5 BLUE,TRIM8# |
1 | ||
| 71075-34040E0 |
VCK11,21..SR5 OAK,TRIM4# |
1 | ||
| 71075-34020E0 |
VCK11,21..XTR..SR5 OAK,TRIM4# |
1 | ||
| 71075-34040B0 |
VCK11,21..SR5 MOON MIST,TRIM1# |
1 | ||
| 71303B - HINGE SUB-ASSY, REAR NO.2 SEAT, RH | ||||
| 71303-89101 |
VCK11,21..XTR |
2 | ||
| 71304B - HINGE SUB-ASSY, REAR NO.2 SEAT, LH | ||||
| 71303-89101 |
VCK11,21..XTR |
2 | ||
| 71344A - PLATE, REAR SEAT CUSHION HINGE | ||||
| 71344-89102 |
VCK11,21..XTR |
4 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-34040B0 |
VCK11,21..SR5 MOON MIST,TRIM1# |
1 | ||
| 71460-34040E0 |
VCK11,21..SR5 OAK,TRIM4# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71460-34040E0 |
VCK11,21..SR5 OAK,TRIM4# |
1 | ||
| 71460-34040B0 |
VCK11,21..SR5 MOON MIST,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-34010 |
VCK11,21..XTR |
2 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-89102 |
VCK11,21..XTR |
4 | ||
| 71629A - COVER, REAR SEAT CUSHION HINGE, RH | ||||
| 71629-89103B0 |
VCK11,21..XTR MD.MOON MIST,TRIM1# |
2 | ||
| 71629-89103S4 |
VCK11,21..XTR GRAY,TRIM1# |
2 | ||
| 71629-89103E2 |
VCK11,21..XTR OAK,TRIM4# |
2 | ||
| 71629-89103R9 |
VCK11,21..XTR BLUE,TRIM8# |
2 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71639-89101S4 |
VCK11,21..XTR GRAY,TRIM1# |
2 | ||
| 71639-89101R9 |
VCK11,21..XTR BLUE,TRIM8# |
2 | ||
| 71639-89101E0 |
VCK11,21..XTR OAK,TRIM4# |
2 | ||
| 71639-89101B0 |
VCK11,21..XTR MD.MOON MIST,TRIM1# |
2 | ||
| 71691D - COVER, REAR SEAT CUSHION HINGE, UPPER RH | ||||
| 71691-89101E0 |
VCK11,21..XTR OAK,TRIM4# |
2 | ||
| 71691-89101R9 |
VCK11,21..XTR BLUE,TRIM8# |
2 | ||
| 71691-89101S4 |
VCK11,21..XTR GRAY,TRIM1# |
2 | ||
| 71691-89101B0 |
VCK11,21..XTR MD.MOON MIST,TRIM1# |
2 | ||
| 71692D - COVER, REAR SEAT CUSHION HINGE, UPPER LH | ||||
| 71692-89101R9 |
VCK11,21..XTR BLUE,TRIM8# |
2 | ||
| 71692-89101E0 |
VCK11,21..XTR OAK,TRIM4# |
2 | ||
| 71692-89101B0 |
VCK11,21..XTR MD.MOON MIST,TRIM1# |
2 | ||
| 71692-89101S4 |
VCK11,21..XTR GRAY,TRIM1# |
2 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-89101S4 |
VCK11,21..XTR GRAY,TRIM1# |
2 | ||
| 71693-89101R9 |
VCK11,21..XTR BLUE,TRIM8# |
2 | ||
| 71693-89101B0 |
VCK11,21..XTR MD.MOON MIST,TRIM1# |
2 | ||
| 71693-89101E0 |
VCK11,21..XTR OAK,TRIM4# |
2 | ||
| 71694 - COVER, REAR SEAT CUSHION HINGE, LOWER LH | ||||
| 71694-89101S4 |
VCK11,21..XTR GRAY,TRIM1# |
2 | ||
| 71694-89101B0 |
VCK11,21..XTR MD.MOON MIST,TRIM1# |
2 | ||
| 71694-89101E0 |
VCK11,21..XTR OAK,TRIM4# |
2 | ||
| 71694-89101R9 |
VCK11,21..XTR BLUE,TRIM8# |
2 | ||
| 72955A - PLATE, REAR SEAT TURN LOCK, NO.1 | ||||
| 72955-89101 |
VCK11,21..XTR |
4 | ||
| 72956 - PLATE, REAR SEAT TURN LOCK, NO.2 | ||||
| 72956-89101 |
VCK11,21..XTR |
4 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91656-60616 | ||||
| 93560-54012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
