VCK21L-CRSSKA (1994)

Toyota T100

Production Oct 1994 - Jul 1998
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9410- )XTR

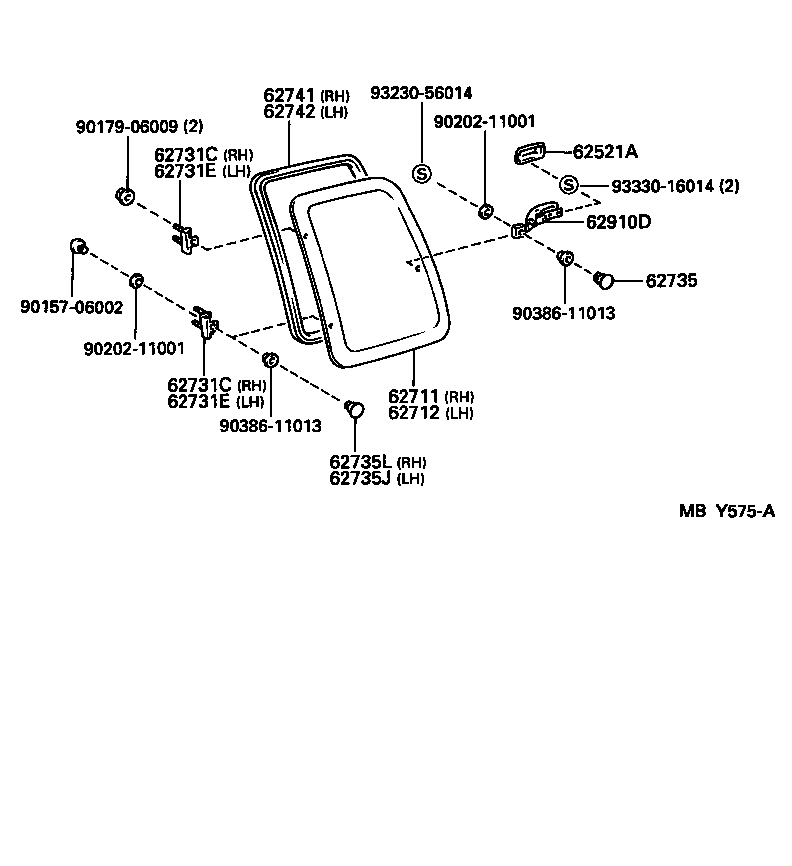

Click highlighted areas on diagram

diagram 62521A 62711 62712 62731C 62731C 62731E 62731E 62735 62735J 62735L 62741 62742 62910D 9015706002 9017906009 9020211001 9020211001 9038611013 9038611013 9323056014 9333016014
Part # Description Qty Price
62521A - COVER, QUARTER TRIM
62521-89102S4

VCK11,21..XTR

GRAY,TRIM1#

 2
62521-89102B1

VCK11,21..XTR

MD. MOON MIST,TRIM1#

 2
62521-89102R9

VCK11,21..XTR

BLUE,TRIM8#

 2
62521-89102E2

VCK11,21..XTR

OAK,TRIM4#

 2
62711 - GLASS, QUARTER WINDOW, RH
62711-34020

VCK11,21..XTR

*SERT,T=4.0,GRAY

 1
62711-34010

VCK11,21..XTR

*TT,T=4.0,GREEN

 1
62711-34030

VCK11,21..XTR

*TT,T=4.0,GRAY

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-34010

VCK11,21..XTR

*TT,T=4.0,GREEN

 1
62712-34020

VCK11,21..XTR

*SERT,T=4.0,GRAY

 1
62712-34030

VCK11,21..XTR

*TT,T=4.0,GRAY

 1
62731C - HINGE, QUARTER WINDOW, RH
62731-89101

VCK11,21..XTR

UPR

 1
62731-89102

VCK11,21..XTR

LWR

 1
62731C - HINGE, QUARTER WINDOW, RH
62731-89101

VCK11,21..XTR

UPR

 1
62731-89102

VCK11,21..XTR

LWR

 1
62731E - HINGE, QUARTER WINDOW, LH
62731-89102

VCK11,21..XTR

UPR

 1
62731-89101

VCK11,21..XTR

LWR

 1
62731E - HINGE, QUARTER WINDOW, LH
62731-89102

VCK11,21..XTR

UPR

 1
62731-89101

VCK11,21..XTR

LWR

 1
62735 - RETAINER, QUARTER WINDOW HINGE
62735-89102

VCK11,21..XTR

 2
62735J - RETAINER, QUARTER WINDOW HINGE, LH
62735-89102

VCK11,21..XTR

 1
62735L - RETAINER, QUARTER WINDOW HINGE, RH
62735-89102

VCK11,21..XTR

 1
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-34010

VCK11,21..XTR

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62741-34010

VCK11,21..XTR

 1
62910D - LOCK ASSY, QUARTER WINDOW
62910-35010J0

VCK11,21..XTR

BLUE,TRIM8#

 2
62910-35010B1

VCK11,21..XTR

GRAY,TRIM1#

 2
62910-35010B2

VCK11,21..XTR

MD. MOON MIST,TRIM1#

 2
62910-35010E1

VCK11,21..XTR

OAK,TRIM4#

 2
Common parts
90157-06002
90179-06009
90202-11001
90386-11013
93230-56014
93330-16014
