VCK20L-TRSREK (1992)

Toyota T100

Production Aug 1992 - Aug 1994
Engine 3VZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(9208- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42611G 42611J
Part # Description Qty Price
42601 - WHEEL, DISC
42601-04020

VCK2#..DLX,STD

15X7JJ,TYPE K:REFER TO ILLUSTRATION

 4
42601-3564003

VCK2#

15X6JJ,TYPE D,SILVER M.

 4
42601A - WHEEL, DISC (FOR SPARE)
42601-3564003

VCK2#

15X6JJ,TYPE D,SILVER M.

 1
42601-04020

VCK2#

15X7JJ,TYPE K:REFER TO ILLUSTRATION

 1
42601C - NUT, HUB (FOR AXLE)
90942-01075

VCK2#..RCB;VCK21..XTR..USA;VCK21..XTR..DLX..CND

 24
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

RCK10,VCK1#,2#

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

RCK10,VCK1#,2#

 1

ILLUST NO. 2 OF 4(9208- )

Click highlighted areas on diagram

diagram 42601 42601A
Part # Description Qty Price
42601 - WHEEL, DISC
42601-04020

VCK2#..DLX,STD

15X7JJ,TYPE K:REFER TO ILLUSTRATION

 4
42601-3564003

VCK2#

15X6JJ,TYPE D,SILVER M.

 4
42601A - WHEEL, DISC (FOR SPARE)
42601-3564003

VCK2#

15X6JJ,TYPE D,SILVER M.

 1
42601-04020

VCK2#

15X7JJ,TYPE K:REFER TO ILLUSTRATION

 1

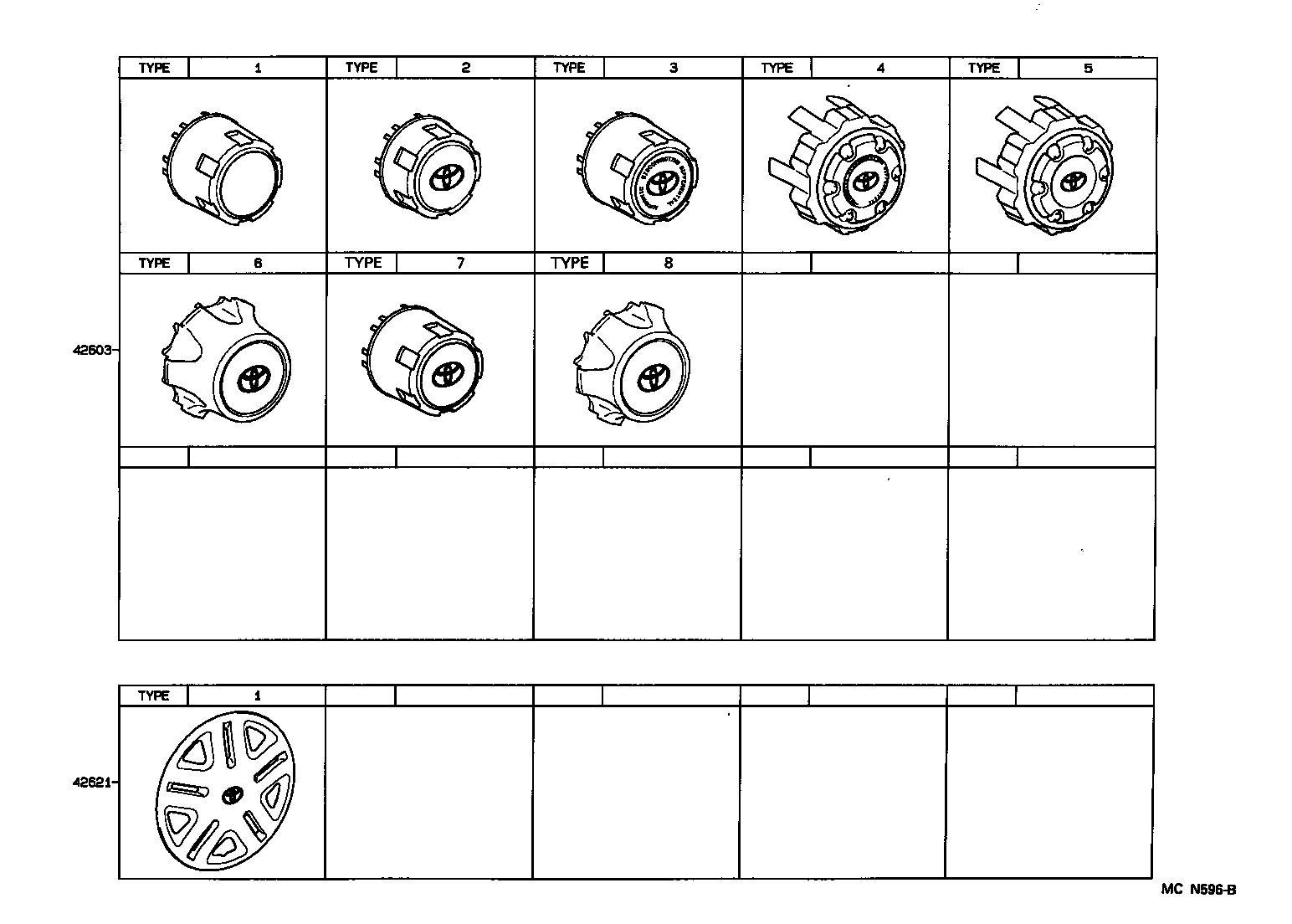

ILLUST NO. 3 OF 4(9208- )

Click highlighted areas on diagram

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-35540

VCK20..STD

W(*ADD),FR

 2
42603-35520

VCK2#..RCB;VCK21..XTR..USA

RR

 2
42603-35510

VCK20..STD

W(*ADD),FR

 2
42603-35320

VCK20..STD

FR

 2

ILLUST NO. 4 OF 4(9208- )

Click highlighted areas on diagram

diagram 9094203079 9094203080 9094203081 9094203082 9094203083 9094203084 9094203085 9094203086 9094203107 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203155 9094203156 9094203157 9094203158 9094203159 9094203160 9094203167 9094203218 9094203219 9094203220 9094203221 9094203222 9094203223 9094203224 9094203225
Part # Description Qty Price
Common parts
90942-03079
90942-03080
90942-03081
90942-03082
90942-03083
90942-03084
90942-03085
90942-03086
90942-03107
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03157
90942-03158
90942-03159
90942-03160
90942-03167
90942-03218
90942-03219
90942-03220
90942-03221
90942-03222
90942-03223
90942-03224
90942-03225
