VCK11L-TRSDKA (1994)

Toyota T100

Production Aug 1994 - Jul 1998
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

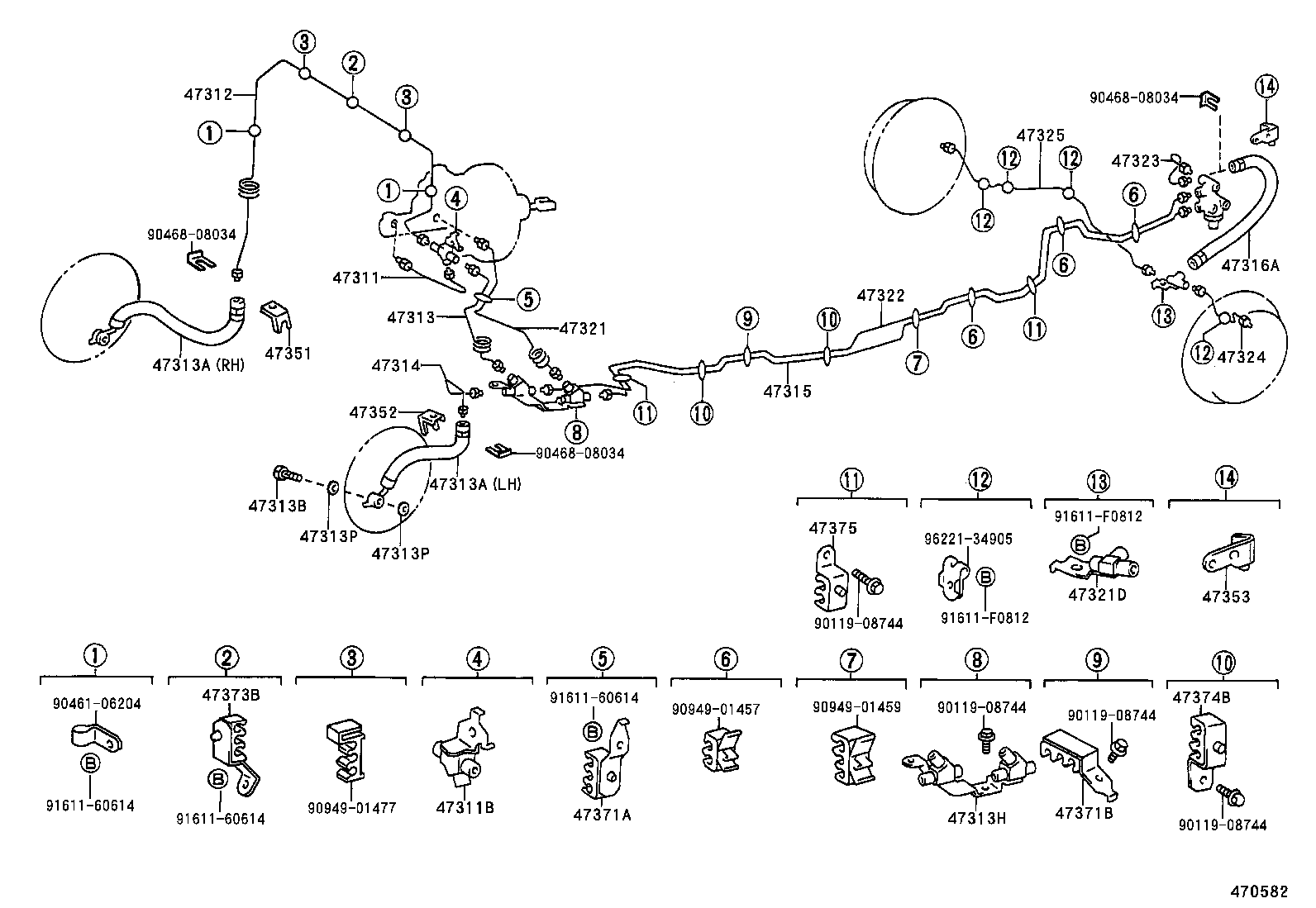

ILLUST NO. 1 OF 3(9408- )VCK11

Click highlighted areas on diagram

diagram 47311 47311B 47312 47313 47313A 47313A 47313B 47313H 47313P 47313P 47314 47315 47316A 47321 47321D 47322 47323 47324 47325 47351 47352 47353 47371A 47371B 47373B 47374B 47375 9011908744 9011908744 9011908744 9011908744 9046106204 9046808034 9046808034 9046808034 9094901457 9094901459 9094901477 9161160614 9161160614 9161160614 91611F0812 91611F0812 9622134905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-34020

VCK11,21

W(ABS)

 1
47311-34010

RCK10,VCK1#,2#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10276

RCK10,VCK1#,2#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-34070

VCK11

W(ABS)

 1
47312-34050

VCK11

W(ABS)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-34031

RCK10,VCK11

 1
47313-34050

VCK11

W(ABS)

 1
47313-34070

VCK11

W(ABS)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02717

RCK10,VCK1#

LH

 1
90947-02698

RCK10,VCK1#

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02717

RCK10,VCK1#

LH

 1
90947-02698

RCK10,VCK1#

RH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

RCK10,VCK1#

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-13006

RCK10,VCK11

 1
90904-12036

VCK11

W(ABS)

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

RCK10,VCK1#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

RCK10,VCK1#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-34030

VCK11

W(ABS)

 1
47314-34060

VCK11

W(ABS)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-34040

RCK10,VCK11

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34705

RCK10,VCK11,21

 1
96940-34706

RCK10,VCK11,21

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-34031

RCK10,VCK11

 1
47321-34070

VCK11

W(ABS)

 1
47321-34050

VCK11

W(ABS)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-34070

RCK10,VCK11

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-34060

RCK10,VCK11..HLF

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-34060

RCK10,VCK11..HLF

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-34010

RCK10,VCK1#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-34020

RCK10,VCK1#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-34030

VCK11,21

W(ABS)

 2
47372-34030

RCK10,VCK11,21

 1
47371-34030

VCK11,21

W(ABS)

 2
47373B - CLAMP, BRAKE TUBE, NO.3
47373-34010

RCK10,VCK1#,2#

 1
47373-34020

VCK11,21

W(ABS)

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-35080

RCK10,VCK11

 2
47375 - CLAMP, BRAKE TUBE, NO.5
47372-35030

VCK11,2#;RCK10,VCK10..STD

 2
Common parts
90119-08744
90461-06204
90468-08034
90949-01457
90949-01459
90949-01477
91611-60614
91611-F0812
96221-34905

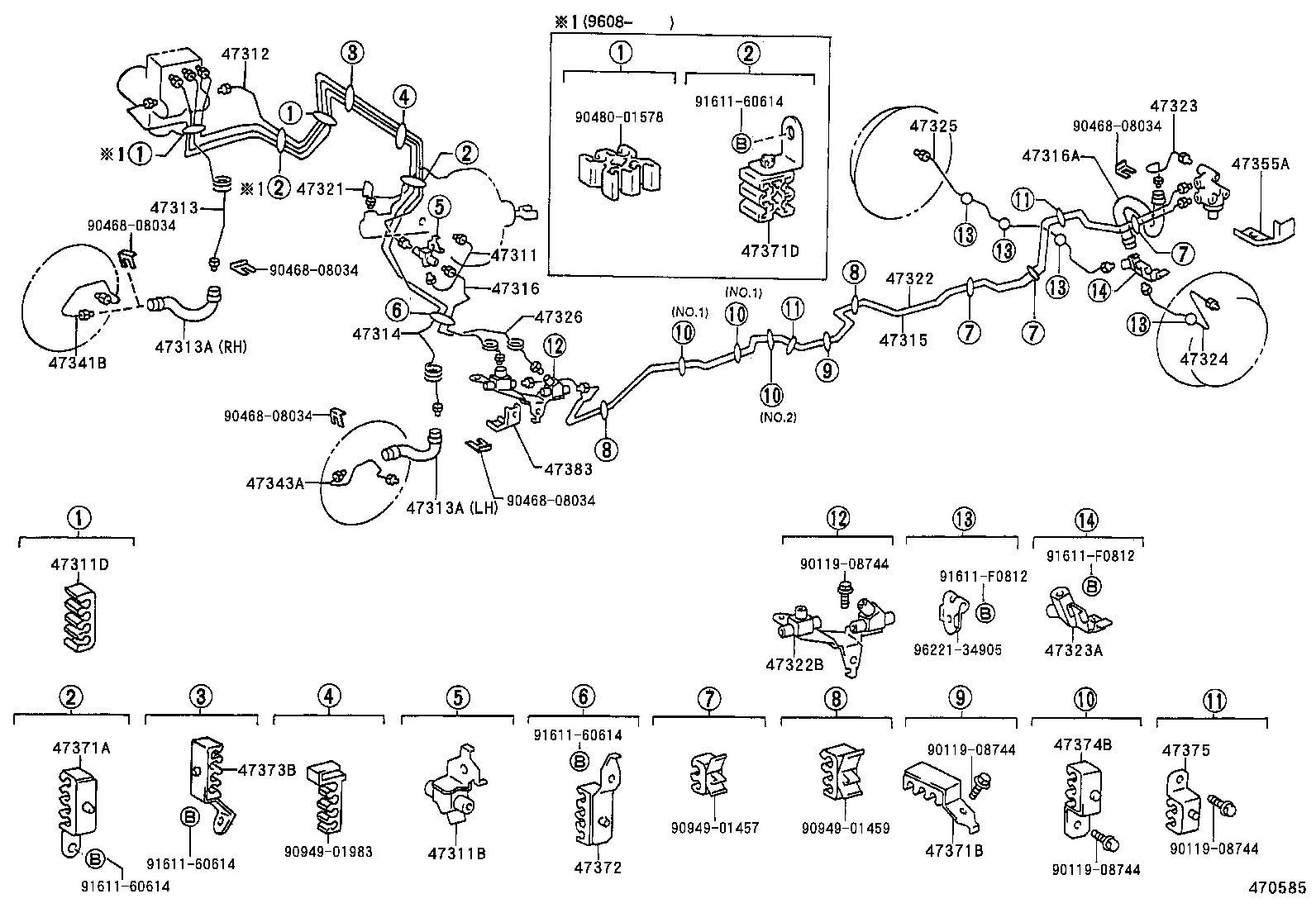

ILLUST NO. 1 OF 3(9408- )VCK11

Click highlighted areas on diagram

W(ABS)

diagram 47311 47311B 47311D 47312 47313 47313A 47313A 47314 47315 47316 47316A 47321 47322 47322B 47323 47323A 47324 47325 47326 47341B 47343A 47355A 47371A 47371B 47371D 47372 47373B 47374B 47375 47383 9011908744 9011908744 9011908744 9011908744 9046808034 9046808034 9046808034 9046808034 9046808034 9048001578 9094901457 9094901459 9094901983 9161160614 9161160614 9161160614 9161160614 91611F0812 91611F0812 9622134905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-34020

VCK11,21

W(ABS)

 1
47311-34010

RCK10,VCK1#,2#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10276

RCK10,VCK1#,2#

 1
47311D - GROMMET(FOR FRONT BRAKE TUBE)
90480-01508

VCK11,21

 1
90480-01508

VCK11,21

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-34070

VCK11

W(ABS)

 1
47312-34050

VCK11

W(ABS)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-34031

RCK10,VCK11

 1
47313-34050

VCK11

W(ABS)

 1
47313-34070

VCK11

W(ABS)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02717

RCK10,VCK1#

LH

 1
90947-02698

RCK10,VCK1#

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02717

RCK10,VCK1#

LH

 1
90947-02698

RCK10,VCK1#

RH

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-34030

VCK11

W(ABS)

 1
47314-34060

VCK11

W(ABS)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-34040

RCK10,VCK11

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-34010

VCK11

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34705

RCK10,VCK11,21

 1
96940-34706

RCK10,VCK11,21

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-34031

RCK10,VCK11

 1
47321-34070

VCK11

W(ABS)

 1
47321-34050

VCK11

W(ABS)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-34070

RCK10,VCK11

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-34060

RCK10,VCK11..HLF

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-34060

RCK10,VCK11..HLF

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-34030

VCK11

 1
47326-34050

VCK11

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-34030

VCK11,21

W(ABS)

 2
47372-34030

RCK10,VCK11,21

 1
47371-34030

VCK11,21

W(ABS)

 2
47371D - CLAMP, BRAKE TUBE, NO.8
47375-35120

VCK11,21

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-34030

VCK11,21

 1
47372-34020

VCK11,21

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47373-34010

RCK10,VCK1#,2#

 1
47373-34020

VCK11,21

W(ABS)

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-35080

RCK10,VCK11

 2
47375 - CLAMP, BRAKE TUBE, NO.5
47372-35030

VCK11,2#;RCK10,VCK10..STD

 2
Common parts
90119-08744
90468-08034
90480-01578
90949-01457
90949-01459
90949-01983
91611-60614
91611-F0812
96221-34905

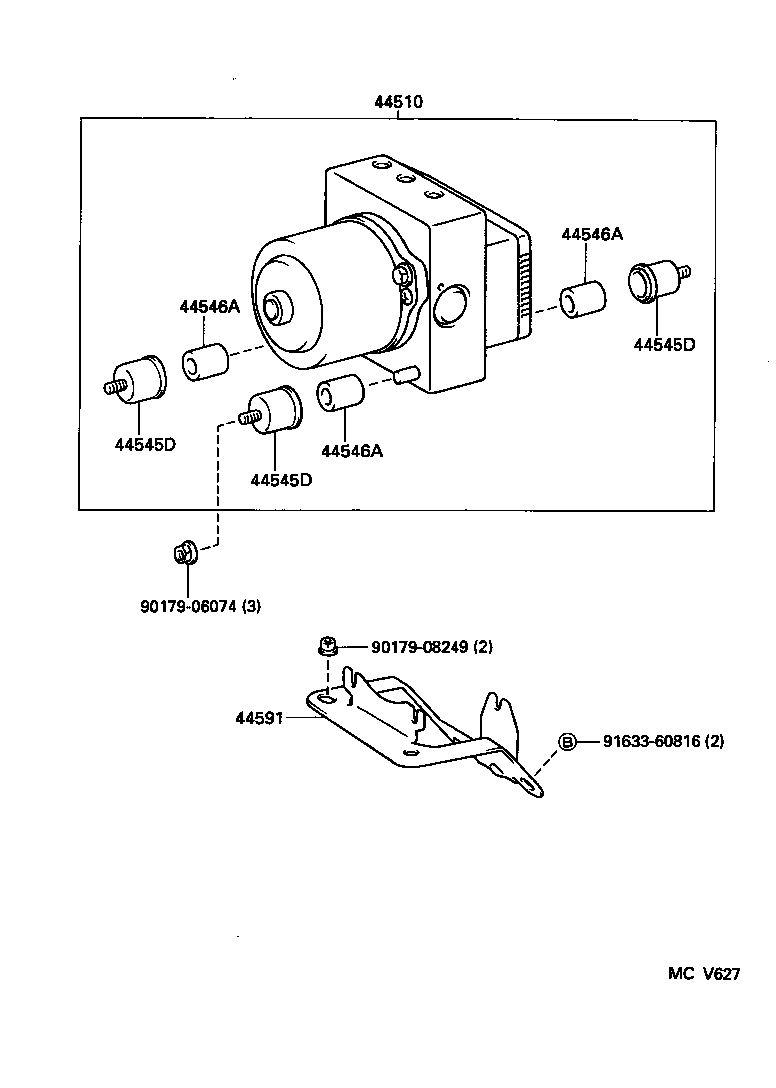

ILLUST NO. 2 OF 3(9408-9608)

Click highlighted areas on diagram

W(ABS)

diagram 44510 44545D 44545D 44545D 44546A 44546A 44546A 44591 44597 9017906074 9017906074 9017906074 9017908104 9161160814 9163260814
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-34010

VCK11,21..HLF

 1
44050-35020

VCK11,21..HLF

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12090

VCK11,21

 3
44545-35080

VCK11,21

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12090

VCK11,21

 3
44545-35080

VCK11,21

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12090

VCK11,21

 3
44545-35080

VCK11,21

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-30100

VCK11,21

 3
44546-35090

VCK11,21

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-30100

VCK11,21

 3
44546-35090

VCK11,21

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-30100

VCK11,21

 3
44546-35090

VCK11,21

 3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-34050

VCK11,21

 1
44591-34040

VCK11,21

 1
44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1
44597-34010

VCK11,21

 1
Common parts
90179-06074
90179-08104
91611-60814
91632-60814

ILLUST NO. 2 OF 3(9608- )

Click highlighted areas on diagram

W(ABS)

diagram 44510 44545D 44545D 44545D 44546A 44546A 44546A 44591 9017906074 9017908249 9163360816
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-34010

VCK11,21..HLF

 1
44050-35020

VCK11,21..HLF

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12090

VCK11,21

 3
44545-35080

VCK11,21

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12090

VCK11,21

 3
44545-35080

VCK11,21

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12090

VCK11,21

 3
44545-35080

VCK11,21

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-30100

VCK11,21

 3
44546-35090

VCK11,21

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-30100

VCK11,21

 3
44546-35090

VCK11,21

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-30100

VCK11,21

 3
44546-35090

VCK11,21

 3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-34050

VCK11,21

 1
44591-34040

VCK11,21

 1
Common parts
90179-06074
90179-08249
91633-60816
