VCK11L-TRMDKK (1994)

Toyota T100

Production Aug 1994 - Jul 1998
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9408- )VCK11,21

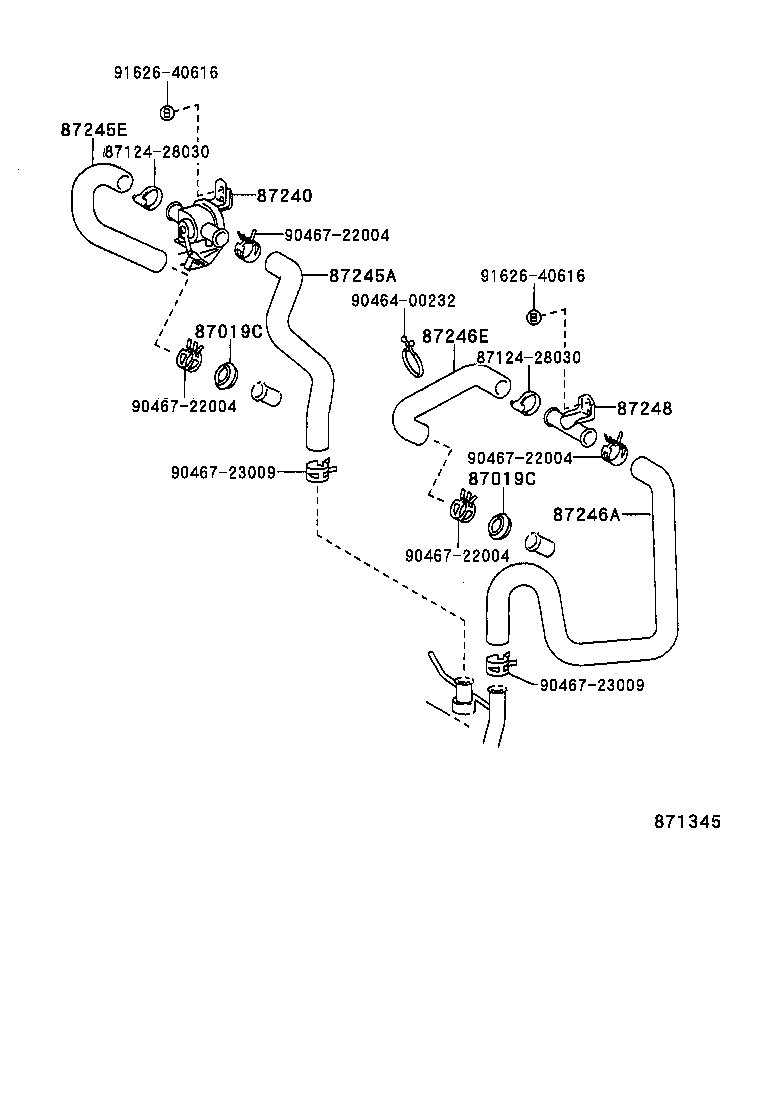

Click highlighted areas on diagram

diagram 87019C 87019C 8712428030 8712428030 87240 87245A 87245E 87246A 87246E 87248 9046400232 9046722004 9046722004 9046722004 9046722004 9046723009 9046723009 9162640616 9162640616
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36005

RCK10,VCK1#,2#

 2
87019C - GROMMET, HEATER HOSE
90480-36005

RCK10,VCK1#,2#

 2
87240 - VALVE ASSY, HEATER WATER
87240-34010

RCK10,VCK1#,2#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-34080

VCK11,21

 1
87245E - HOSE, HEATER WATER, INLET E
87245-34100

VCK11,21

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-34090

VCK11,21

 1
Common parts
87124-28030
90464-00232
90467-22004
90467-23009
91626-40616
