VCK11L-TRMDKK (1994)

Toyota T100

Production Aug 1994 - Jul 1998
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9408- )5VZFE

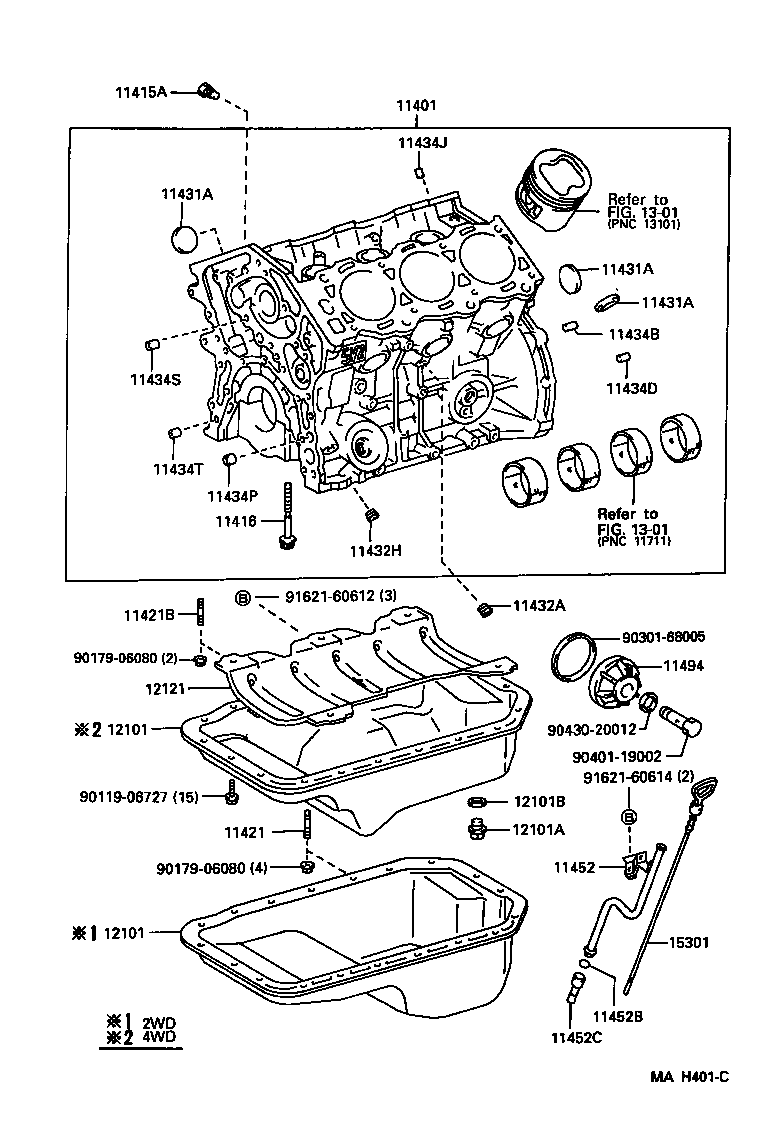

Click highlighted areas on diagram

diagram 11401 11415A 11416 11421 11421B 11431A 11431A 11431A 11432A 11432H 11434B 11434D 11434J 11434P 11434S 11434T 11452 11452B 11452C 11494 12101 12101 12101A 12101B 12121 1301 1301 15301 9011906727 9017906080 9017906080 9030168005 9040119002 9043020012 9162160612 9162160614
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69575

5VZFE..VCK11,21

 1
11401-69577

5VZFE..VCK11,21

 1
11401-69576

5VZFE..VCK11,21

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02072

3VZE,5VZFE..VCK1#,2#

 8
11421 - BOLT, STUD(FOR OIL PAN)
90116-06119

3VZE,5VZFE..VCK1#,2#

 2
11421B - BOLT, STUD(FOR OIL PAN BAFFLE PLATE)
90116-06119

5VZFE..VCK11,21

 2
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53015

3VZE,5VZFE..VCK1#,2#

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

3VZE,5VZFE..VCK1#,2#

L=22,OD=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06015

3VZE,5VZFE..VCK1#,2#

L=11,OD=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-16001

3VZE,5VZFE..VCK1#,2#

 4
11434P - PIN, STRAIGHT(FOR OIL PUMP SET)
90253-11021

3VZE,5VZFE..VCK1#,2#

L=8,OD=11

 2
11434S - PIN, RING(FOR WATER PUMP SET)
90253-11021

3VZE,5VZFE..VCK1#,2#

 2
11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET)
90253-11021

5VZFE..VCK11,21

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-62060

5VZFE..VCK11,21

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

5VZFE..VCK11,21

 1
11452C - UNION(FOR OIL LEVEL GAGE GUIDE)
90405-10033

5VZFE..VCK11,21

 1
12101 - PAN SUB-ASSY, OIL
12101-65030

3VZE,5VZFE..VCK1#

 1
12101 - PAN SUB-ASSY, OIL
12101-65030

3VZE,5VZFE..VCK1#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

3VZE,5VZFE..VCK1#,2#

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12122-62040

5VZFE..VCK11,21

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-62060

5VZFE..VCK11,21

 1
Common parts
90119-06727
90179-06080
90301-68005
90401-19002
90430-20012
91621-60612
91621-60614
Linked diagrams
1301
