VCK11L-THSDKA (1994)

Toyota T100

Production Aug 1994 - Jul 1998
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9408- )

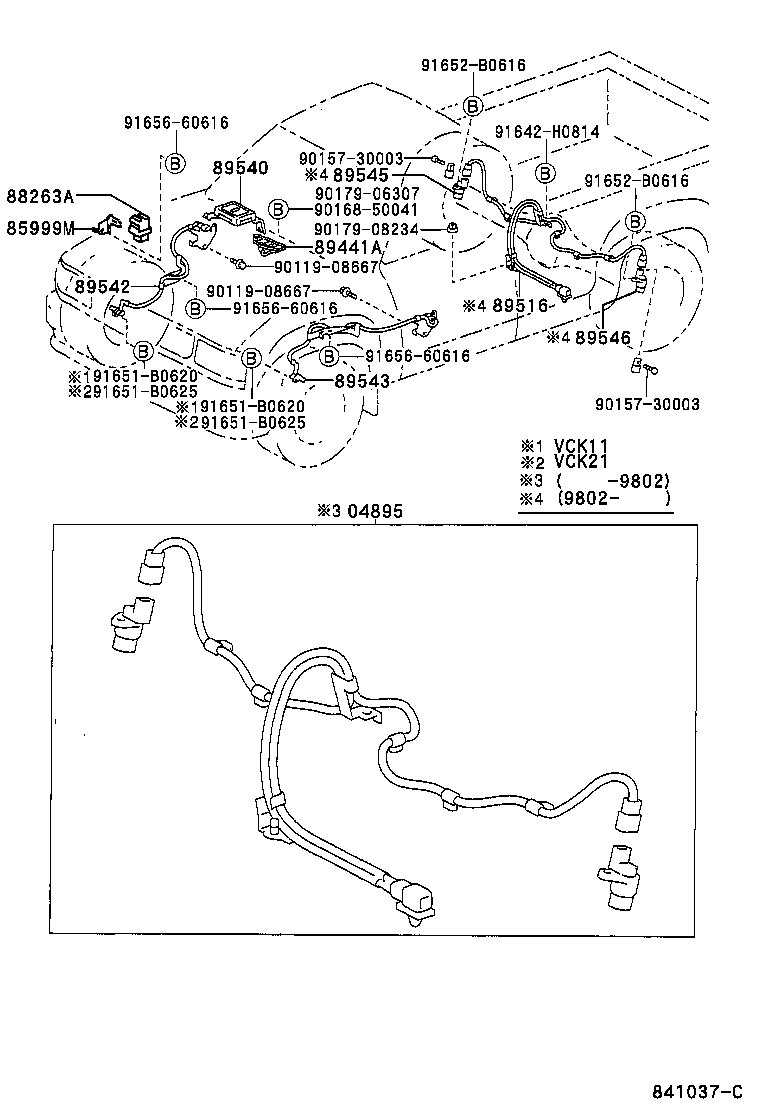

Click highlighted areas on diagram

diagram 04895 85999M 88263A 89441A 89516 89540 89542 89543 89545 89546 9011908667 9011908667 9015730003 9015730003 9016850041 9017906307 9017908234 91642H0814 91651B0620 91651B0620 91651B0625 91651B0625 91652B0616 91652B0616 9165660616 9165660616 9165660616
Part # Description Qty Price
04895 - SPEED SENSOR KIT, ABS
04895-34010

VCK11

 1
85999M - BRACKET, RELAY
85999-34030

VCK11,21

 1
88263A - RELAY, SKID CONTROL
88263-12070

VCK11,21

 1
88263-35090

VCK11,21

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-34010

VCK11

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-34021

VCK11

 1
89540-34020

VCK11

 1
89542 - SENSOR, SPEED, FRONT RH
89542-34010

VCK11

 1
89543 - SENSOR, SPEED, FRONT LH
89543-34010

VCK11

 1
89545 - SENSOR, SPEED, REAR RH
89545-35020

VCK11,21

 1
89546 - SENSOR, SPEED, REAR LH
89546-35020

VCK11,21

 1
Common parts
90119-08667
90157-30003
90168-50041
90179-06307
90179-08234
91642-H0814
91651-B0620
91651-B0625
91652-B0616
91656-60616

(9408- )

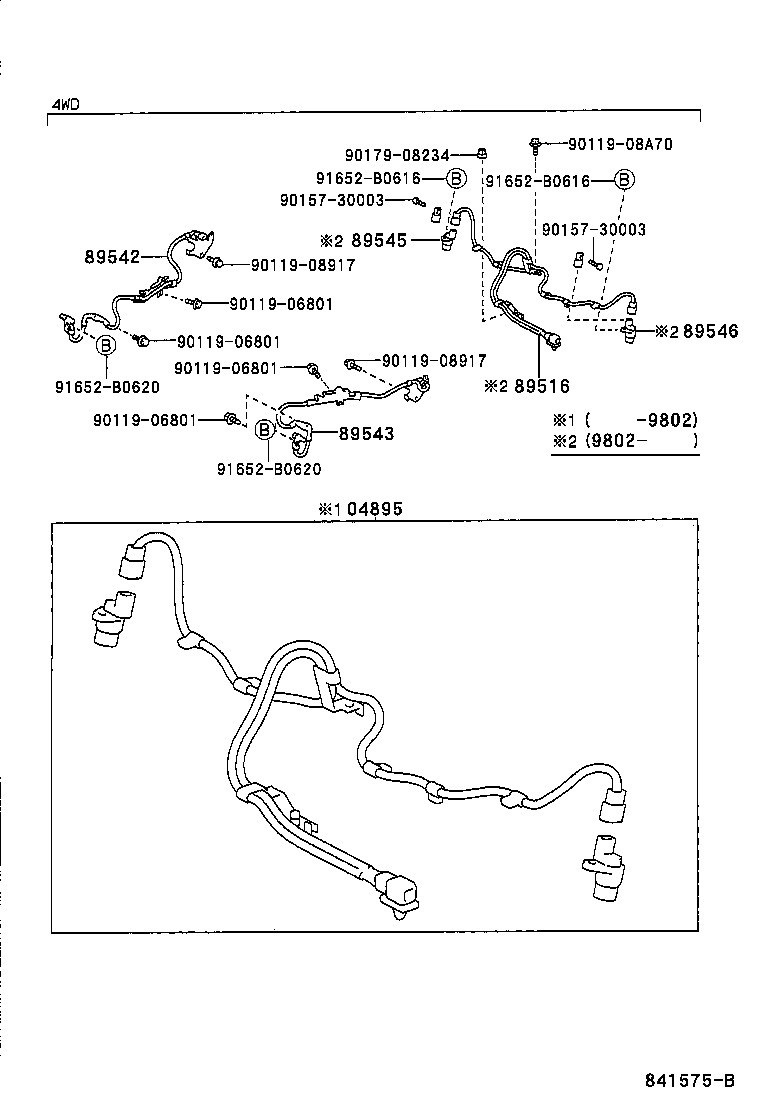

Click highlighted areas on diagram

4WD

diagram 04895 89516 89542 89543 89545 89546 9011906801 9011906801 9011906801 9011906801 9011908917 9011908917 9011908A70 9015730003 9015730003 9017908234 91652B0616 91652B0616 91652B0620 91652B0620
Part # Description Qty Price
04895 - SPEED SENSOR KIT, ABS
04895-34010

VCK11

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-34010

VCK11

 1
89542 - SENSOR, SPEED, FRONT RH
89542-34010

VCK11

 1
89543 - SENSOR, SPEED, FRONT LH
89543-34010

VCK11

 1
89545 - SENSOR, SPEED, REAR RH
89545-35020

VCK11,21

 1
89546 - SENSOR, SPEED, REAR LH
89546-35020

VCK11,21

 1
Common parts
90119-06801
90119-08917
90119-08A70
90157-30003
90179-08234
91652-B0616
91652-B0620
