VCK11L-THMDKA (1994)

Toyota T100

Production Aug 1994 - Jul 1998
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9408- )VCK11,21

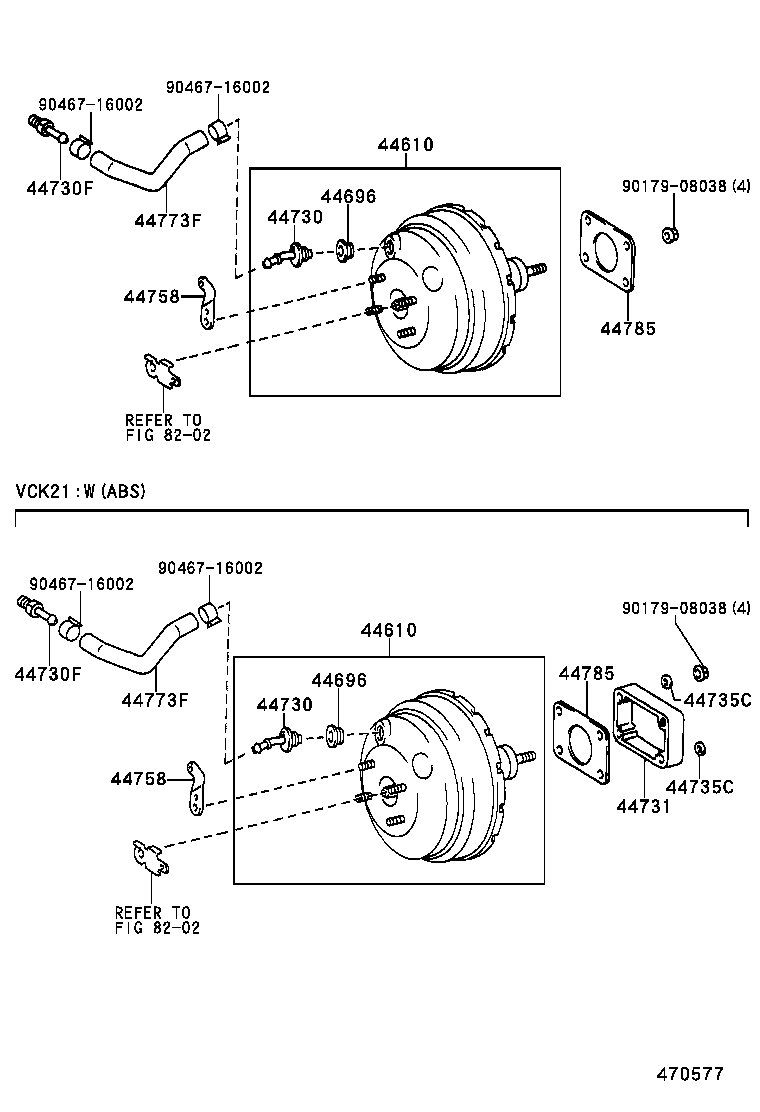

Click highlighted areas on diagram

diagram 44610 44610 44696 44696 44730 44730 44730F 44730F 44731 44735C 44735C 44758 44758 44773F 44773F 44785 44785 8202 8202 9017908038 9017908038 9046716002 9046716002 9046716002 9046716002
Part # Description Qty Price
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

VCK11,21

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

VCK11,21

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-34030

VCK11,21

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-34030

VCK11,21

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

RCK10,VCK1#,2#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

RCK10,VCK1#,2#

 1
Common parts
90179-08038
90467-16002
Linked diagrams
8202
