VCK11L-CRSDKK (1994)

Toyota T100

Production Oct 1994 - Jul 1998
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9410- )XTR

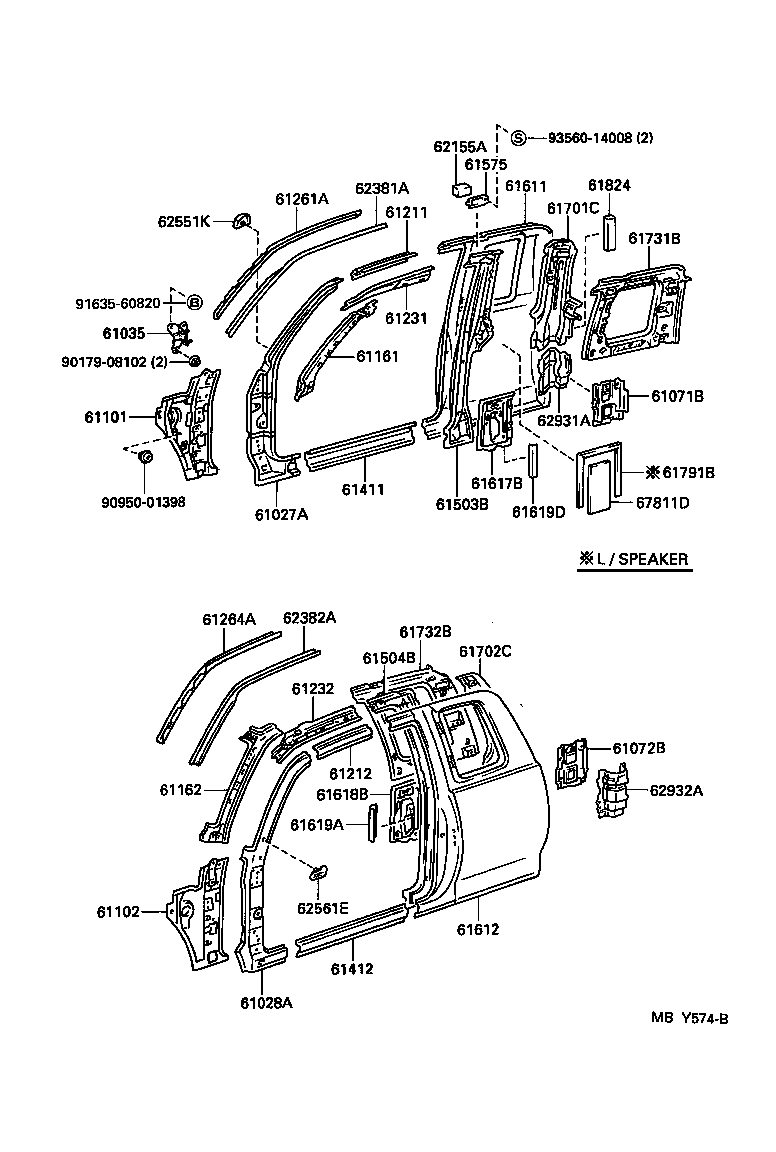

Click highlighted areas on diagram

diagram 61027A 61028A 61035 61071B 61072B 61101 61102 61161 61162 61211 61212 61231 61232 61261A 61264A 61411 61412 61503B 61504B 61575 61611 61612 61617B 61618B 61619A 61619D 61701C 61702C 61731B 61732B 61791B 61824 62155A 62381A 62382A 62551K 62561E 62931A 62932A 67811D 9017908102 9095001398 9163560820 9356014008
Part # Description Qty Price
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-34010

RCK10,VCK1#,2#

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-34010

RCK10,VCK1#,2#

 1
61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61035-34010

RCK10,VCK1#,2#

 1
61071B - PANEL SUB-ASSY, ROOF SIDE, INNER REAR RH
61071-34010

VCK11,21..XTR

 1
61072B - PANEL SUB-ASSY, ROOF SIDE, INNER REAR LH
61072-34010

VCK11,21..XTR

 1
61101 - PANEL SUB-ASSY, COWL SIDE, RH
61101-34010

RCK10,VCK1#,2#

 1
61102 - PANEL SUB-ASSY, COWL SIDE, LH
61102-34010

RCK10,VCK1#,2#

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61161-34010

RCK10,VCK1#,2#

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61162-34010

RCK10,VCK1#,2#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-34010

RCK10,VCK1#,2#

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-34010

RCK10,VCK1#,2#

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-34010

RCK10,VCK1#,2#

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-34010

RCK10,VCK1#,2#

 1
61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH
61263-34010

RCK10,VCK1#,2#

 1
61264A - CHANNEL, ROOF DRIP SIDE, FRONT LH
61264-34010

RCK10,VCK1#,2#

 1
61411 - PANEL, ROCKER, OUTER RH
61411-34010

RCK10,VCK1#,2#

 1
61412 - PANEL, ROCKER, OUTER LH
61412-34010

RCK10,VCK1#,2#

 1
61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61503-34020

VCK11,21..XTR

 1
61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61504-34020

VCK11,21..XTR

 1
61575 - PLATE, CAB REAR PILLAR, UPPER LH
61575-34010

VCK11,21..XTR

 2
61611 - PANEL, QUARTER, RH
61611-34010

VCK11,21..XTR

 1
61612 - PANEL, QUARTER, LH
61612-34010

VCK11,21..XTR

 1
61617B - PANEL, QUARTER INNER, LOWER RH
61617-34010

VCK11,21..XTR

 1
61618B - PANEL, QUARTER, INNER LOWER LH
61618-34010

VCK11,21..XTR

 1
61619A - REINFORCEMENT, QUARTER PANEL
61619-34010

VCK11,21..XTR

 1
61619D - REINFORCEMENT, QUARTER PANEL, RH
61619-34010

VCK11,21..XTR

 1
61701C - PANEL SUB-ASSY, ROOF SIDE, OUTER RH
61701-34011

VCK11,21..XTR

 1
61701-34010

VCK11,21..XTR

 1
61702C - PANEL SUB-ASSY, ROOF SIDE, OUTER LH
61702-34011

VCK11,21..XTR

 1
61702-34010

VCK11,21..XTR

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-34010

VCK11,21..XTR

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-34010

VCK11,21..XTR

 1
61791B - COVER, ROOF SIDE INNER SERVICE HOLE
61791-34010

VCK11,21..XTR

 2
61791-34010

VCK11,21..XTR..DLX

 2
61824 - PLATE, NOISE CONTROL, NO.1
61824-34010

VCK11,21..XTR

 2
62155A - PAD, COWL SIDE LOWER SILENCER
62155-34010

VCK11,21..XTR

 4
62381A - WEATHERSTRIP, ROOF SIDE RAIL, RH
62381-34010

RCK10,VCK1#,2#

 1
62382A - WEATHERSTRIP, ROOF SIDE RAIL, LH
62382-34010

RCK10,VCK1#,2#

 1
62551K - PAD, PILLAR, NO.1 RH
62551-34010

RCK10,VCK1#,2#

 1
62561E - PAD, PILLAR, NO.1 LH
62561-34010

RCK10,VCK1#,2#

 1
62931A - DUCT, QUARTER VENT, RH
62931-34010

VCK11,21..XTR

 1
62932A - DUCT, QUARTER VENT, LH
62932-34010

VCK11,21..XTR

 1
67811D - PAD, QUATER SILENCER
67812-12010

VCK11,21..XTR

 2
Common parts
90179-08102
90950-01398
91635-60820
93560-14008
