VCK11L-CRMSKA (1994)

Toyota T100

Production Oct 1994 - Jul 1998
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )5VZFE

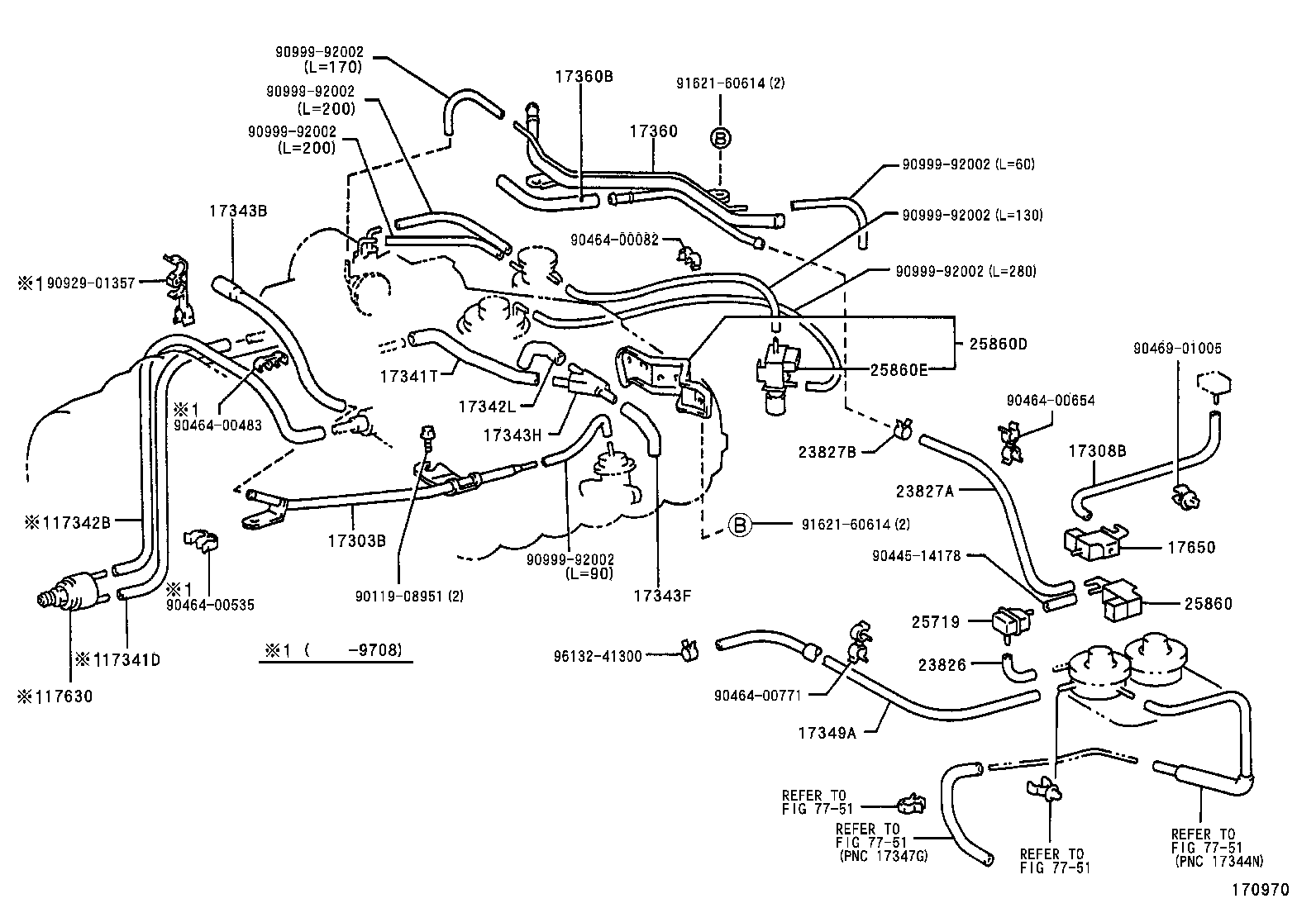

Click highlighted areas on diagram

diagram 17303B 17308B 17341D 17341T 17342B 17342L 17343B 17343F 17343H 17349A 17360 17360B 17630 17650 23826 23827A 23827B 25719 25860 25860D 25860E 7751 7751 7751 7751 9011908951 9044514178 9046400082 9046400483 9046400535 9046400654 9046400771 9046901005 9092901357 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9162160614 9162160614 9613241300
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-62020

5VZFE..VCK11,21

 1
17308B - HOSE SUB-ASSY, VACUUM
17308-62070

5VZFE..VCK11,21

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-62110

5VZFE..VCK11,21

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-62090

5VZFE..VCK11,21

 1
90445-13014

5VZFE..VCK11,21..USA

 2
90445-13014

5VZFE..VCK11,21..USA

W(AIR CONDITIONER)

 2
17349A - HOSE, AIR, NO.9
17349-62010

5VZFE..VCK11,21

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12109

5VZFE..VCK11,21

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-62020

5VZFE..VCK11,21

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-62060

5VZFE..VCK11,21

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-41300

5VZFE..VCK11,21

 1
25719 - TANK, VACUUM SURGE
25719-62040

5VZFE..VCK11,21

 1
Common parts
90119-08951
90445-14178
90464-00082
90464-00483
90464-00535
90464-00654
90464-00771
90469-01005
90929-01357
90999-92002
91621-60614
96132-41300
Linked diagrams
7751
