VCK10L-TRSREK (1992)
Toyota T100
Production
Aug 1992
-
Aug 1994
Engine
3VZE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9208-9408)VCK10..ATM

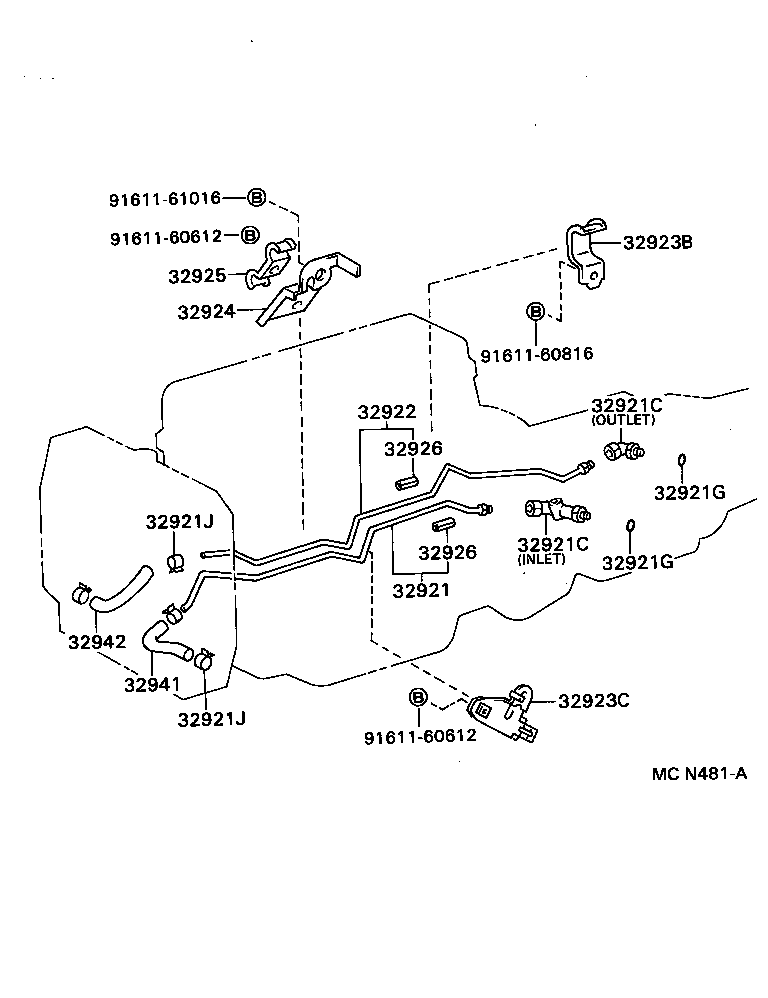

Click highlighted areas on diagram
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-34010 |
VCK10,20..ATM |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14024 |
VCK10,20..ATM INLET |
1 | ||
| 90407-16009 |
RCK10,VCK1#,2#..ATM OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14024 |
VCK10,20..ATM INLET |
1 | ||
| 90407-16009 |
RCK10,VCK1#,2#..ATM OUTLET |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
RCK10,VCK1#,2#..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
RCK10,VCK1#,2#..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
RCK10,VCK1#..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
RCK10,VCK1#..ATM |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-34010 |
VCK10,20..ATM |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32929-24060 |
RCK10,VCK1#,2#..ATM |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32909-34010 |
VCK10,20..ATM |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-35040 |
VCK10,20..ATM |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 90462-12079 |
VCK10,20..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
RCK10,VCK1#..ATM L=35,ID=10 |
6 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
RCK10,VCK1#..ATM L=35,ID=10 |
6 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-35041 |
VCK10,20..ATM |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-35011 |
VCK10..ATM |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
| 91611-61016 | ||||
