VCK10L-TRMREK (1992)

Toyota T100

Production Aug 1992 - Aug 1994
Engine 3VZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9208-9408)VCK10,20

Click highlighted areas on diagram

diagram 88320 88410 88431 88440B 88446 9009904326 9009904950 9011910367 91511G1040 91511G1050
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-34010

RCK10,VCK10,20

 1
88410 - CLUTCH ASSY, MAGNET
88410-34010

VCK10,20

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-34010

VCK10,20

 1
88440B - PULLEY ASSY, IDLE
88440-35040

VCK10,20

 1
88446 - BOLT, IDLE PULLEY
88446-35030

VCK10,20

 1
Common parts
90099-04326
90099-04950
90119-10367
91511-G1040
91511-G1050

ILLUST NO. 2 OF 3(9208- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 9009904349 9009907065 9009907114 9009907125
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-35010

VCK10,20

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-34010

VCK10,20

 1
88320 - COMPRESSOR ASSY, COOLER
88320-34010

RCK10,VCK10,20

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

RCK10,VCK1#,2#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-30290

RCK10,VCK1#,2#

 1
88410 - CLUTCH ASSY, MAGNET
88410-34010

VCK10,20

 1
Common parts
90099-04349
90099-07065
90099-07114
90099-07125

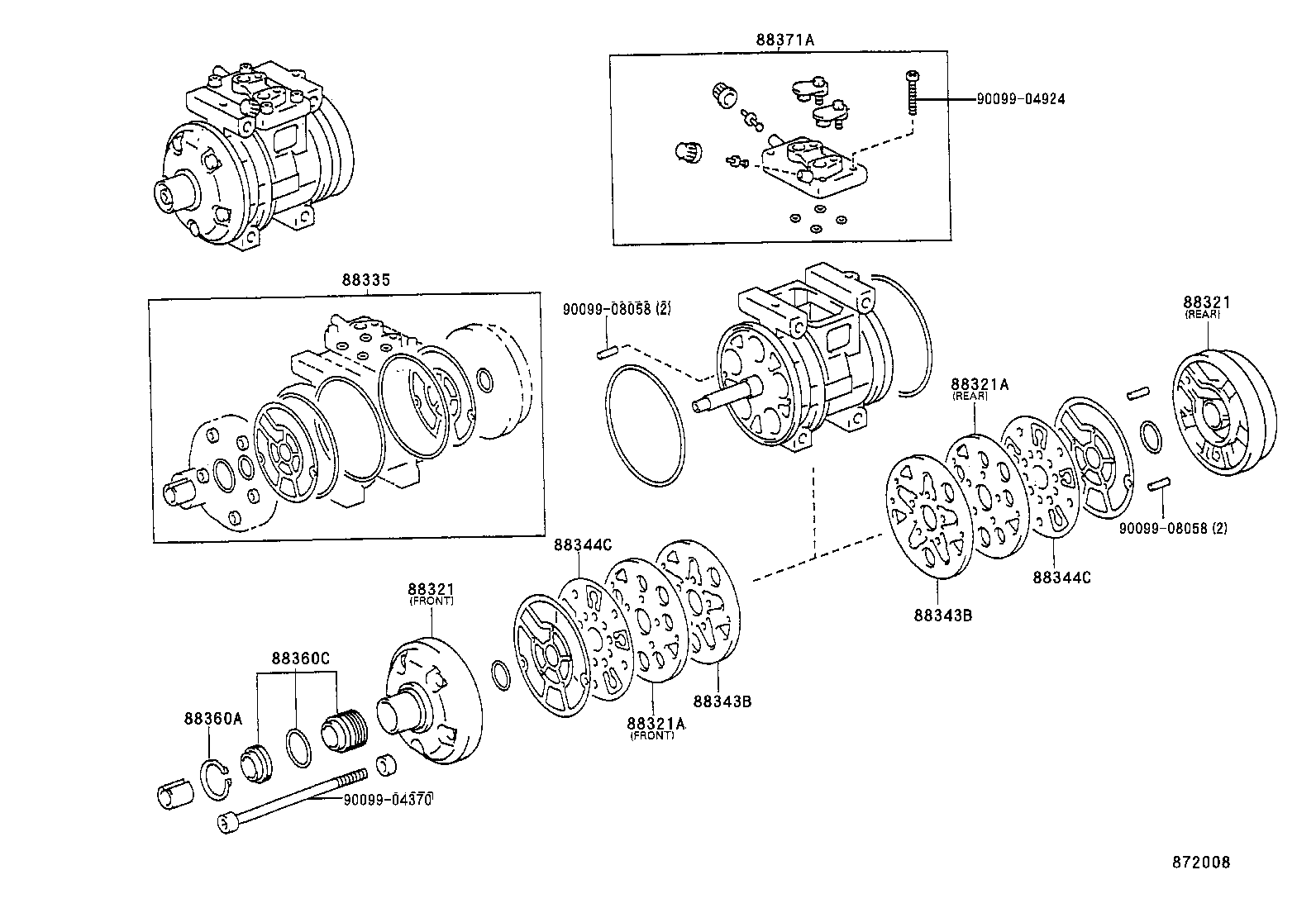

ILLUST NO. 3 OF 3(9208- )

Click highlighted areas on diagram

diagram 88321 88321 88321A 88321A 88335 88343B 88343B 88344C 88344C 88360A 88360C 88371A 9009904370 9009904924 9009908058 9009908058
Part # Description Qty Price
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-32040

RCK10,VCK1#,2#

REAR

 1
88321-32010

RCK10,VCK10,20

FRONT

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88322-32040

RCK10,VCK1#,2#

REAR

 1
88321-32010

RCK10,VCK10,20

FRONT

 1
88321A - PLATE SUB-ASSY, VALVE
88342-22010

RCK10,VCK1#,2#

REAR

 1
88341-22010

RCK10,VCK1#,2#

FRONT

 1
88321A - PLATE SUB-ASSY, VALVE
88342-22010

RCK10,VCK1#,2#

REAR

 1
88341-22010

RCK10,VCK1#,2#

FRONT

 1
88335 - GASKET KIT, OVERHAUL
88335-2B010

RCK10,VCK1#,2#

 1
88343B - REED, SUCTION VALVE
88343-14020

RCK10,VCK1#,2#

 1
88343B - REED, SUCTION VALVE
88343-14020

RCK10,VCK1#,2#

 1
88344C - REED, DISCHARGE VALVE
88344-22010

RCK10,VCK1#,2#

 2
88344C - REED, DISCHARGE VALVE
88344-22010

RCK10,VCK1#,2#

 2
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022

RCK10,VCK1#,2#

 1
88360C - SEAL ASSY, SHAFT
88360-2B010

RCK10,VCK1#,2#

 1
88371A - VALVE, SUCTION
88371-34011

RCK10,VCK10,20

 1
Common parts
90099-04370
90099-04924
90099-08058
