VCK10L-TRMREK (1992)

Toyota T100

Production Aug 1992 - Aug 1994
Engine 3VZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 5(9208- )

Click highlighted areas on diagram

diagram 82991
Part # Description Qty Price

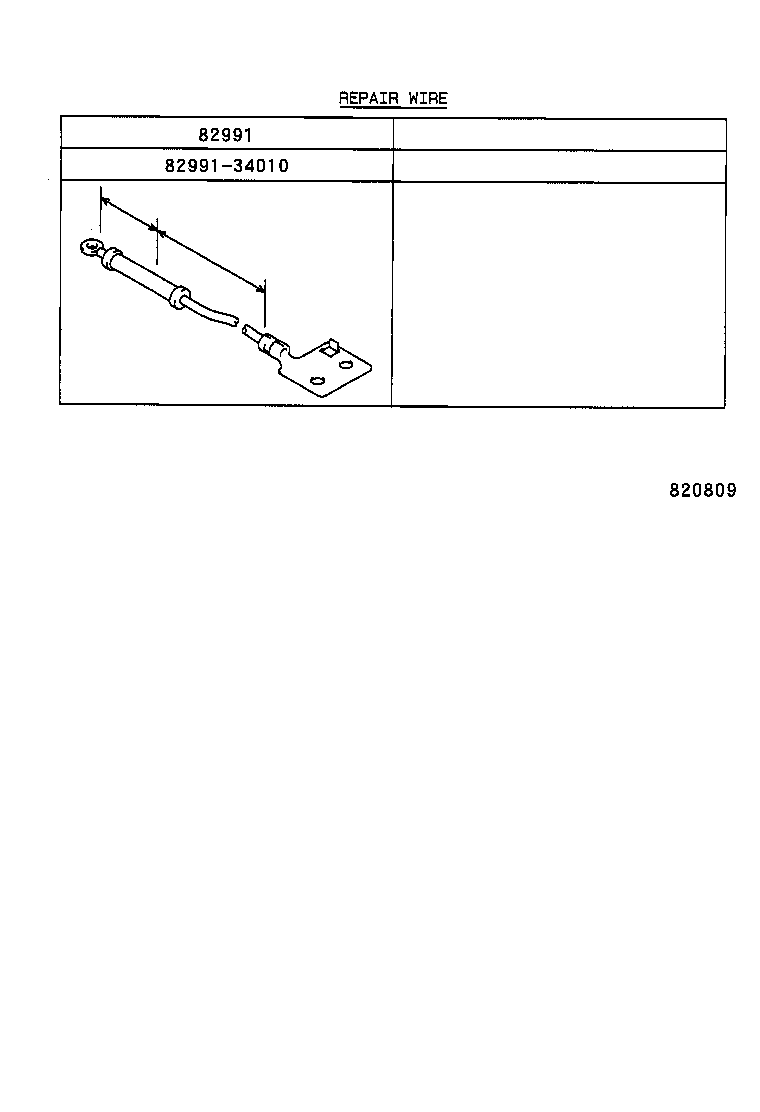

82991 - WIRE, FUSIBLE LINK REPAIR
82991-34010

VCK10,20

 1

ILLUST NO. 4 OF 5(9208- )

Click highlighted areas on diagram

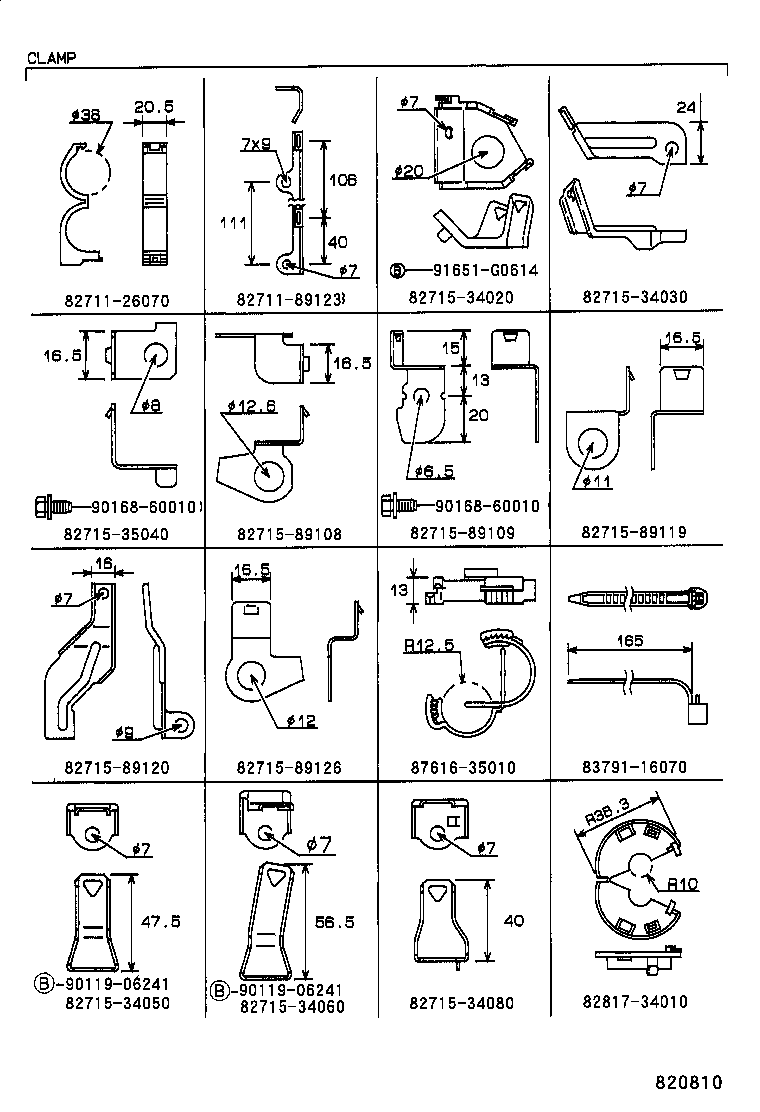

diagram 8271126070 8271189123 8271534020 8271534030 8271534050 8271534060 8271534080 8271535040 8271589108 8271589109 8271589119 8271589120 8271589126 8281734010 8379116070 8761635010 9011906241 9011906241 9016860010 9016860010 91651G0614
Part # Description Qty Price
Common parts
82711-26070
82711-89123
82715-34020
82715-34030
82715-34050
82715-34060
82715-34080
82715-35040
82715-89108
82715-89109
82715-89119
82715-89120
82715-89126
82817-34010
83791-16070
87616-35010
90119-06241
90168-60010
91651-G0614

ILLUST NO. 4 OF 5(9308- )

Click highlighted areas on diagram

diagram 8271134241 8271522070 8271534070 8271534100 8271534110 8271534120 8271534130 8271534140 8271534150 8271534160 8271534180 8271534190 8271534210 8271534430 8271535540 8271550160 9161140612 9161160812 9161160812 9162160612 9162160612 9162160612 91641C0612 91641C0612 91641C0612 91641C0814 91641C0814 91641C0814 9165141016
Part # Description Qty Price
Common parts
82711-34241
82715-22070
82715-34070
82715-34100
82715-34110
82715-34120
82715-34130
82715-34140
82715-34150
82715-34160
82715-34180
82715-34190
82715-34210
82715-34430
82715-35540
82715-50160
91611-40612
91611-60812
91621-60612
91641-C0612
91641-C0814
91651-41016

ILLUST NO. 5 OF 5(9308- )

Click highlighted areas on diagram

diagram 82345 82345
Part # Description Qty Price

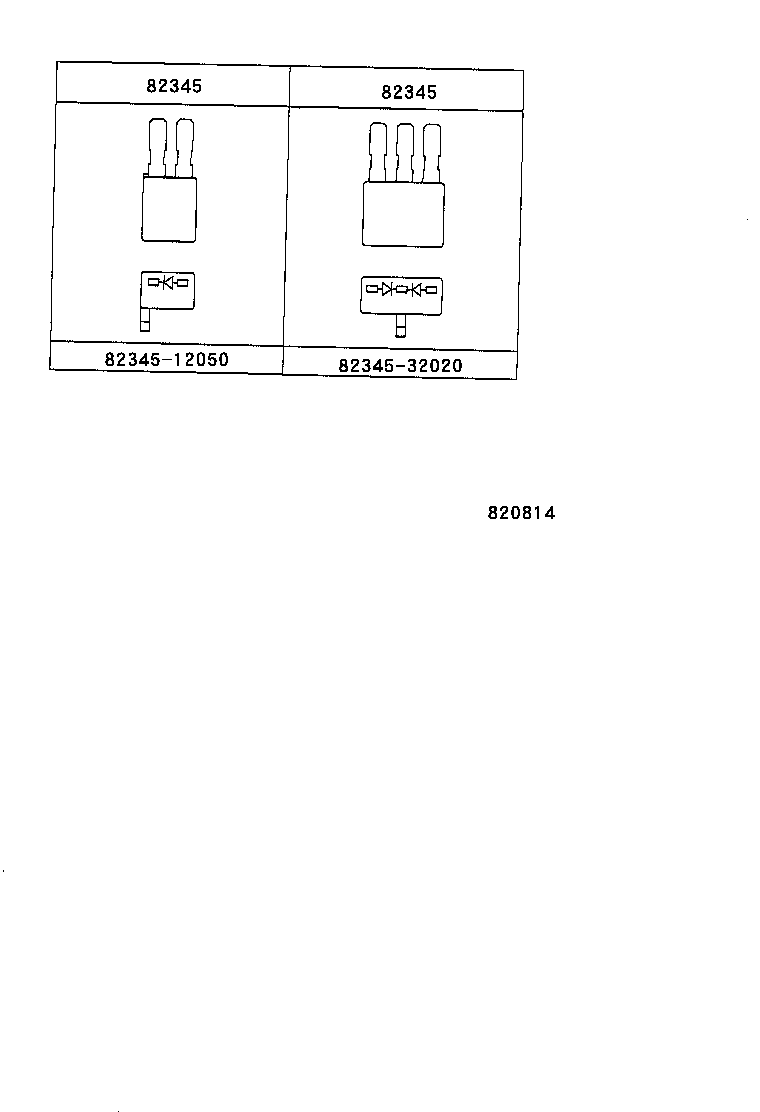

82345 - DIODE
82345-12050

VCK1#,2#..MTM..CND

*89

 2
82345 - DIODE
82345-12050

VCK1#,2#..MTM..CND

*89

 2

ILLUST NO. 1 OF 5(9208- )

Click highlighted areas on diagram

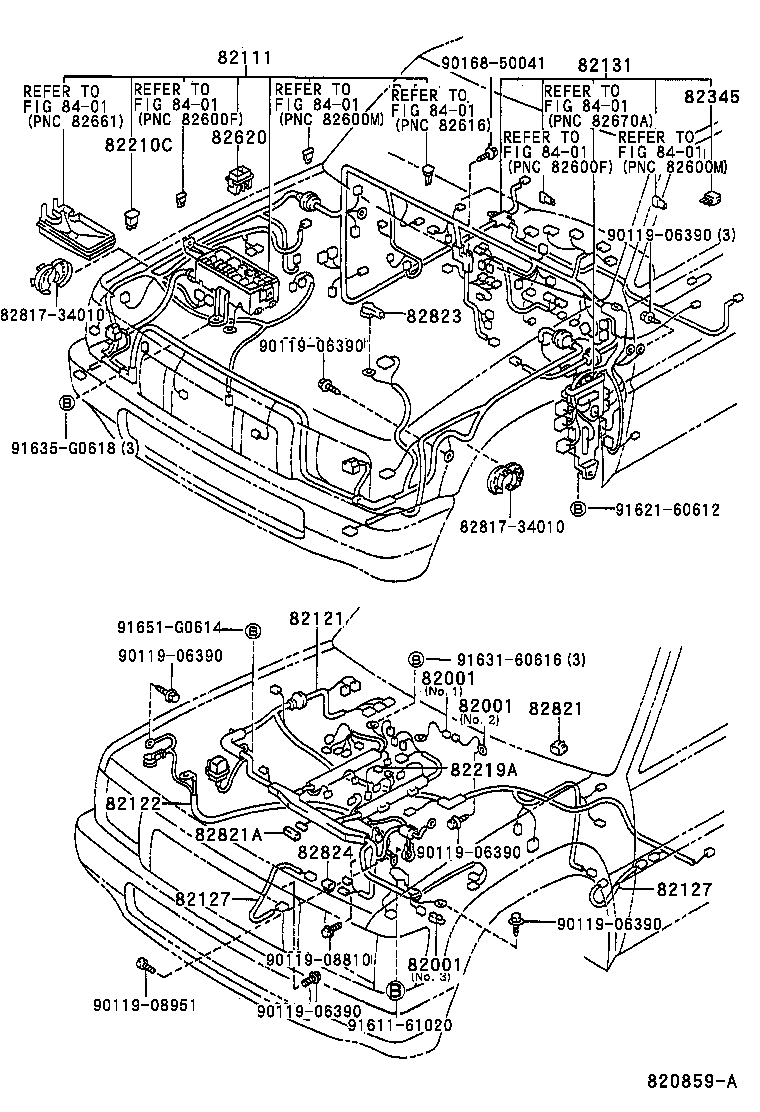

diagram 82001 82001 82001 82111 82121 82122 82127 82127 82131 82210C 82219A 82345 82620 8281734010 8281734010 82821 82821A 82823 82824 8401 8401 8401 8401 8401 8401 8401 9011906390 9011906390 9011906390 9011906390 9011906390 9011906390 9011908810 9011908951 9016850041 9161161020 9162160612 9163160616 91635G0618 91651G0614
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07301

VCK10,20

NO.2

 1
90980-07340

VCK10,20

NO.1

 1
82001 - CABLE, BOND, NO.1
90980-07301

VCK10,20

NO.2

 1
90980-07340

VCK10,20

NO.1

 1
82001 - CABLE, BOND, NO.1
90980-07301

VCK10,20

NO.2

 1
90980-07340

VCK10,20

NO.1

 1
82111 - WIRE, ENGINE ROOM MAIN
82111-34021

VCK10,20..CND

 1
82111-34020

VCK10,20..CND

 1
82121 - WIRE, ENGINE
82121-34010

VCK10..MTM

 1
82121-34021

VCK10..MTM

 1
82122 - WIRE, ENGINE, NO.2
82122-34011

VCK10,20

 1
82122-34010

VCK10,20

 1
82131 - WIRE, COWL
82131-34160

VCK10,20..MTM..STD..CND

 1
82131-34190

VCK10,20..MTM..STD..CND

W(ABS) & W(CRUISE CONTROL)

 1
82131-34170

VCK10,20..MTM..STD..CND

W(ABS)

 1
82131-34180

VCK10,20..MTM..STD..CND

W(CRUISE CONTROL)

 1
82131-34191

VCK10,20..MTM..STD..CND

W(ABS) & W(CRUISE CONTROL)

 1
82131-34161

VCK10,20..MTM..STD..CND

 1
82131-34171

VCK10,20..MTM..STD..CND

W(ABS)

 1
82131-34181

VCK10,20..MTM..STD..CND

W(CRUISE CONTROL)

 1
82210C - FUSIBLE LINK
90982-08203

VCK1#,2#

80A,TERM.:MALE,BLK

 1
82219A - WIRE, SENSOR
82219-35010

VCK10,20

 1
82345 - DIODE
82345-12050

VCK1#,2#..MTM..CND

*89

 2
82620 - BLOCK ASSY, FUSIBLE LINK
82620-89101

RCK10,VCK1#,2#

 1
82821 - RETAINER, HEADLAMP HARNESS
82821-35040

VCK10,20

 1
82823 - CAP, TERMINAL, NO.1
82823-22050

RCK10,VCK1#,2#

 1
Common parts
82817-34010
90119-06390
90119-08810
90119-08951
90168-50041
91611-61020
91621-60612
91631-60616
91635-G0618
91651-G0614
Linked diagrams
8401

ILLUST NO. 2 OF 5(9208- )

Click highlighted areas on diagram

diagram 82151 82152 82163 82163 82164 82171
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-34010

RCK10,VCK1#,2#

 1
82152 - WIRE, FRONT DOOR, LH
82152-34010

RCK10,VCK1#,2#

 1
82164 - WIRE, FRAME
82164-34010

VCK10,20..STD

 1
82164-34011

VCK10,20..STD

 1
82164-34020

VCK10,20..STD

W(ABS)

 1
82164-34021

VCK10,20..STD

W(ABS)

 1
82171 - WIRE, ROOF, NO.1
82171-34010

VCK10,20..STD

 1
82171-34011

RCK10,VCK10,20..STD

 1
