VCK10L-TRMREK (1992)

Toyota T100

Production Aug 1992 - Aug 1994
Engine 3VZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

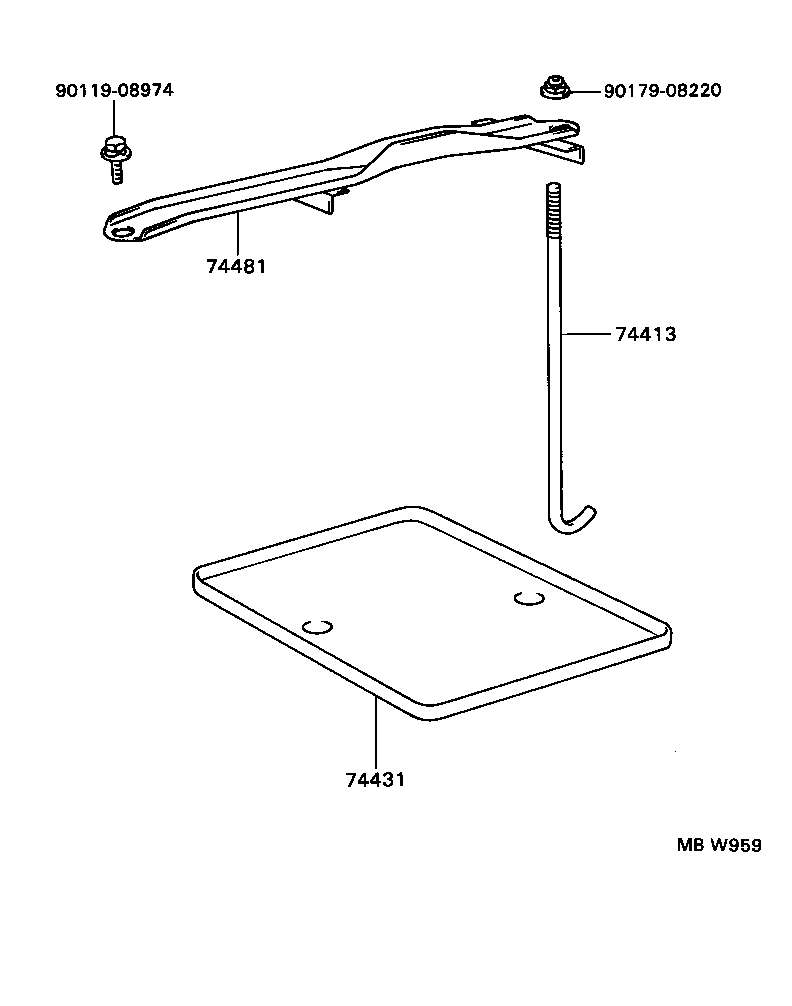

Click highlighted areas on diagram

diagram 74413 74431 74481 9011908974 9017908220
Part # Description Qty Price
74413 - BOLT, BATTERY CLAMP
74451-35050

RCK10,VCK1#,2#

 1
74451-35040

RCK10,VCK10,20

 1
74431 - TRAY, BATTERY
74431-14030

VCK10,20..CND;RCK10,VCK11,21

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-34010

RCK10,VCK1#,2#

 1
Common parts
90119-08974
90179-08220
