VCK10L-TRMREK (1992)

Toyota T100

Production Aug 1992 - Aug 1994
Engine 3VZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208-9408)RCK10,VCK10 ; (9408- )RCK10,VCK11

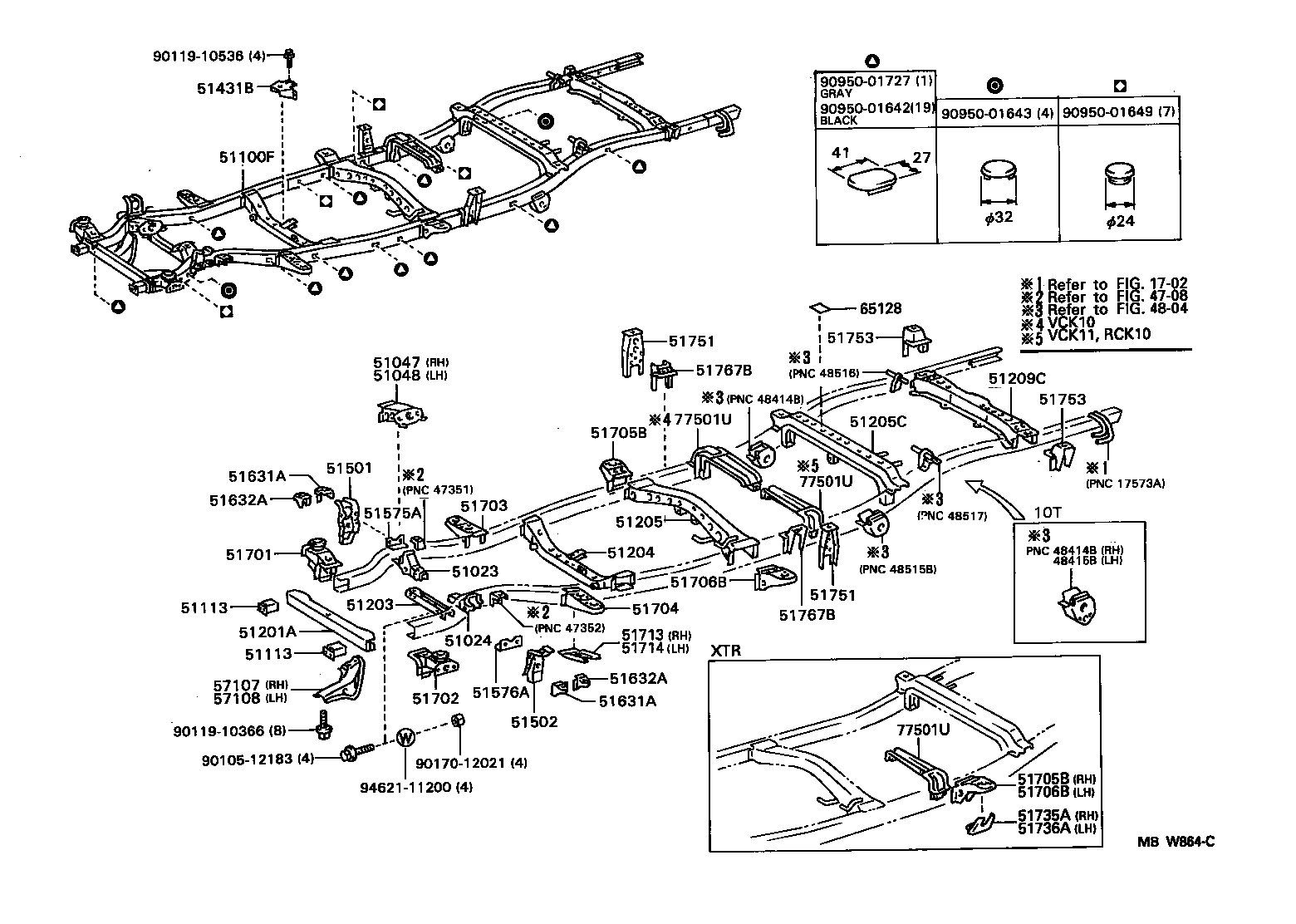

Click highlighted areas on diagram

diagram 1702 4708 4804 51023 51024 51047 51048 51100F 51113 51113 51201A 51203 51204 51205 51205C 51209C 51431B 51501 51502 51575A 51576A 51631A 51631A 51632A 51632A 51701 51702 51703 51704 51705B 51705B 51706B 51706B 51713 51714 51735A 51736A 51751 51751 51753 51753 51767B 51767B 57107 57108 65128 77501U 77501U 77501U 9010512183 9011910366 9011910536 9017012021 9095001642 9095001643 9095001649 9095001727 9462111200
Part # Description Qty Price
51023 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51023-34010

RCK10,VCK1#

 1
51024 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51024-34010

RCK10,VCK1#

 1
51047 - BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, RH
51401-34010

RCK10,VCK1#

 1
51048 - BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, LH
51402-34010

RCK10,VCK10

 1
51100F - FRAME SUB-ASSY
51001-34011

VCK10..HLF

 1
51001-34010

VCK10..HLF

 1
51001-34012

VCK10..HLF

 1
51113 - EXTENSOIN, SIDE RAIL, FRONT
51113-34011

VCK10

 2
51113-34010

VCK10,20

 2
51113-34020

RCK10,VCK1#,2#

 2
51113 - EXTENSOIN, SIDE RAIL, FRONT
51113-34011

VCK10

 2
51113-34010

VCK10,20

 2
51113-34020

RCK10,VCK1#,2#

 2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-34010

RCK10,VCK1#

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-34010

RCK10,VCK1#

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-34011

VCK10

 1
51203-34010

VCK10

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-34010

VCK10

 1
51204-34011

VCK10

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-34011

VCK10,20

 1
51205-34010

VCK10,20

 1
51205-34012

VCK10,20

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51209-34010

VCK10,20

 1
51209-34011

RCK10,VCK10,20

 1
51431B - BRACKET, ENGINE REAR MOUNTING
51431-34010

VCK10;VCK11..ATM

 1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-34010

RCK10,VCK1#

 1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-34010

RCK10,VCK1#

 1
51575A - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 RH
51575-34010

RCK10,VCK1#

 1
51576A - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2 LH
51576-34010

RCK10,VCK1#

 1
51631A - STOPPER, FRONT SUSPENSION REBOUND, NO.1
51631-34010

RCK10,VCK1#

 2
51631A - STOPPER, FRONT SUSPENSION REBOUND, NO.1
51631-34010

RCK10,VCK1#

 2
51632A - STOPPER, FRONT SUSPENSION REBOUND, NO.2
51632-34010

RCK10,VCK1#

 2
51632A - STOPPER, FRONT SUSPENSION REBOUND, NO.2
51632-34010

RCK10,VCK1#

 2
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-34010

RCK10,VCK1#

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51702-34010

RCK10,VCK1#

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-34010

RCK10,VCK1#..RCB

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-34010

RCK10,VCK1#..RCB

 1
51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51705-34010

RCK10,VCK1#..RCB

 1
51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51705-34010

RCK10,VCK1#..RCB

 1
51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51706-34010

RCK10,VCK1#..RCB

 1
51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51706-34010

RCK10,VCK1#..RCB

 1
51751 - BRACKET, BODY SUPPORT, NO.1
51751-34010

VCK10

 2
51751-34011

RCK10,VCK10

 2
51751 - BRACKET, BODY SUPPORT, NO.1
51751-34010

VCK10

 2
51751-34011

RCK10,VCK10

 2
51753 - BRACKET, BODY SUPPORT, NO.2
51753-34010

RCK10,VCK1#

 2
51753 - BRACKET, BODY SUPPORT, NO.2
51753-34010

RCK10,VCK1#

 2
51767B - REINFORCEMENT, BODY SUPPORT BRACKET
51767-34010

RCK10,VCK1#..RCB

 2
51767B - REINFORCEMENT, BODY SUPPORT BRACKET
51767-34010

RCK10,VCK1#..RCB

 2
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-34010

RCK10,VCK1#

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-34010

RCK10,VCK1#

 1
77501U - BRACKET SUB-ASSY, FUEL TANK
77501-34010

RCK10,VCK1#,2#

 1
77501U - BRACKET SUB-ASSY, FUEL TANK
77501-34010

RCK10,VCK1#,2#

 1
77501U - BRACKET SUB-ASSY, FUEL TANK
77501-34010

RCK10,VCK1#,2#

 1
Common parts
90105-12183
90119-10366
90119-10536
90170-12021
90950-01642
90950-01643
90950-01649
90950-01727
94621-11200
Linked diagrams
1702
4708
4804
