VCK10L-TRMREK (1992)

Toyota T100

Production Aug 1992 - Aug 1994
Engine 3VZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208-9408)RCK10,VCK10 ; (9408- )RCK10,VCK11

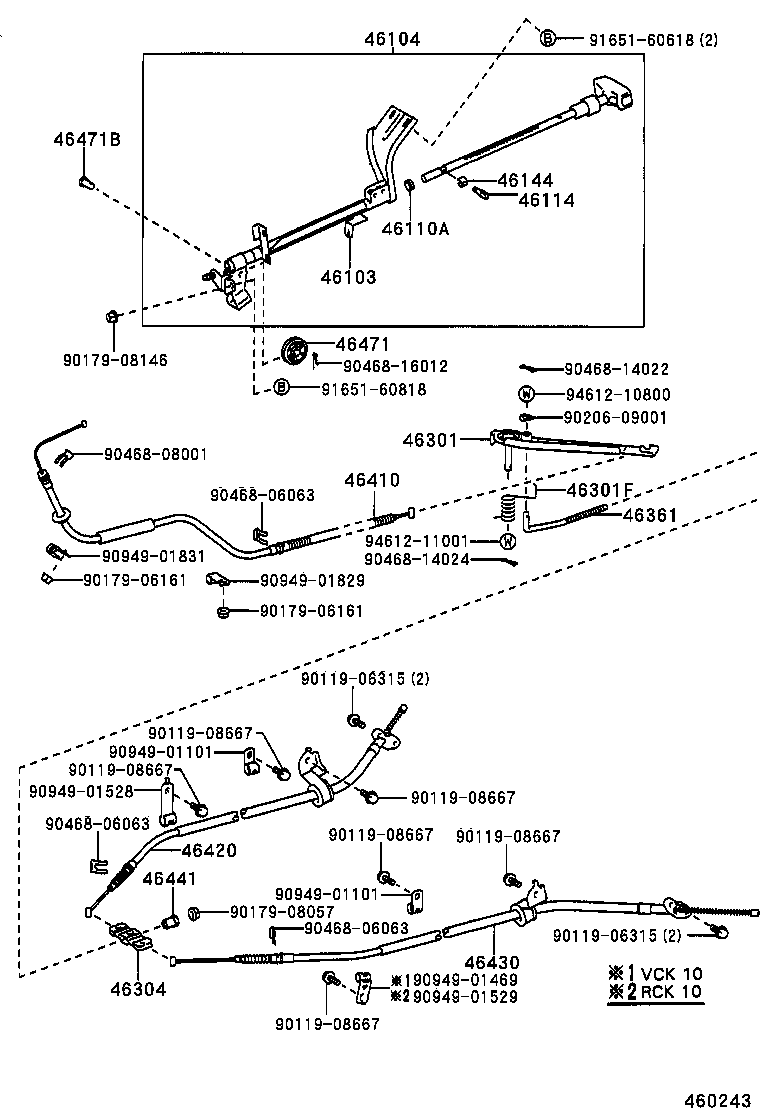

Click highlighted areas on diagram

diagram 46103 46104 46110A 46114 46144 46301 46301F 46304 46361 46410 46420 46430 46441 46471 46471B 9011906315 9011906315 9011908667 9011908667 9011908667 9011908667 9011908667 9011908667 9017906161 9017906161 9017908057 9017908146 9020609001 9046806063 9046806063 9046806063 9046808001 9046814022 9046814024 9046816012 9094901101 9094901101 9094901469 9094901528 9094901529 9094901829 9094901831 9165160618 9165160818 9461210800 9461211001
Part # Description Qty Price
46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46103-34010

RCK10,VCK1#,2#

 1
46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46104-34010

RCK10,VCK1#,2#

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-11195

RCK10,VCK1#,2#

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

RCK10,VCK1#,2#

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-30020

RCK10,VCK1#,2#

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-34010

RCK10,VCK1#

 1
46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)
90508-32018

RCK10,VCK1#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-22020

RCK10,VCK1#

 1
46361 - ROD, PARKING BRAKE PULL
46361-35070

RCK10,VCK1#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-34010

VCK10

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-34010

VCK10

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-34010

VCK10

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-35010

RCK10,VCK1#

 1
46471 - PULLEY, WIRE
46471-20010

RCK10,VCK1#,2#

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08017

RCK10,VCK1#,2#

 1
Common parts
90119-06315
90119-08667
90179-06161
90179-08057
90179-08146
90206-09001
90468-06063
90468-08001
90468-14022
90468-14024
90468-16012
90949-01101
90949-01469
90949-01528
90949-01529
90949-01829
90949-01831
91651-60618
91651-60818
94612-10800
94612-11001
