VCK10L-TRMREA (1992)
Toyota T100
ILLUST NO. 1 OF 2(9208-9408)VCK10,20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-34010 |
VCK10,20 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-34011 |
VCK10,20 |
1 | ||
| 77026-34010 |
VCK10,20 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-34010 |
VCK10,20 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-24041 |
RCK10,VCK1#,2# L=270 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-34010 |
VCK10 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-34010 |
VCK10 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-34010 |
RCK10,VCK1#,2# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
RCK10,VCK1#,2# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-34010 |
VCK10,20 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-34010 |
RCK10,VCK1# L=280 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-34010 |
VCK10,20 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35080 |
RCK10,VCK1#,2# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
RCK10,VCK1#,2# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
RCK10,VCK1#,2# |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-34010 |
VCK10 |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-34010 |
VCK10 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-34010 |
RCK10,VCK1#,2# |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-34010 |
RCK10,VCK1#,2# |
4 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-34020 |
RCK10,VCK1#,2# RR |
1 | ||
| 77681-34010 |
RCK10,VCK1#,2# FR |
1 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-34020 |
RCK10,VCK1#,2# RR |
1 | ||
| 77681-34010 |
RCK10,VCK1#,2# FR |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34010 |
VCK10,20 L=240 |
2 | ||
| 77651-34040 |
VCK10,20 L=490 |
1 | ||
| 77651-34020 |
VCK10,20 L=70 |
2 | ||
| 77651-34030 |
VCK10,20 L=425 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34010 |
VCK10,20 L=240 |
2 | ||
| 77651-34040 |
VCK10,20 L=490 |
1 | ||
| 77651-34020 |
VCK10,20 L=70 |
2 | ||
| 77651-34030 |
VCK10,20 L=425 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34010 |
VCK10,20 L=240 |
2 | ||
| 77651-34040 |
VCK10,20 L=490 |
1 | ||
| 77651-34020 |
VCK10,20 L=70 |
2 | ||
| 77651-34030 |
VCK10,20 L=425 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34010 |
VCK10,20 L=240 |
2 | ||
| 77651-34040 |
VCK10,20 L=490 |
1 | ||
| 77651-34020 |
VCK10,20 L=70 |
2 | ||
| 77651-34030 |
VCK10,20 L=425 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34010 |
VCK10,20 L=240 |
2 | ||
| 77651-34040 |
VCK10,20 L=490 |
1 | ||
| 77651-34020 |
VCK10,20 L=70 |
2 | ||
| 77651-34030 |
VCK10,20 L=425 |
1 | ||
| Common parts | ||||
| 90119-08667 | ||||
| 90119-10477 | ||||
| 90159-40155 | ||||
| 90159-50001 | ||||
| 90159-50219 | ||||
| 90386-01004 | ||||
| 90460-26002 | ||||
| 90460-46003 | ||||
| 90461-08699 | ||||
| 90461-08700 | ||||
| 90480-01306 | ||||
| 90480-01489 | ||||
| 90541-06058 | ||||
| 91611-60610 | ||||
| 91645-C1040 | ||||
| 91655-60618 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(9208-9408)VCK10,20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091E - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-65010 |
3RZFE,3VZE..RCK10,VCK10,20 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-34010 |
VCK10 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-34010 |
VCK10 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-34010 |
VCK10 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-34010 |
VCK10 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-34010 |
VCK10,20 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06060 |
RCK10,VCK10,20 *H,L=600 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-34010 |
VCK10,20 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
VCK10,20 *H,L=260 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06048 |
RCK10,VCK10,20 *H,L=480 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-65020 |
VCK10,20 *H,L=300 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-34010 |
VCK10,20 |
1 | ||
| 77750C - HOSE, FUEL, NO.3 (FOR CHARCOAL CANISTER) | ||||
| 23826-65010 |
VCK10,20 L=650 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-34010 |
VCK10 |
1 | ||
| Common parts | ||||
| 47372-35050 | ||||
| 77285-35140 | ||||
| 90119-08744 | ||||
| 90179-06161 | ||||
| 90461-08334 | ||||
| 90461-08418 | ||||
| 90461-10722 | ||||
| 90461-10779 | ||||
| 90464-00403 | ||||
| 90464-00500 | ||||
| 90467-11009 | ||||
| 90480-01489 | ||||
| 90480-18005 | ||||
| 91611-60614 | ||||
| 91651-G0816 | ||||
| 96132-41100 | ||||

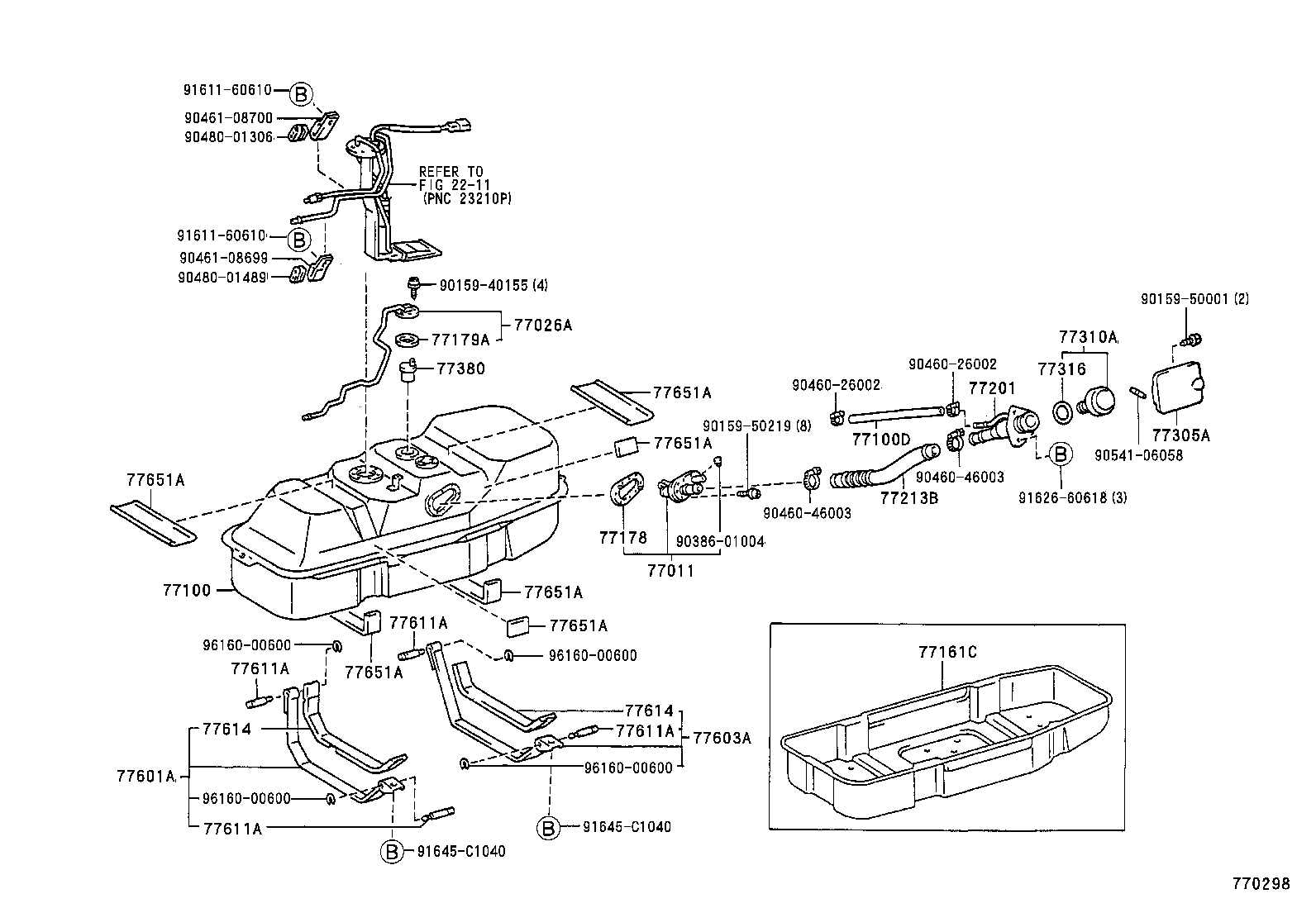

ILLUST NO. 1 OF 2(9310-9408)RCK10 ; (9408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-34010 |
VCK10,20 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-34011 |
VCK10,20 |
1 | ||
| 77026-34010 |
VCK10,20 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-34010 |
VCK10,20 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-24041 |
RCK10,VCK1#,2# L=270 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-34010 |
VCK10 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-34010 |
RCK10,VCK1#,2# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
RCK10,VCK1#,2# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-34010 |
VCK10,20 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-34010 |
RCK10,VCK1# L=280 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-34010 |
VCK10,20 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35080 |
RCK10,VCK1#,2# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
RCK10,VCK1#,2# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
RCK10,VCK1#,2# |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-34010 |
VCK10 |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-34010 |
VCK10 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-34010 |
RCK10,VCK1#,2# |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-34010 |
RCK10,VCK1#,2# |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-34010 |
RCK10,VCK1#,2# |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-34010 |
RCK10,VCK1#,2# |
4 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-34020 |
RCK10,VCK1#,2# RR |
1 | ||
| 77681-34010 |
RCK10,VCK1#,2# FR |
1 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77681-34020 |
RCK10,VCK1#,2# RR |
1 | ||
| 77681-34010 |
RCK10,VCK1#,2# FR |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34010 |
VCK10,20 L=240 |
2 | ||
| 77651-34040 |
VCK10,20 L=490 |
1 | ||
| 77651-34020 |
VCK10,20 L=70 |
2 | ||
| 77651-34030 |
VCK10,20 L=425 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34010 |
VCK10,20 L=240 |
2 | ||
| 77651-34040 |
VCK10,20 L=490 |
1 | ||
| 77651-34020 |
VCK10,20 L=70 |
2 | ||
| 77651-34030 |
VCK10,20 L=425 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34010 |
VCK10,20 L=240 |
2 | ||
| 77651-34040 |
VCK10,20 L=490 |
1 | ||
| 77651-34020 |
VCK10,20 L=70 |
2 | ||
| 77651-34030 |
VCK10,20 L=425 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34010 |
VCK10,20 L=240 |
2 | ||
| 77651-34040 |
VCK10,20 L=490 |
1 | ||
| 77651-34020 |
VCK10,20 L=70 |
2 | ||
| 77651-34030 |
VCK10,20 L=425 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34010 |
VCK10,20 L=240 |
2 | ||
| 77651-34040 |
VCK10,20 L=490 |
1 | ||
| 77651-34020 |
VCK10,20 L=70 |
2 | ||
| 77651-34030 |
VCK10,20 L=425 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-34010 |
VCK10,20 L=240 |
2 | ||
| 77651-34040 |
VCK10,20 L=490 |
1 | ||
| 77651-34020 |
VCK10,20 L=70 |
2 | ||
| 77651-34030 |
VCK10,20 L=425 |
1 | ||
| Common parts | ||||
| 90159-40155 | ||||
| 90159-50001 | ||||
| 90159-50219 | ||||
| 90386-01004 | ||||
| 90460-26002 | ||||
| 90460-46003 | ||||
| 90461-08699 | ||||
| 90461-08700 | ||||
| 90480-01306 | ||||
| 90480-01489 | ||||
| 90541-06058 | ||||
| 91611-60610 | ||||
| 91626-60618 | ||||
| 91645-C1040 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 2211 | ||||
