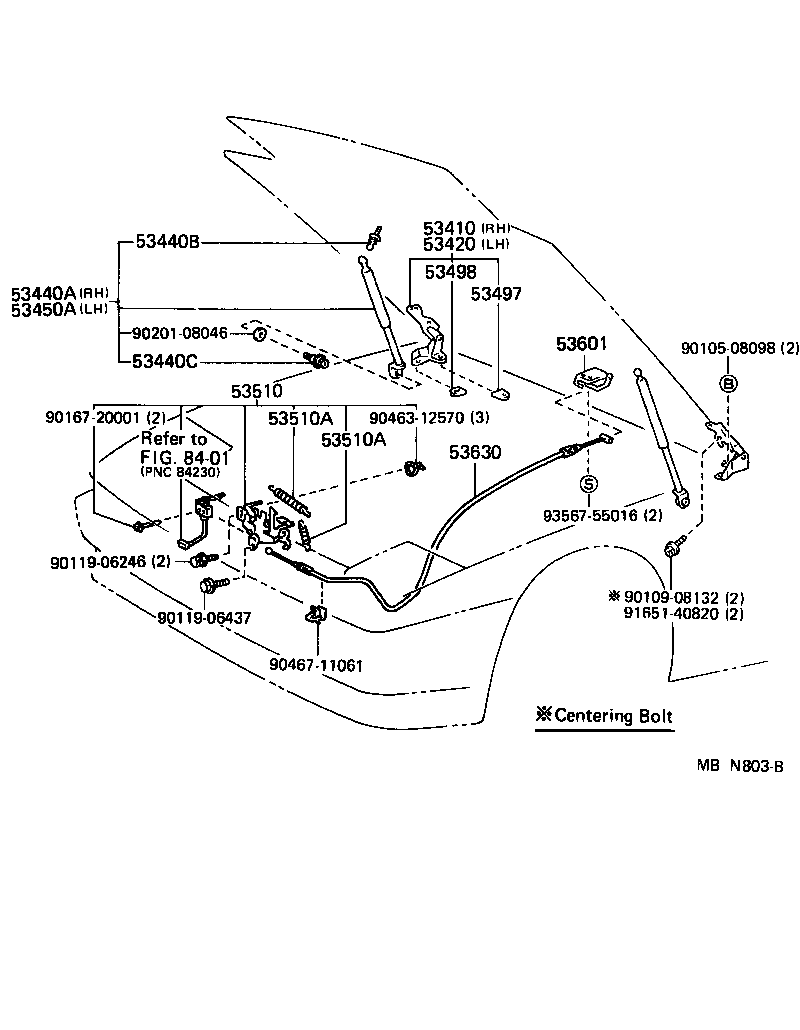

Toyota Supra MA70 HOOD LOCK & HINGE

Part #	Description	Period	Qty
53410 - HINGE ASSY, HOOD, RH
53410-14111	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	2
53410-14111	MA70	08/1988 - 08/1989	2
53420 - HINGE ASSY, HOOD, LH
53420-14081	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	2
53420-14081	MA70	08/1988 - 08/1989	2
53440A - SUPPORT ASSY, HOOD, RH
53440-19035	MA70	08/1988 - 08/1989	1
53440-19035	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-14040	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	2
68961-14040	MA70	08/1988 - 08/1989	2
53440C - BOLT, HOOD SUPPORT, NO.2
68961-96440	MA70	08/1988 - 08/1989	2
68961-96440	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	2
53450A - SUPPORT ASSY, HOOD, LH
53450-19035	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
53450-19035	MA70	08/1988 - 08/1989	1
53497 - PAD, HOOD HINGE, NO.1
53497-14071	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
53497-14071	MA70	08/1988 - 08/1989	1
53498 - PAD, HOOD HINGE, NO.2
53498-14011	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
53498-14011	MA70	08/1988 - 08/1989	1
53510 - LOCK ASSY, HOOD
53510-14221	MA70..TWC..CND;MA70..SPR..TWT..CND	08/1989 - 08/1990	1
53510-14221	MA70..CND	08/1988 - 08/1989	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09029	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA WD=0.9,WD=0.9,CW=26.5	08/1989 - 08/1990	1
90506-09029	MA70 WD=0.9,WD=0.9,CW=26.5	08/1988 - 08/1989	1
90506-18024	MA70 WD=1.8,CW=18.0	08/1988 - 08/1989	1
90506-18024	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA WD=1.8,CW=18.0	08/1989 - 08/1990	1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09029	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA WD=0.9,WD=0.9,CW=26.5	08/1989 - 08/1990	1
90506-09029	MA70 WD=0.9,WD=0.9,CW=26.5	08/1988 - 08/1989	1
90506-18024	MA70 WD=1.8,CW=18.0	08/1988 - 08/1989	1
90506-18024	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA WD=1.8,CW=18.0	08/1989 - 08/1990	1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-2006046	MA70 BROWN,TRIM4#	08/1988 - 01/1989	1
53601-2006032	MA70..TWC..CND;MA70..SPR..TWT..CND MAROON,TRIM3#	08/1989 - 08/1990	1
53601-2006024	MA70..TWC..CND;MA70..SPR..TWT..CND DEEP BLUE,TRIM8#	08/1989 - 08/1990	1
53601-2006032	MA70 MAROON,TRIM3#	08/1988 - 08/1989	1
53601-2006046	MA70..TWC..CND;MA70..SPR..TWT..CND BROWN,TRIM4#	08/1989 - 08/1990	1
53601-2006033	MA70..TWC..CND;MA70..SPR..TWT..CND MEDIUM GRAY,TRIM1#	08/1989 - 08/1990	1
53601-2006033	MA70 MEDIUM GRAY,TRIM1#	08/1988 - 08/1989	1
53601-2006024	MA70 DEEP BLUE,TRIM8#	08/1988 - 08/1989	1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-14241	MA70	08/1988 - 08/1989	1
53630-14241	MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA	08/1989 - 08/1990	1
Common parts
90105-08098
90109-08132
90119-06246
90119-06437
90167-20001
90201-08046
90463-12570
90467-11061
91651-40820
93567-55016
Linked diagrams
8401

MA70L-BLPVFK (1988)

(8808- )
