MA70L-BLPVFA (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )

Click highlighted areas on diagram

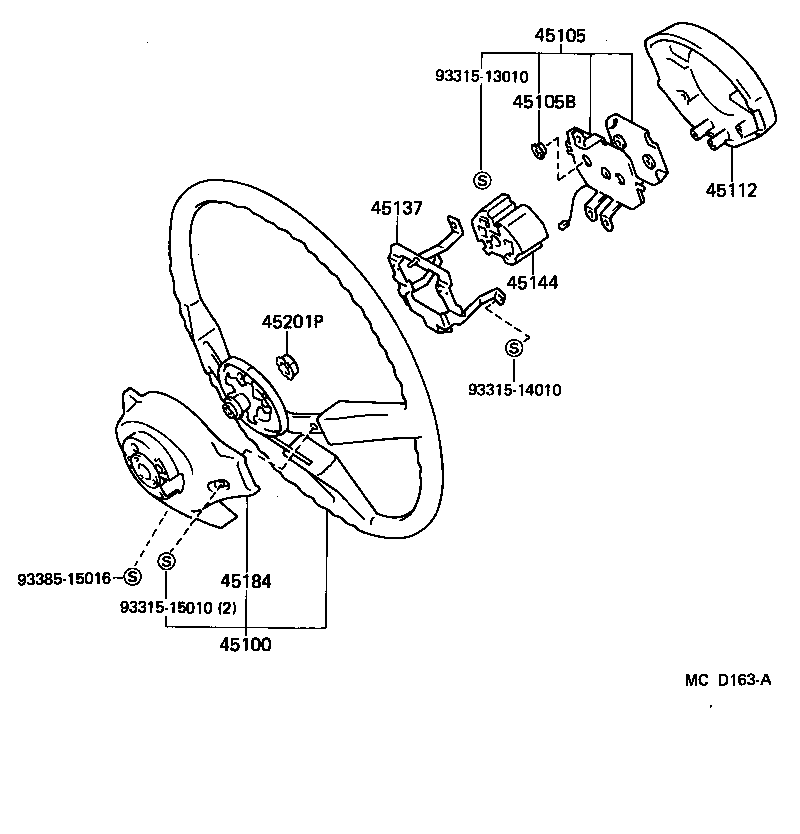

diagram 45100 45105 45105B 45112 45137 45144 45184 45201P 9331513010 9331514010 9331515010 9338515016
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1443004

MA70

BLUE,DEEP BLUE,TRIM8#

 1
45100-1443003

MA70

GRAY,MEDIUM GRAY,TRIM1#

 1
45100-1443005

MA70

BEIGE,DARK BEIGE,TRIM4#

 1
45100-1443002

MA70

MAROON,MAROON,TRIM3#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-14090

MA70

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-02001

MA70

 2
45112 - PAD, STEERING WHEEL
45112-1413003

MA70

GRAY,MEDIUM GRAY,TRIM1#

 1
45112-1413002

MA70

MAROON,MAROON,TRIM3#

 1
45112-1413005

MA70

BEIGE,DARK BEIGE,TRIM4#

 1
45112-1413004

MA70

BLUE,DEEP BLUE,TRIM8#

 1
45137 - PLATE, HORN BUTTON STOP
45106-14010

MA70

 1
45144 - PAD, ENERGY ABSORBING
45144-14010

MA70

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-1410002

MA70

MAROON,MAROON,TRIM3#

 1
45184-1410004

MA70

BLUE,DEEP BLUE,TRIM8#

 1
45184-1410003

MA70

GRAY,MEDIUM GRAY,TRIM1#

 1
45184-1410005

MA70

BEIGE,DARK BEIGE,TRIM4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

MA70

 1
Common parts
93315-13010
93315-14010
93315-15010
93385-15016

(8808-8908) ; (8908-9108)CND

Click highlighted areas on diagram

diagram 45100 45105 45112 45137 45144 45184 45201P 8408 8408 8408 9015950197 9331514010
Part # Description Qty Price
Common parts
90159-50197
93315-14010
Linked diagrams
8408
