MA70L-BLMVZK (1986)

Toyota Supra

Production Aug 1986 - Aug 1988
Engine 7MGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )5F..TWT

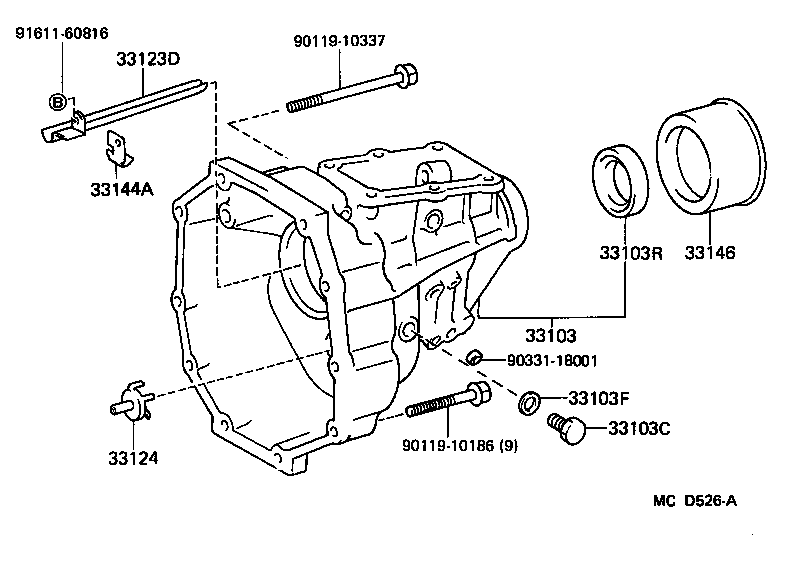

Click highlighted areas on diagram

diagram 33103 33103C 33103F 33103R 33123D 33124 33144A 33146 9011910186 9011910337 9033118001 9161160816
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-14060

MA70..5F..TWT

 1
33103C - PLUG, NO.1(FOR EXTENSION HOUSING)
90341-18006

MA70..5F..TWT

 1
33103F - GASKET(FOR EXTENSION HOUSING PLUG NO.1)
90430-18008

MA70..5F..TWT

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-40001

MA70..5F..TWT

 1
33123D - RECEIVER, CASE COVER OIL(MTM)
33124-35050

MA70..5F..TWT

 1
33124 - PIPE, OIL RECEIVER(MTM)
33124-36010

MA70..5F..TWT

 1
33144A - DEFLECTOR, EXTENSION HOUSING OIL(MTM)
33144-14010

MA70..5F..TWT

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

MA70..5F

 1
Common parts
90119-10186
90119-10337
90331-18001
91611-60816
