MA70L-BLMVZK (1986)

Toyota Supra

Production Aug 1986 - Aug 1988
Engine 7MGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )5F..TWT

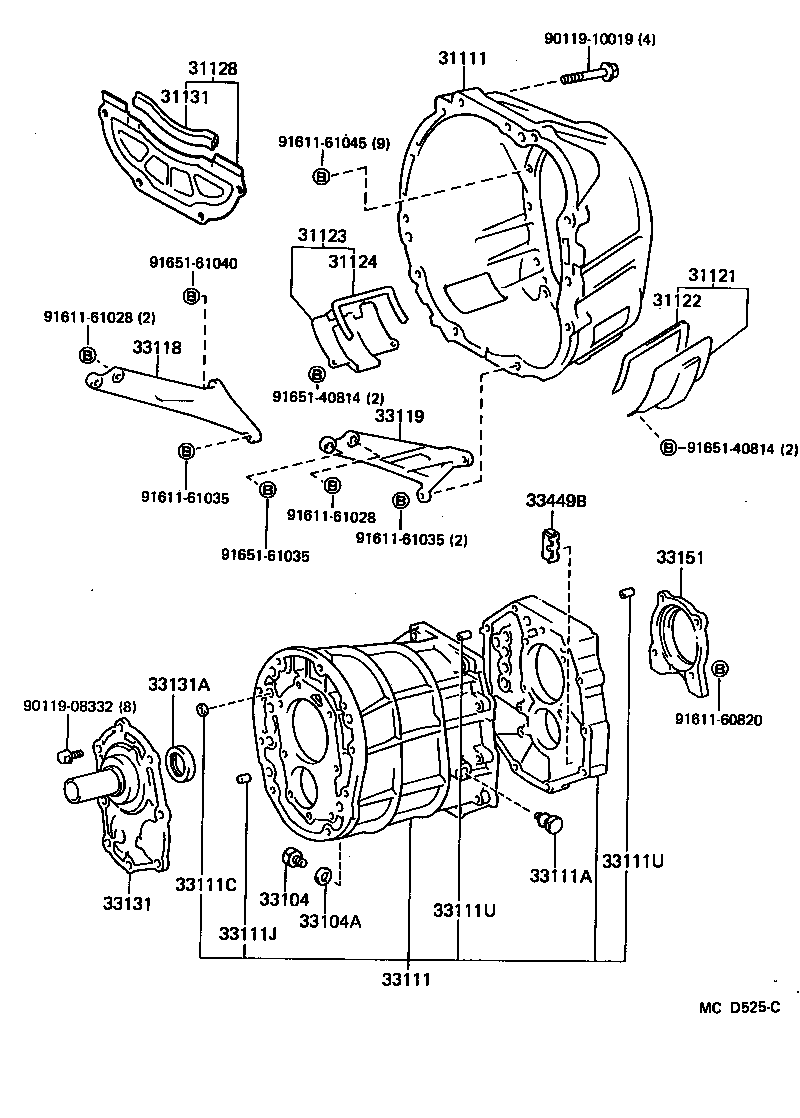

Click highlighted areas on diagram

diagram 31111 31121 31122 31123 31124 31128 31131 33104 33104A 33111 33111A 33111C 33111J 33111U 33111U 33118 33119 33131 33131A 33151 33449B 9011908332 9011910019 9161160820 9161161028 9161161028 9161161035 9161161035 9161161045 9165140814 9165140814 9165161035 9165161040
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-14100

MA70..5F..TWT

 1
31121 - COVER, CLUTCH HOUSING, NO.1
31101-14010

MA70..5F..TWT

 1
31122 - GASKET, CLUTCH HOUSING COVER
31122-14010

MA70..5F..TWT

 1
31123 - COVER, CLUTCH HOUSING, NO.2
31102-14010

MA70..5F..TWT

 1
31124 - GASKET, CLUTCH HOUSING COVER, NO.2
31124-14010

MA70..5F..TWT

 1
31128 - COVER, CLUTCH HOUSING UNDER
31128-14010

MA70..5F..TWT

 1
31131 - GASKET, CLUTCH HOUSING UNDER COVER, NO.1
31131-30010

MA70..5F..TWT

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

MA70..5F..TWT

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

MA70..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33101-35030

MA70..5F..TWT

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18026

MA70..5F..TWT

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

MA70..5F

OD=14

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

MA70..5F

L=16,OD=12

 6
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

MA70..5F..TWT

L=14,OD=15

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

MA70..5F..TWT

L=14,OD=15

 4
33118 - PLATE, STIFFENER, RH(MTM)
33118-14050

MA70..5F

 1
33118-30031

MA70..5F

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-14070

MA70..5F..TWT

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-35030

MA70..5F..TWT

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012

MA70..5F..TWT

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35020

MA70..5F..TWT

 1
33449B - MAGNET, TRANSMISSION
33449-35010

MA70..5F..TWT

 1
Common parts
90119-08332
90119-10019
91611-60820
91611-61028
91611-61035
91611-61045
91651-40814
91651-61035
91651-61040
