MA70L-BLMVZK (1986)

Toyota Supra

Production Aug 1986 - Aug 1988
Engine 7MGTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )7MGTE

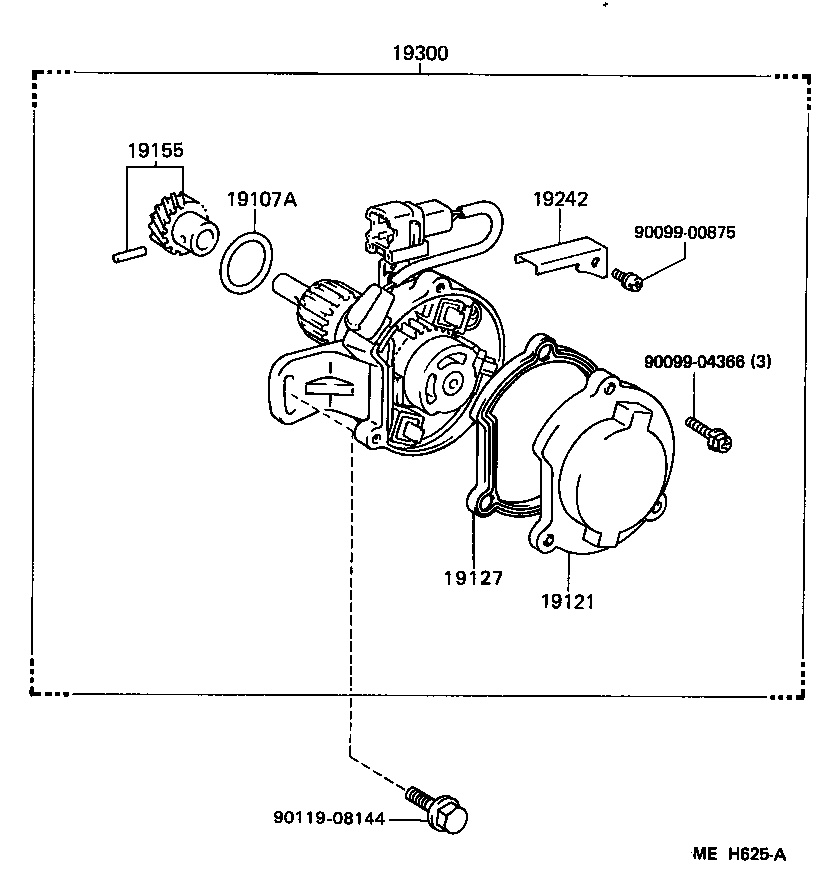

Click highlighted areas on diagram

diagram 19107A 19121 19127 19155 19242 19300 9009900875 9009904366 9011908144
Part # Description Qty Price
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14088

7MGTE..MA70

 1
19121 - COVER, DUST PROOF
19121-42010

7MGTE..MA70

 1
19127 - PACKING, DUST PROOF
19127-42010

7MGTE..MA70

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-42010

7MGTE..MA70

 1
19242 - CLAMP, CORD
19242-70010

7MGTE..MA70

 1
19300 - SENSOR ASSY, CAM POSITION
19300-42010

7MGTE..MA70

 1
Common parts
90099-00875
90099-04366
90119-08144
