MA70L-BLMVZK (1986)
Toyota Supra

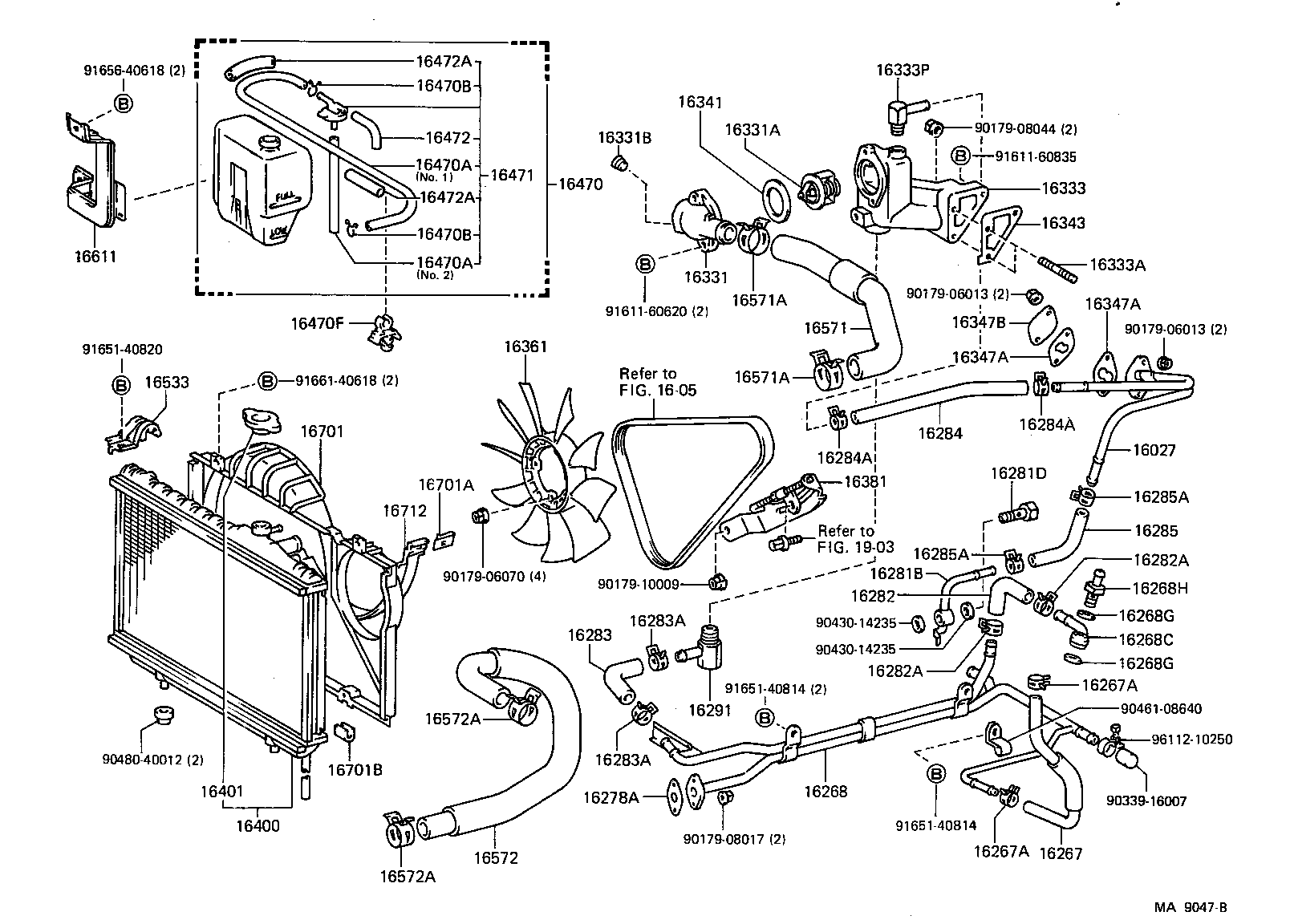

ILLUST NO. 1 OF 2(8608- )7MGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-42011 |
7MGTE..MA70 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-42010 |
7MGTE..MA70 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
7MG#..MA70 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
7MG#..MA70 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-42030 |
7MG#..MA70 |
1 | ||
| 16268C - UNION, WATER BY-PASS PIPE | ||||
| 90405-17005 |
7MG#..MA70 |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-22006 |
7MG#..MA70 |
2 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-22006 |
7MG#..MA70 |
2 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-22004 |
7MG#..MA70 |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-45010 |
7MG#..MA70 |
1 | ||
| 16281B - UNION, WATER BY-PASS PIPE, NO.2 | ||||
| 90405-10031 |
7MGTE..MA70 |
1 | ||
| 16281D - BOLT, UNION(FOR WATER BY-PASS PIPE UNION NO.2) | ||||
| 90401-14008 |
7MG#..MA70 |
1 | ||
| 90401-14091 |
7MG#..MA70 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-42010 |
7MG#..MA70 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-22003 |
7MG#..MA70 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-22003 |
7MG#..MA70 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-42010 |
7MG#..MA70 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-22003 |
7MG#..MA70 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-22003 |
7MG#..MA70 |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-42011 |
7MGTE..MA70 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15004 |
7MGTE..MA70 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15004 |
7MGTE..MA70 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-42010 |
7MGTE..MA70 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15004 |
7MGTE..MA70 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15004 |
7MGTE..MA70 |
2 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 90404-54034 |
7MG#..MA70 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-42030 |
7MGTE..MA70 |
1 | ||
| 16331-42021 |
7MG#..MA70 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03055 |
7MG#..MA70 *WAX 88-100 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90344-53011 |
7MG#..MA70 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-42010 |
7MGTE..MA70 |
1 | ||
| 16333A - BOLT, STUD(FOR WATER OUTLET HOUSING) | ||||
| 90116-08243 |
7MG#..MA70 |
2 | ||
| 16333P - UNION(FOR WATER OUTLET HOUSING) | ||||
| 90404-52022 |
7MGTE..MA70 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
7MG#..MA70 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-42010 |
7MG#..MA70 |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-28010 |
7MGTE..MA70 |
2 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-28010 |
7MGTE..MA70 |
2 | ||
| 16347B - PLATE, BEARING HOUSING, TURBO SIDE | ||||
| 17296-42010 |
7MGTE..MA70 |
1 | ||
| 16361 - FAN | ||||
| 16361-42020 |
7MGTE..MA70 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-42010 |
7MG#..MA70 |
1 | ||
| 16381-42020 |
7MGTE..MA70 |
1 | ||
| 16381-42021 |
7MGTE..MA70 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-42130 |
7MGTE..MA70..5F |
1 | ||
| 16400-42150 |
7MGTE..MA70..5F |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
7MG#..MA70 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-42050 |
7MGTE..MA70 |
1 | ||
| 16470-42031 |
7MG#..MA70 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33534 |
7MG#..MA70 *H,L=860,NO.1 |
1 | ||
| 90099-33534 |
7MG#..MA70 L=1000,NO.1 |
1 | ||
| 90445-12078 |
7MGTE..MA70 *H,L=160,NO.2 |
1 | ||
| 90445-12078 |
7MG#..MA70 *H,L=175,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33534 |
7MG#..MA70 *H,L=860,NO.1 |
1 | ||
| 90099-33534 |
7MG#..MA70 L=1000,NO.1 |
1 | ||
| 90445-12078 |
7MGTE..MA70 *H,L=160,NO.2 |
1 | ||
| 90445-12078 |
7MG#..MA70 *H,L=175,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
7MG#..MA70 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
7MG#..MA70 |
2 | ||
| 16470F - CLAMP, RADIATOR RESERVE TANK HOSE | ||||
| 90929-01134 |
7MG#..MA70 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-42020 |
7MGTE..MA70 |
1 | ||
| 16405-42010 |
7MG#..MA70 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-71030 |
7MG#..MA70 |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 85338-70070 |
7MG#..MA70 |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 85338-70070 |
7MG#..MA70 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-42010 |
7MG#..MA70 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-42010 |
7MG#..MA70 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
7MG#..MA70 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
7MG#..MA70 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-42010 |
7MGTE..MA70 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
7MG#..MA70 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
7MG#..MA70 |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16402-42010 |
7MG#..MA70 |
1 | ||
| 16402-42020 |
7MG#..MA70 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-42010 |
7MG#..MA70 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
7MG#..MA70 |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
7MG#..MA70 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16702-42010 |
7MG#..MA70 |
1 | ||
| Common parts | ||||
| 90179-06013 | ||||
| 90179-06070 | ||||
| 90179-08017 | ||||
| 90179-08044 | ||||
| 90179-10009 | ||||
| 90339-16007 | ||||
| 90430-14235 | ||||
| 90461-08640 | ||||
| 90480-40012 | ||||
| 91611-60620 | ||||
| 91611-60835 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 91656-40618 | ||||
| 91661-40618 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1903 | ||||
