MA70L-BLMVZK (1986)
Toyota Supra
Production
Aug 1986
-
Aug 1988
Engine
7MGTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )7MGTE

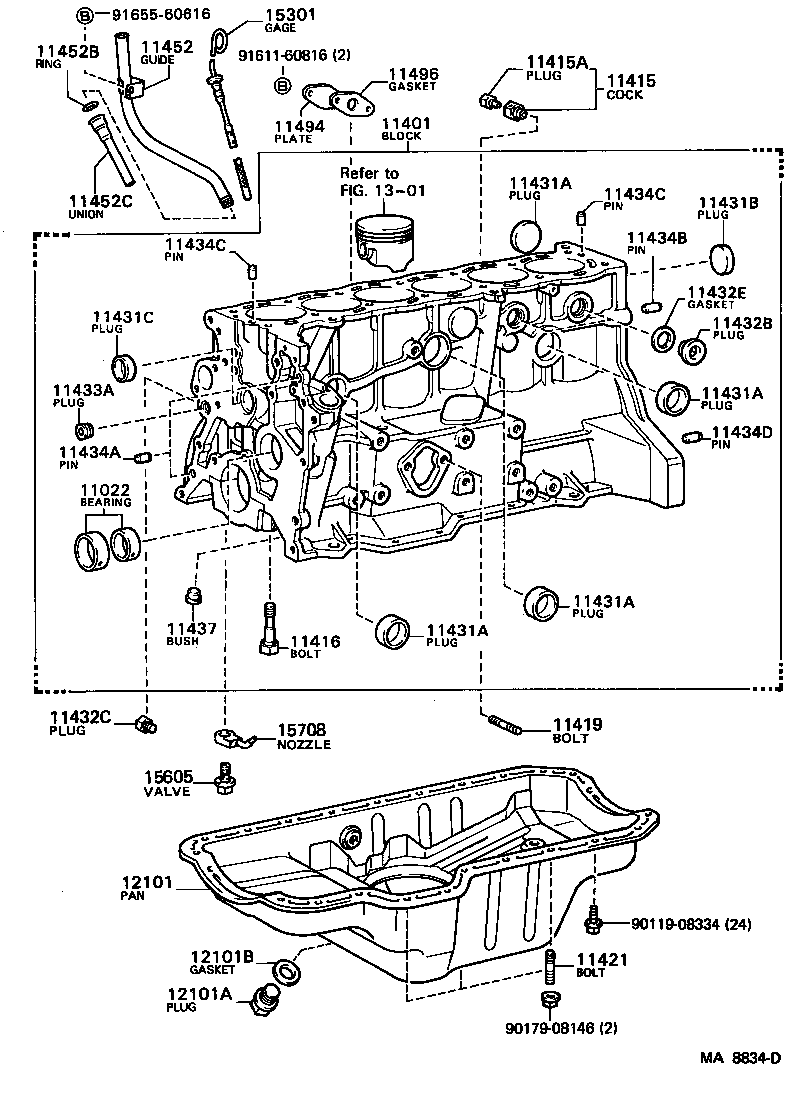

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11022 - BEARING SET, PUMP DRIVE SHAFT | ||||
| 11022-41010 |
7MG#..MA70 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-49576 |
7MGTE..MA70 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53828 |
7MG#..MA70 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
7MG#..MA70 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02047 |
7MG#..MA70 |
14 | ||
| 11419 - BOLT, STUD(FOR FUEL PUMP) | ||||
| 90116-08191 |
7MG#..MA70 L=39,S=9&25 |
2 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-08208 |
7MG#..MA70 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
7MG#..MA70 OD=40 |
7 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
7MG#..MA70 OD=40 |
7 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
7MG#..MA70 OD=40 |
7 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
7MG#..MA70 OD=40 |
7 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96412-43500 |
7MG#..MA70 OD=35 |
1 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
7MG#..MA70 OD=35 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 96411-43000 |
7MG#..MA70 |
2 | ||
| 90341-32070 |
7MG#..MA70 |
2 | ||
| 11432C - PLUG, W/HEAD TAPER SCREW, NO.3 | ||||
| 90345-51006 |
7MG#..MA70 |
2 | ||
| 11432E - GASKET, W/HEAD TAPER SCREW PLUG | ||||
| 90430-32222 |
7MG#..MA70 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-10192 |
7MG#..MA70 L=22,OD=10,L=22,OD=10 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10192 |
7MG#..MA70 L=22,OD=10,L=22,OD=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
7MG#..MA70 L=18,OD=8,L=16,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
7MG#..MA70 L=18,OD=8,L=16,OD=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-10192 |
7MG#..MA70 L=22,OD=10,L=22,OD=10 |
2 | ||
| 11437 - BUSH, OIL PUMP SHAFT GUIDE | ||||
| 11437-45010 |
7MG#..MA70 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-42010 |
7MGTE..MA70 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
7MGTE..MA70 |
1 | ||
| 11452C - UNION(FOR OIL LEVEL GAGE GUIDE) | ||||
| 12142-42010 |
7MGTE..MA70 |
1 | ||
| 11494 - PLATE, OIL HOLE COVER | ||||
| 11494-45010 |
7MG#..MA70 |
1 | ||
| 11496 - GASKET, OIL HOLE COVER PLATE | ||||
| 15318-45011 |
7MG#..MA70 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-42030 |
7MG#..MA70 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
7MG#..MA70 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-42010 |
7MGTE..MA70 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15703-42010 |
7MGTE..MA70 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-42010 |
7MGTE..MA70 |
1 | ||
| Common parts | ||||
| 90119-08334 | ||||
| 90179-08146 | ||||
| 91611-60816 | ||||
| 91655-60616 | ||||
| Linked diagrams | ||||
| 1301 | ||||
