MA70L-BLMVZK (1988)
Toyota Supra
Production
Aug 1988
-
May 1993
Engine
7MGTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

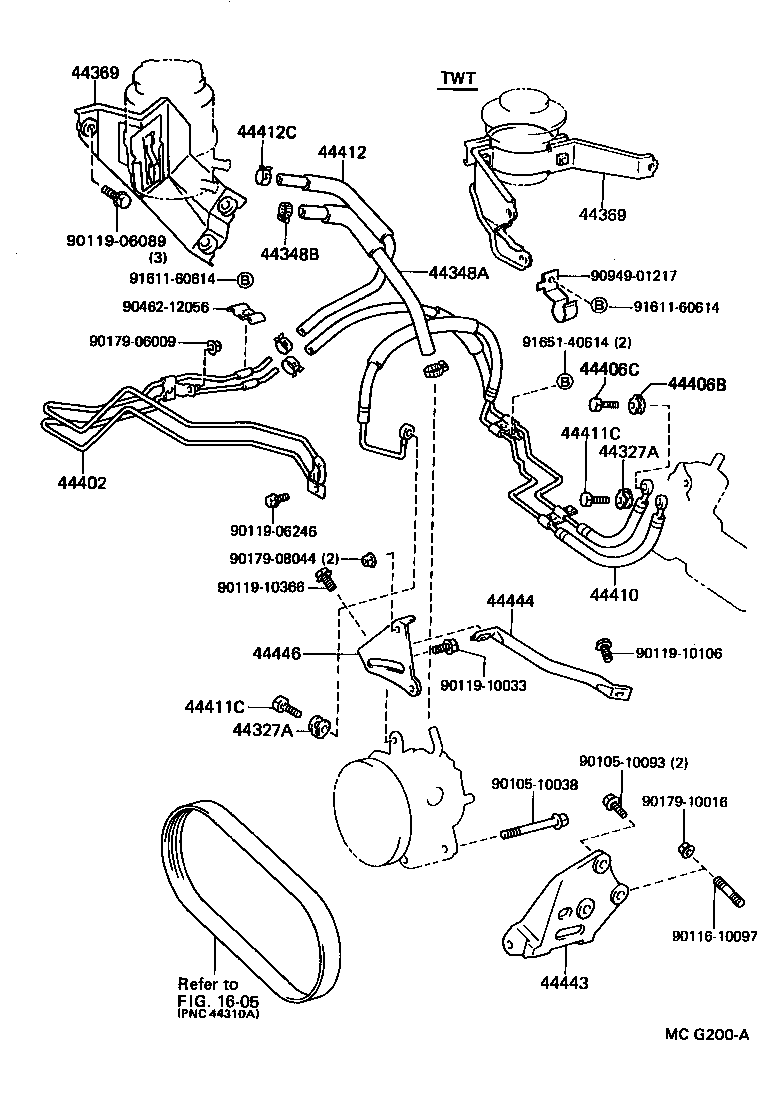

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
MA70 |
2 | ||
| 44327-12010 |
MA70 |
2 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
MA70 |
2 | ||
| 44327-12010 |
MA70 |
2 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-14120 |
MA70..TWT |
1 | ||
| 44348-14120 |
MA70..TWT |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
MA70..TWT |
2 | ||
| 90460-26001 |
MA70..TWT |
2 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-14020 |
MA70..TWT |
1 | ||
| 44369-14020 |
MA70..TWT |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-14020 |
MA70..TWT |
1 | ||
| 44369-14020 |
MA70..TWT |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-14170 |
MA70..TWT |
1 | ||
| 44402-14180 |
MA70..TWT |
1 | ||
| 44406B - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-17002 |
MA70 |
1 | ||
| 90401-17002 |
MA70 |
1 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-17005 |
MA70 |
2 | ||
| 90430-17005 |
MA70 |
2 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-14140 |
MA70..TWT |
1 | ||
| 44410-14140 |
MA70..TWT |
1 | ||
| 44410-14141 |
MA70..TWT |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16013 |
MA70 |
2 | ||
| 90401-16013 |
MA70 |
2 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16013 |
MA70 |
2 | ||
| 90401-16013 |
MA70 |
2 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-14220 |
MA70..TWT |
1 | ||
| 44412-14220 |
MA70..TWT |
1 | ||
| 44412C - CLAMP(FOR RETURN HOSE) | ||||
| 90467-16008 |
MA70 |
3 | ||
| 90467-16008 |
MA70 |
3 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-14010 |
MA70 |
1 | ||
| 44443-14010 |
MA70 |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-14020 |
MA70 |
1 | ||
| 44444-14020 |
MA70 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-14020 |
MA70 |
1 | ||
| 44446-14020 |
MA70 |
1 | ||
| Common parts | ||||
| 90105-10038 | ||||
| 90105-10093 | ||||
| 90116-10097 | ||||
| 90119-06089 | ||||
| 90119-06246 | ||||
| 90119-10033 | ||||
| 90119-10106 | ||||
| 90119-10366 | ||||
| 90179-06009 | ||||
| 90179-08044 | ||||
| 90179-10016 | ||||
| 90462-12056 | ||||
| 90949-01217 | ||||
| 91611-60614 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 1605 | ||||
