MA70L-BLMVFA (1986)

Toyota Supra

Production Jan 1986 - Aug 1988
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8601- )7MGE

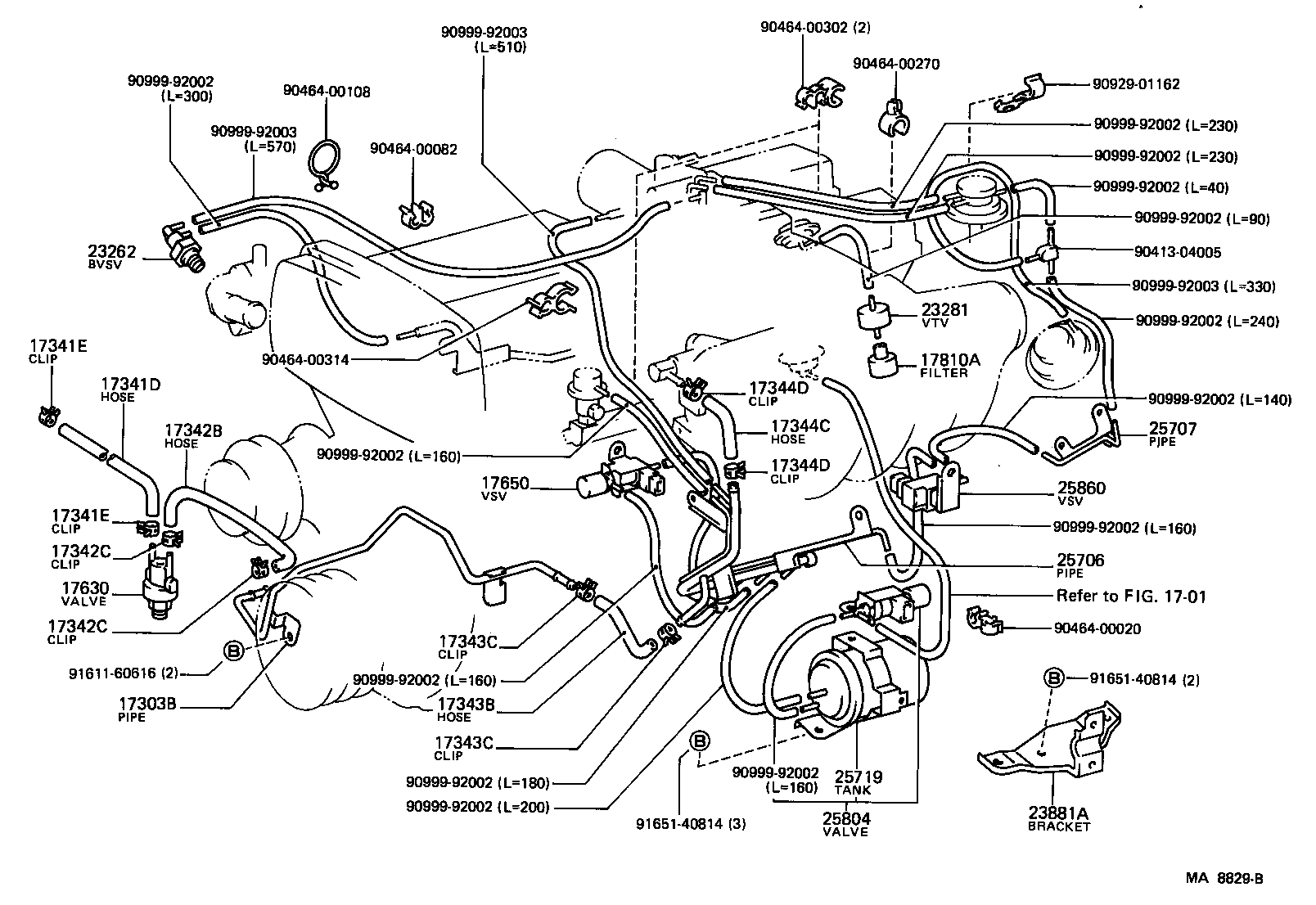

Click highlighted areas on diagram

diagram 17303B 17341D 17341E 17341E 17342B 17342C 17342C 17343B 17343C 17343C 17344C 17344D 17344D 17630 17650 17810A 23262 23281 23881A 25706 25707 25719 25804 25860 9041304005 9046400020 9046400082 9046400108 9046400270 9046400302 9046400314 9092901162 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9161160616 9165140814 9165140814
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-42020

7MG#..MA70

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
90910-05186

7MG#..MA70

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

7MG#..MA70

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

7MG#..MA70

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-10022

7MG#..MA70

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400

7MG#..MA70

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-30400

7MG#..MA70

 2
17343B - HOSE, NO.3(FOR IDLE-UP)
90910-05185

7MG#..MA70

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400

7MG#..MA70

 2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400

7MG#..MA70

 2
17344C - HOSE, NO.4(FOR IDLE-UP)
90910-05190

7MG#..MA70

 1
17344D - CLIP, NO.4(FOR IDLE-UP HOSE)
96132-30800

7MG#..MA70

 2
17344D - CLIP, NO.4(FOR IDLE-UP HOSE)
96132-30800

7MG#..MA70

 2
17630 - VALVE ASSY, AIR CONTROL
17630-70010

7MG#..MA70

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12024

7MG#..MA70

 1
17810A - FILTER ASSY, AIR
90925-06006

7MG#..MA70

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05068

7MG#..MA70

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

7MG#..MA70

 1
23881A - BRACKET, VACUUM CONTROL VALVE SET
23881-42010

7MGE..MA70

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-42010

7MGE..MA70

 1
25706-42011

7MGE..MA70

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-42010

7MG#..MA70

 1
25719 - TANK, VACUUM SURGE
25719-42010

7MGE..MA70

 1
25804 - VALVE SET, VACUUM CONTROL
25804-42010

7MGE..MA70

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-42010

7MGE..MA70

 1
Common parts
90413-04005
90464-00020
90464-00082
90464-00108
90464-00270
90464-00302
90464-00314
90929-01162
90999-92002
90999-92003
91611-60616
91651-40814

(8601- )

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008
