MA70L-BJPVZK (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 7MGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

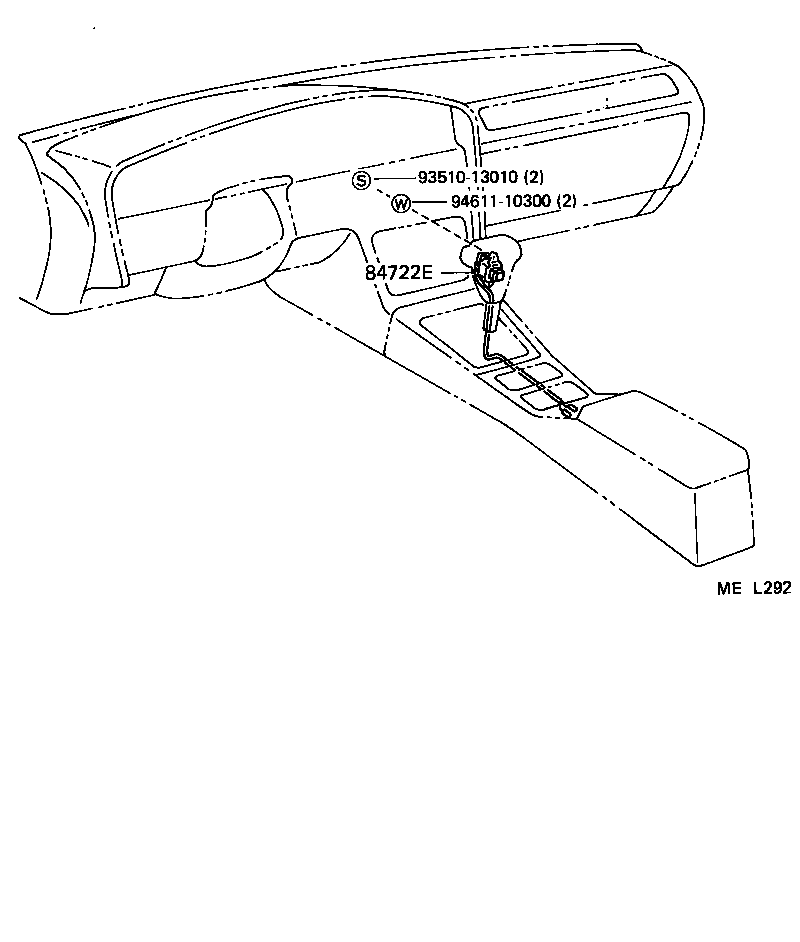

OVERDRIVE

diagram 84722E 9351013010 9461110300
Part # Description Qty Price
84722E - SWITCH, TRANSMISSION CONTROL
84722-1408001

MA70..4FC

BLACK,TRIM1#,3#,4#,8#

 1
84722-1408001

MA70..4FC..TWT

BLACK,TRIM1#,3#,4#,8#

 1
84722-1408001

MA70..4FC..CND

BLACK,TRIM1#,3#,8#

 1
84722-1408001

MA70..4FC

BLACK,TRIM1#,3#,4#,8#

 1
84722-1408001

MA70..4FC

BLACK,TRIM1#,3#,8#

 1
Common parts
93510-13010
94611-10300

(8808- )

Click highlighted areas on diagram

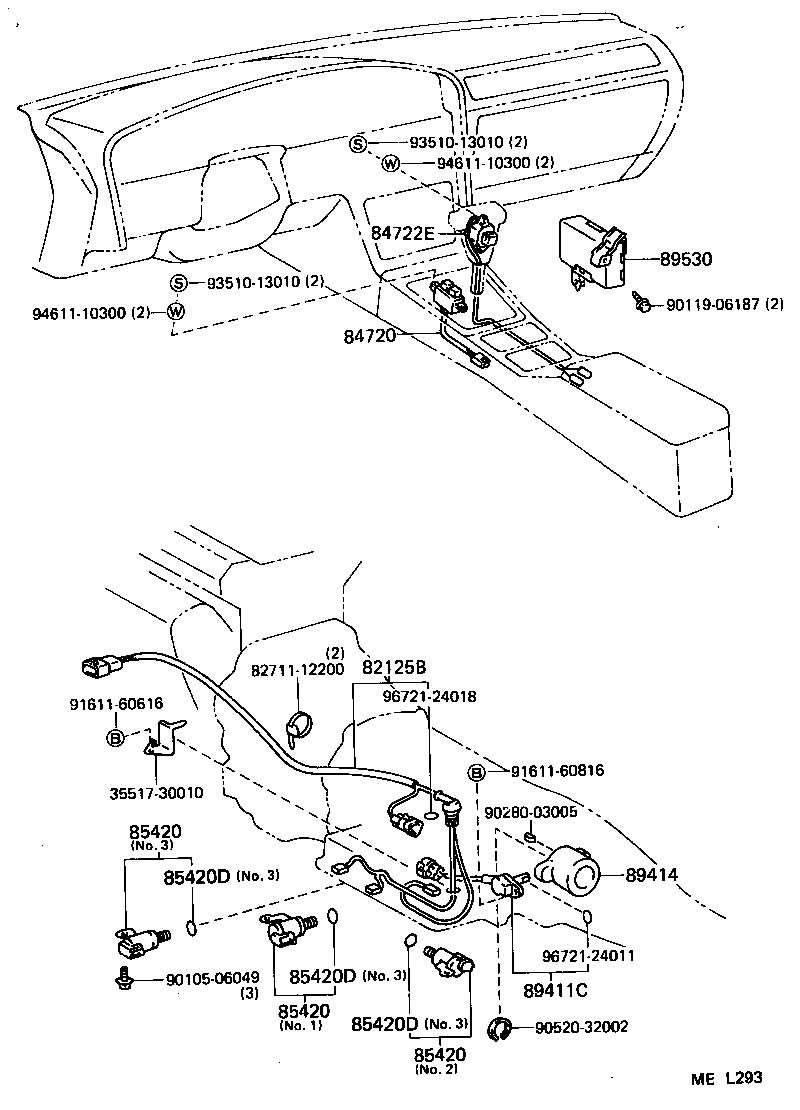

ECT

diagram 3551730010 82125B 8271112200 84720 84722E 85420 85420 85420 85420D 85420D 85420D 89411C 89414 89530 9010506049 9011906187 9028003005 9052032002 9161160616 9161160816 9351013010 9351013010 9461110300 9461110300 9672124011 9672124018
Part # Description Qty Price
82125B - WIRE, TRANSMISSION
82125-24060

MA70..4FC

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-14051

MA70..4FC

 1
84722E - SWITCH, TRANSMISSION CONTROL
84722-1408001

MA70..4FC

BLACK,TRIM1#,3#,4#,8#

 1
84722-1408001

MA70..4FC..TWT

BLACK,TRIM1#,3#,4#,8#

 1
84722-1408001

MA70..4FC..CND

BLACK,TRIM1#,3#,8#

 1
84722-1408001

MA70..4FC

BLACK,TRIM1#,3#,4#,8#

 1
84722-1408001

MA70..4FC

BLACK,TRIM1#,3#,8#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-30110

MA70..4FC

NO.3,AISIN

 1
85420-30120

MA70..4FC

NO.3,NIPPONDENSO

 1
85420-22080

MA70..4FC

NO.1 OR NO.2

 2
85420-30110

MA70..4FC

NO.3,AISIN

 1
85420-30120

MA70..4FC

NO.3,NIPPONDENSO

 1
85420-22080

MA70..4FC

NO.1 OR NO.2

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-30110

MA70..4FC

NO.3,AISIN

 1
85420-30120

MA70..4FC

NO.3,NIPPONDENSO

 1
85420-22080

MA70..4FC

NO.1 OR NO.2

 2
85420-30110

MA70..4FC

NO.3,AISIN

 1
85420-30120

MA70..4FC

NO.3,NIPPONDENSO

 1
85420-22080

MA70..4FC

NO.1 OR NO.2

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-30110

MA70..4FC

NO.3,AISIN

 1
85420-30120

MA70..4FC

NO.3,NIPPONDENSO

 1
85420-22080

MA70..4FC

NO.1 OR NO.2

 2
85420-30110

MA70..4FC

NO.3,AISIN

 1
85420-30120

MA70..4FC

NO.3,NIPPONDENSO

 1
85420-22080

MA70..4FC

NO.1 OR NO.2

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

MA70..4FC

NO.3

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

MA70..4FC

NO.3

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

MA70..4FC

NO.3

 3
89411C - SENSOR, SPEED
89411-22061

MA70..4FC

 1
89411-22060

MA70..4FC

 1
89414 - ROTOR, SENSOR
89414-30021

MA70..4FC

 1
89414-30020

MA70..4FC

 1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-14390

MA70..4FC..TWT

 1
Common parts
35517-30010
82711-12200
90105-06049
90119-06187
90280-03005
90520-32002
91611-60616
91611-60816
93510-13010
94611-10300
96721-24011
96721-24018
