MA70L-BJPVZK (1988)
Toyota Supra
Production
Aug 1988
-
May 1993
Engine
7MGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

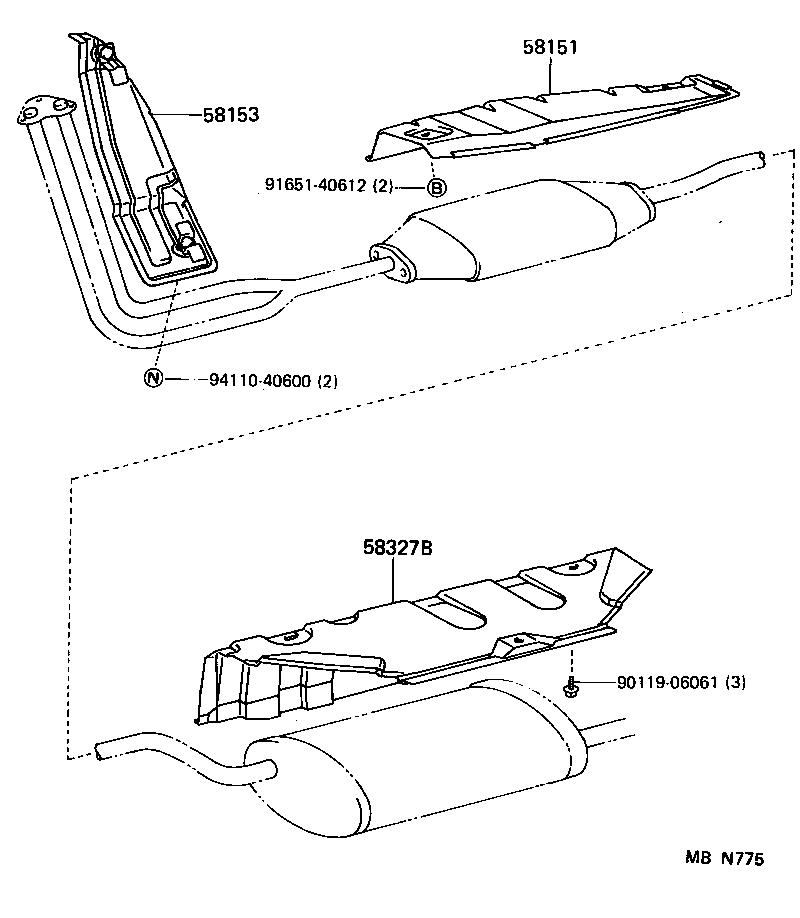

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-14080 |
MA70 |
1 | ||
| 58151-14080 |
MA70 |
1 | ||
| 58151-14080 |
MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA |
1 | ||
| 58153 - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58153-14050 |
MA70..TWT |
1 | ||
| 58153-14050 |
MA70..TWT |
1 | ||
| 58153-14050 |
MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-14040 |
MA70 |
1 | ||
| 58327-14040 |
MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA |
1 | ||
| 58327-14040 |
MA70 |
1 | ||
| Common parts | ||||
| 90119-06061 | ||||
| 91651-40612 | ||||
| 94110-40600 | ||||
