MA70L-BJMVFA (1988)

Toyota Supra

Production Aug 1988 - Aug 1990
Engine 7MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SPR

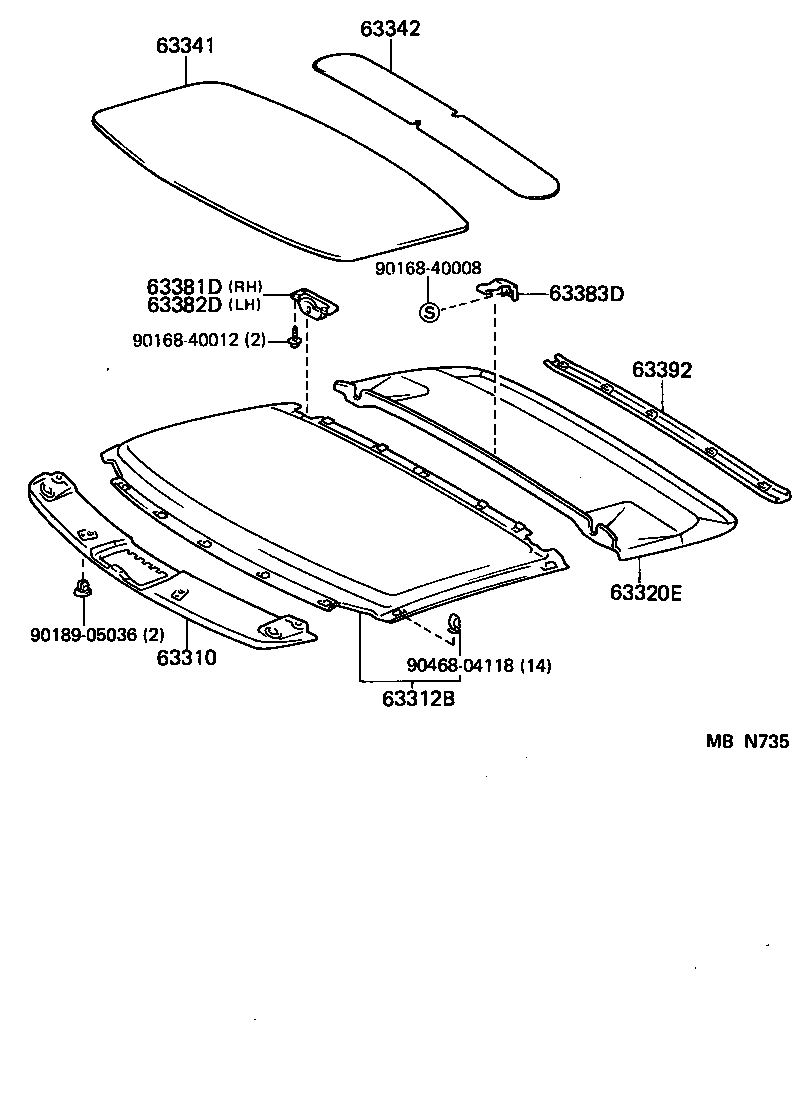

Click highlighted areas on diagram

diagram 63310 63312B 63320E 63341 63342 63381D 63382D 63383D 63392 9016840008 9016840012 9018905036 9046804118
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-1466002

MA70..SPR

MAROON,TRIM3#

 1
63310-1466006

MA70..SPR

BROWN,TRIM4#

 1
63310-1466003

MA70..SPR

MEDIUM GRAY,TRIM1#

 1
63310-1466004

MA70..SPR

DEEP BLUE,TRIM8#

 1
63310-1466006

MA70..SPR

BROWN,TRIM4#

 1
63312B - HEADLINING, ROOF, CENTER
63312-1404006

MA70..SPR

BROWN,TRIM4#

 1
63312-1404004

MA70..SPR

DEEP BLUE,TRIM8#

 1
63312-1404002

MA70..SPR

MAROON,TRIM3#

 1
63312-1404003

MA70..SPR

MEDIUM GRAY,TRIM1#

 1
63312-1404006

MA70..SPR

BROWN,TRIM4#

 1
63320E - HEADLINING ASSY, ROOF, REAR
63320-1410006

MA70..SPR

BROWN,TRIM4#

 1
63320-1410002

MA70..SPR

MAROON,TRIM3#

 1
63320-1410003

MA70..SPR

MEDIUM GRAY,TRIM1#

 1
63320-1410004

MA70..SPR

DEEP BLUE,TRIM8#

 1
63320-1410006

MA70..SPR

BROWN,TRIM4#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-14050

MA70..SPR

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-14020

MA70..SPR

 1
63381D - GARNISH, ROOF HEADLINING TRIM, RH
63381-1408003

MA70..SPR

MEDIUM GRAY,TRIM1#

 1
63381-1408006

MA70..SPR

BROWN,TRIM4#

 1
63381-1408002

MA70..SPR

MAROON,TRIM3#

 1
63381-1408004

MA70..SPR

DEEP BLUE,TRIM8#

 1
63381-1408006

MA70..SPR

BROWN,TRIM4#

 1
63382D - GARNISH, ROOF HEADLINING TRIM, LH
63382-1401006

MA70..SPR

BROWN,TRIM4#

 1
63382-1401003

MA70..SPR

MEDIUM GRAY,TRIM1#

 1
63382-1401004

MA70..SPR

DEEP BLUE,TRIM8#

 1
63382-1401002

MA70..SPR

MAROON,TRIM3#

 1
63382-1401006

MA70..SPR

BROWN,TRIM4#

 1
63383D - RETAINER, ROOF HEADLINING, REAR
63383-14030

MA70..SPR

 3
63392 - TRIM, ROOF HEADLINING, REAR
63392-1405003

MA70

MEDIUM GRAY,TRIM1#

 1
63392-1405003

MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA

MEDIUM GRAY,TRIM1#

 1
63392-1405006

MA70

BROWN,TRIM4#

 1
63392-1405002

MA70

MAROON,TRIM3#

 1
63392-1405006

MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA

BROWN,TRIM4#

 1
63392-1405002

MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA

MAROON,TRIM3#

 1
63392-1405004

MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA

DEEP BLUE,TRIM8#

 1
63392-1405004

MA70

DEEP BLUE,TRIM8#

 1
Common parts
90168-40008
90168-40012
90189-05036
90468-04118
