JZA80L-ALPVZA (1993)
Toyota Supra
Production
May 1993
-
Jul 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

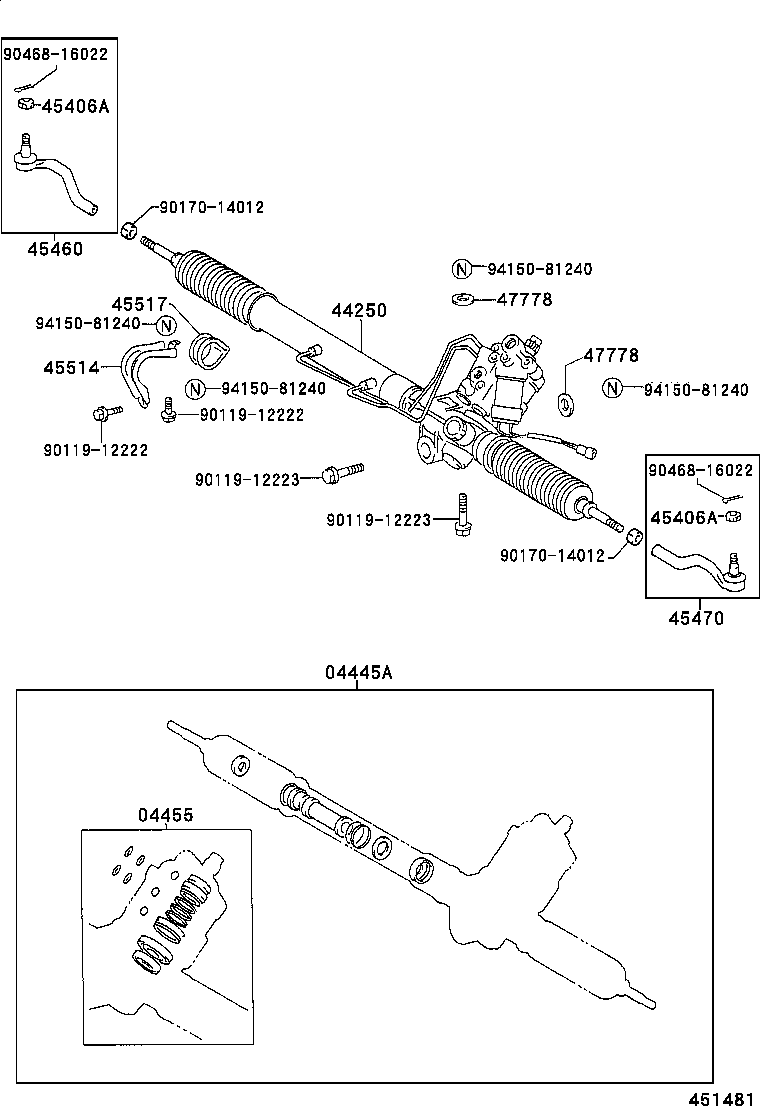

ILLUST NO. 1 OF 2(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-14040 |
JZA80 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-24051 |
JZA80 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-14222 |
JZA80 |
1 | ||
| 44250-14220 |
JZA80 |
1 | ||
| 44250-14221 |
JZA80 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12002 |
JZA80 |
2 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-12002 |
JZA80 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19235 |
JZA80 |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-19065 |
JZA80 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45515-24030 |
JZA80 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-14040 |
JZA80 |
1 | ||
| 47778 - RETAINER, STEERING RACK HOUSING | ||||
| 47778-24010 |
JZA80 |
2 | ||
| 47778 - RETAINER, STEERING RACK HOUSING | ||||
| 47778-24010 |
JZA80 |
2 | ||
| Common parts | ||||
| 90119-12222 | ||||
| 90119-12223 | ||||
| 90170-14012 | ||||
| 90468-16022 | ||||
| 94150-81240 | ||||

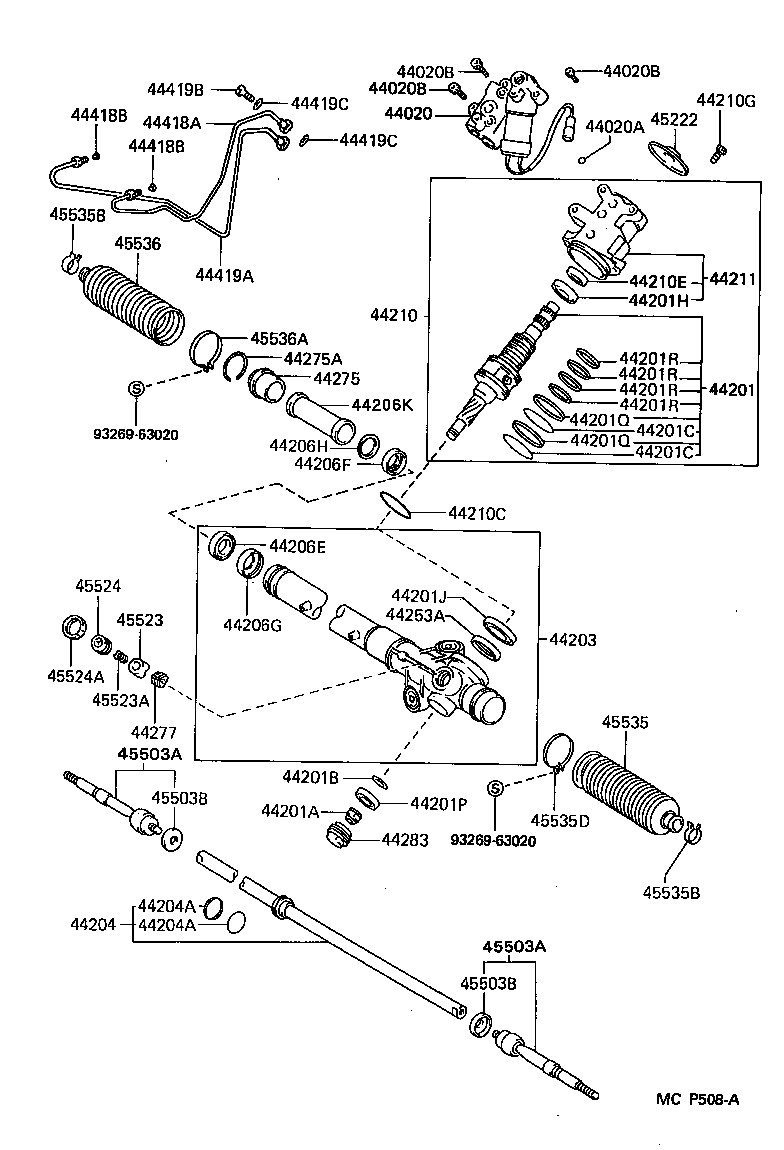

ILLUST NO. 2 OF 2(9305- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE | ||||
| 44020-14070 |
JZA80 |
1 | ||
| 44020-50090 |
JZA80 |
1 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90301-11009 |
JZA80 |
3 | ||
| 44020B - BOLT(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90110-08012 |
JZA80 *8-1.25PX29-26 |
2 | ||
| 90110-08014 |
JZA80 *8-1.25PX52-49.5 |
1 | ||
| 44020B - BOLT(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90110-08012 |
JZA80 *8-1.25PX29-26 |
2 | ||
| 90110-08014 |
JZA80 *8-1.25PX52-49.5 |
1 | ||
| 44020B - BOLT(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 90110-08012 |
JZA80 *8-1.25PX29-26 |
2 | ||
| 90110-08014 |
JZA80 *8-1.25PX52-49.5 |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-14160 |
JZA80 |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 94184-61200 |
JZA80 |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-12030 |
JZA80 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-45002 |
JZA80 |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-45002 |
JZA80 |
2 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90363-19002 |
JZA80 |
1 | ||
| 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) | ||||
| 90363-30054 |
JZA80 |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12014 |
JZA80 |
1 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-50001 |
JZA80 |
2 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-50001 |
JZA80 |
2 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33005 |
JZA80 |
4 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33005 |
JZA80 |
4 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33005 |
JZA80 |
4 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33005 |
JZA80 |
4 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-14130 |
JZA80 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-14100 |
JZA80 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37006 |
JZA80 OUTER |
1 | ||
| 90301-33003 |
JZA80 INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37006 |
JZA80 OUTER |
1 | ||
| 90301-33003 |
JZA80 INNER |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-26013 |
JZA80 |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-26013 |
JZA80 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-27008 |
JZA80 |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-27008 |
JZA80 |
1 | ||
| 44206K - SPACER, NO.3(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90905-61012 |
JZA80 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-14190 |
JZA80 |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-57003 |
JZA80 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19006 |
JZA80 |
1 | ||
| 44210G - BOLT(FOR POWER STEERING CONTROL VALVE) | ||||
| 90110-08012 |
JZA80 |
2 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44022-14050 |
JZA80 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30005 |
JZA80 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-20041 |
JZA80 |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-50003 |
JZA80 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-50011 |
JZA80 |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-12010 |
JZA80 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-14090 |
JZA80 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
JZA80 |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
JZA80 |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-14090 |
JZA80 |
1 | ||
| 44419B - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-12017 |
JZA80 |
2 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
JZA80 |
4 | ||
| 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-12013 |
JZA80 |
4 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-50010 |
JZA80 |
1 | ||
| 45503A - END SUB-ASSY, STEERING RACK, NO.1 | ||||
| 45503-39095 |
JZA80 |
2 | ||
| 45503-59015 |
JZA80 |
2 | ||
| 45503A - END SUB-ASSY, STEERING RACK, NO.1 | ||||
| 45503-39095 |
JZA80 |
2 | ||
| 45503-59015 |
JZA80 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
JZA80 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
JZA80 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-50011 |
JZA80 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26080 |
JZA80 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-50010 |
JZA80 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
JZA80 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-24030 |
JZA80 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
JZA80 |
2 | ||
| 90467-19012 |
JZA80 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
JZA80 |
2 | ||
| 90467-19012 |
JZA80 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-50004 |
JZA80 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-14070 |
JZA80 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-51001 |
JZA80 |
1 | ||
| Common parts | ||||
| 93269-63020 | ||||
