JZA80L-ALPVZA (1993)
Toyota Supra
Production
May 1993
-
Jul 1996
Engine
2JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9305- )

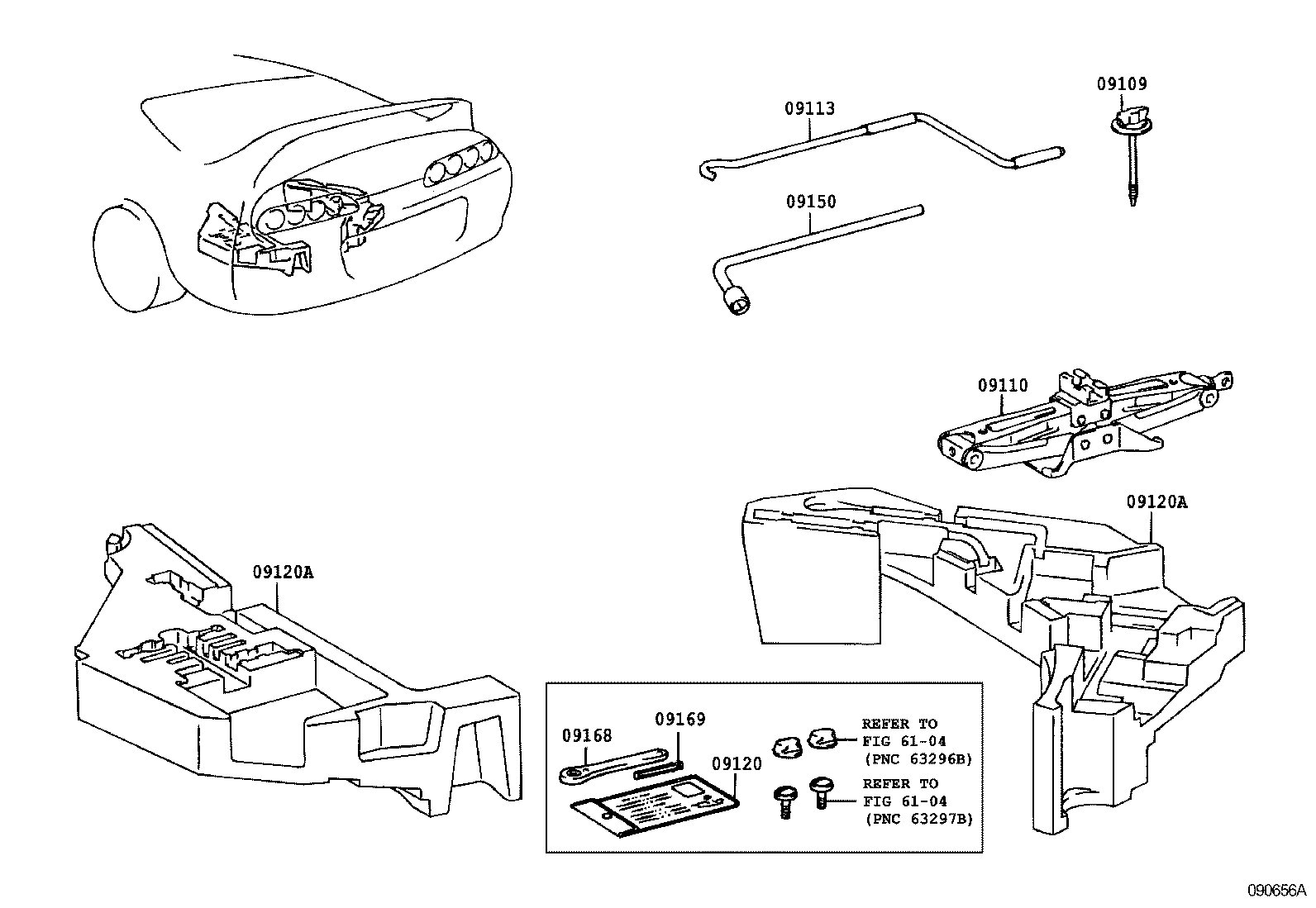

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09109 - BOLT SUB-ASSY, JACK HOLDER | ||||
| 09109-14010 |
JZA80 |
1 | ||
| 09110 - JACK ASSY | ||||
| 09111-14060 |
JZA80 |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-14030 |
JZA80 |
1 | ||
| 09120A - CASE, TOOL | ||||
| 09120-14060 |
JZA80 RH |
1 | ||
| 09120-14070 |
JZA80 LH |
1 | ||
| 09120A - CASE, TOOL | ||||
| 09120-14060 |
JZA80 RH |
1 | ||
| 09120-14070 |
JZA80 LH |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-26010 |
JZA80 |
1 | ||
| Linked diagrams | ||||
| 6104 | ||||
