JZA80L-ALPVFA (1993)
Toyota Supra

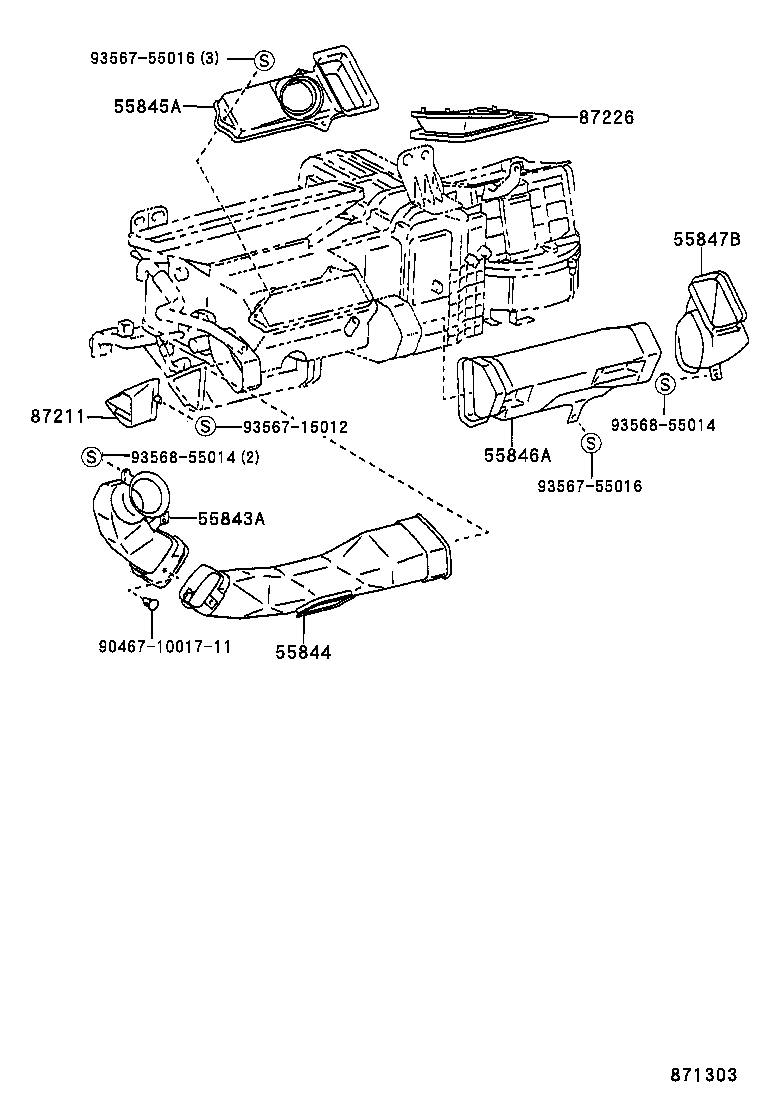

ILLUST NO. 2 OF 3(9305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-14170 |
JZA80 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-14190 |
JZA80 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-14220 |
JZA80 |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-14140 |
JZA80 |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-14110 |
JZA80 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-14120 |
JZA80 |
1 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-14040 |
JZA80 |
1 | ||
| Common parts | ||||
| 90467-1001711 | ||||
| 93567-15012 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||

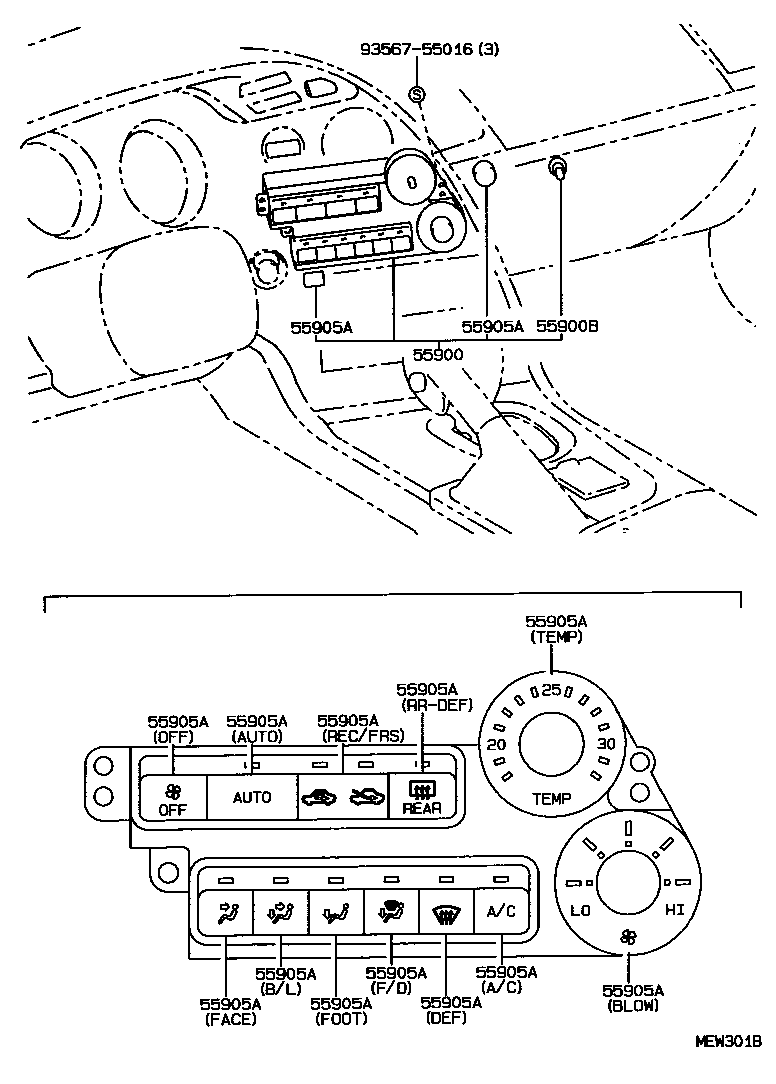

ILLUST NO. 1 OF 3(9305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-14520 |
JZA80..USA |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-70009 |
JZA80 14V 1.54W |
5 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-14200 |
JZA80 OFF |
1 | ||
| 55905-14230 |
JZA80 RR-DEF |
1 | ||
| 55905-14240 |
JZA80 FACE |
1 | ||
| 55905-14220 |
JZA80 REC/FRS |
1 | ||
| 55905-14210 |
JZA80 AUTO |
1 | ||
| 55905-14300 |
JZA80 TEMP |
1 | ||
| 55905-14270 |
JZA80 F/D |
1 | ||
| 55905-14250 |
JZA80 B/L |
1 | ||
| 55905-14280 |
JZA80 DEF |
1 | ||
| 55905-14310 |
JZA80 BLOW |
1 | ||
| 55905-14290 |
JZA80 A/C |
1 | ||
| 55905-14260 |
JZA80 FOOT |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-14200 |
JZA80 OFF |
1 | ||
| 55905-14230 |
JZA80 RR-DEF |
1 | ||
| 55905-14240 |
JZA80 FACE |
1 | ||
| 55905-14220 |
JZA80 REC/FRS |
1 | ||
| 55905-14210 |
JZA80 AUTO |
1 | ||
| 55905-14300 |
JZA80 TEMP |
1 | ||
| 55905-14270 |
JZA80 F/D |
1 | ||
| 55905-14250 |
JZA80 B/L |
1 | ||
| 55905-14280 |
JZA80 DEF |
1 | ||
| 55905-14310 |
JZA80 BLOW |
1 | ||
| 55905-14290 |
JZA80 A/C |
1 | ||
| 55905-14260 |
JZA80 FOOT |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-14200 |
JZA80 OFF |
1 | ||
| 55905-14230 |
JZA80 RR-DEF |
1 | ||
| 55905-14240 |
JZA80 FACE |
1 | ||
| 55905-14220 |
JZA80 REC/FRS |
1 | ||
| 55905-14210 |
JZA80 AUTO |
1 | ||
| 55905-14300 |
JZA80 TEMP |
1 | ||
| 55905-14270 |
JZA80 F/D |
1 | ||
| 55905-14250 |
JZA80 B/L |
1 | ||
| 55905-14280 |
JZA80 DEF |
1 | ||
| 55905-14310 |
JZA80 BLOW |
1 | ||
| 55905-14290 |
JZA80 A/C |
1 | ||
| 55905-14260 |
JZA80 FOOT |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-14200 |
JZA80 OFF |
1 | ||
| 55905-14230 |
JZA80 RR-DEF |
1 | ||
| 55905-14240 |
JZA80 FACE |
1 | ||
| 55905-14220 |
JZA80 REC/FRS |
1 | ||
| 55905-14210 |
JZA80 AUTO |
1 | ||
| 55905-14300 |
JZA80 TEMP |
1 | ||
| 55905-14270 |
JZA80 F/D |
1 | ||
| 55905-14250 |
JZA80 B/L |
1 | ||
| 55905-14280 |
JZA80 DEF |
1 | ||
| 55905-14310 |
JZA80 BLOW |
1 | ||
| 55905-14290 |
JZA80 A/C |
1 | ||
| 55905-14260 |
JZA80 FOOT |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-14200 |
JZA80 OFF |
1 | ||
| 55905-14230 |
JZA80 RR-DEF |
1 | ||
| 55905-14240 |
JZA80 FACE |
1 | ||
| 55905-14220 |
JZA80 REC/FRS |
1 | ||
| 55905-14210 |
JZA80 AUTO |
1 | ||
| 55905-14300 |
JZA80 TEMP |
1 | ||
| 55905-14270 |
JZA80 F/D |
1 | ||
| 55905-14250 |
JZA80 B/L |
1 | ||
| 55905-14280 |
JZA80 DEF |
1 | ||
| 55905-14310 |
JZA80 BLOW |
1 | ||
| 55905-14290 |
JZA80 A/C |
1 | ||
| 55905-14260 |
JZA80 FOOT |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-14200 |
JZA80 OFF |
1 | ||
| 55905-14230 |
JZA80 RR-DEF |
1 | ||
| 55905-14240 |
JZA80 FACE |
1 | ||
| 55905-14220 |
JZA80 REC/FRS |
1 | ||
| 55905-14210 |
JZA80 AUTO |
1 | ||
| 55905-14300 |
JZA80 TEMP |
1 | ||
| 55905-14270 |
JZA80 F/D |
1 | ||
| 55905-14250 |
JZA80 B/L |
1 | ||
| 55905-14280 |
JZA80 DEF |
1 | ||
| 55905-14310 |
JZA80 BLOW |
1 | ||
| 55905-14290 |
JZA80 A/C |
1 | ||
| 55905-14260 |
JZA80 FOOT |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-14200 |
JZA80 OFF |
1 | ||
| 55905-14230 |
JZA80 RR-DEF |
1 | ||
| 55905-14240 |
JZA80 FACE |
1 | ||
| 55905-14220 |
JZA80 REC/FRS |
1 | ||
| 55905-14210 |
JZA80 AUTO |
1 | ||
| 55905-14300 |
JZA80 TEMP |
1 | ||
| 55905-14270 |
JZA80 F/D |
1 | ||
| 55905-14250 |
JZA80 B/L |
1 | ||
| 55905-14280 |
JZA80 DEF |
1 | ||
| 55905-14310 |
JZA80 BLOW |
1 | ||
| 55905-14290 |
JZA80 A/C |
1 | ||
| 55905-14260 |
JZA80 FOOT |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-14200 |
JZA80 OFF |
1 | ||
| 55905-14230 |
JZA80 RR-DEF |
1 | ||
| 55905-14240 |
JZA80 FACE |
1 | ||
| 55905-14220 |
JZA80 REC/FRS |
1 | ||
| 55905-14210 |
JZA80 AUTO |
1 | ||
| 55905-14300 |
JZA80 TEMP |
1 | ||
| 55905-14270 |
JZA80 F/D |
1 | ||
| 55905-14250 |
JZA80 B/L |
1 | ||
| 55905-14280 |
JZA80 DEF |
1 | ||
| 55905-14310 |
JZA80 BLOW |
1 | ||
| 55905-14290 |
JZA80 A/C |
1 | ||
| 55905-14260 |
JZA80 FOOT |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-14200 |
JZA80 OFF |
1 | ||
| 55905-14230 |
JZA80 RR-DEF |
1 | ||
| 55905-14240 |
JZA80 FACE |
1 | ||
| 55905-14220 |
JZA80 REC/FRS |
1 | ||
| 55905-14210 |
JZA80 AUTO |
1 | ||
| 55905-14300 |
JZA80 TEMP |
1 | ||
| 55905-14270 |
JZA80 F/D |
1 | ||
| 55905-14250 |
JZA80 B/L |
1 | ||
| 55905-14280 |
JZA80 DEF |
1 | ||
| 55905-14310 |
JZA80 BLOW |
1 | ||
| 55905-14290 |
JZA80 A/C |
1 | ||
| 55905-14260 |
JZA80 FOOT |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-14200 |
JZA80 OFF |
1 | ||
| 55905-14230 |
JZA80 RR-DEF |
1 | ||
| 55905-14240 |
JZA80 FACE |
1 | ||
| 55905-14220 |
JZA80 REC/FRS |
1 | ||
| 55905-14210 |
JZA80 AUTO |
1 | ||
| 55905-14300 |
JZA80 TEMP |
1 | ||
| 55905-14270 |
JZA80 F/D |
1 | ||
| 55905-14250 |
JZA80 B/L |
1 | ||
| 55905-14280 |
JZA80 DEF |
1 | ||
| 55905-14310 |
JZA80 BLOW |
1 | ||
| 55905-14290 |
JZA80 A/C |
1 | ||
| 55905-14260 |
JZA80 FOOT |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-14200 |
JZA80 OFF |
1 | ||
| 55905-14230 |
JZA80 RR-DEF |
1 | ||
| 55905-14240 |
JZA80 FACE |
1 | ||
| 55905-14220 |
JZA80 REC/FRS |
1 | ||
| 55905-14210 |
JZA80 AUTO |
1 | ||
| 55905-14300 |
JZA80 TEMP |
1 | ||
| 55905-14270 |
JZA80 F/D |
1 | ||
| 55905-14250 |
JZA80 B/L |
1 | ||
| 55905-14280 |
JZA80 DEF |
1 | ||
| 55905-14310 |
JZA80 BLOW |
1 | ||
| 55905-14290 |
JZA80 A/C |
1 | ||
| 55905-14260 |
JZA80 FOOT |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-14200 |
JZA80 OFF |
1 | ||
| 55905-14230 |
JZA80 RR-DEF |
1 | ||
| 55905-14240 |
JZA80 FACE |
1 | ||
| 55905-14220 |
JZA80 REC/FRS |
1 | ||
| 55905-14210 |
JZA80 AUTO |
1 | ||
| 55905-14300 |
JZA80 TEMP |
1 | ||
| 55905-14270 |
JZA80 F/D |
1 | ||
| 55905-14250 |
JZA80 B/L |
1 | ||
| 55905-14280 |
JZA80 DEF |
1 | ||
| 55905-14310 |
JZA80 BLOW |
1 | ||
| 55905-14290 |
JZA80 A/C |
1 | ||
| 55905-14260 |
JZA80 FOOT |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-14200 |
JZA80 OFF |
1 | ||
| 55905-14230 |
JZA80 RR-DEF |
1 | ||
| 55905-14240 |
JZA80 FACE |
1 | ||
| 55905-14220 |
JZA80 REC/FRS |
1 | ||
| 55905-14210 |
JZA80 AUTO |
1 | ||
| 55905-14300 |
JZA80 TEMP |
1 | ||
| 55905-14270 |
JZA80 F/D |
1 | ||
| 55905-14250 |
JZA80 B/L |
1 | ||
| 55905-14280 |
JZA80 DEF |
1 | ||
| 55905-14310 |
JZA80 BLOW |
1 | ||
| 55905-14290 |
JZA80 A/C |
1 | ||
| 55905-14260 |
JZA80 FOOT |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-14200 |
JZA80 OFF |
1 | ||
| 55905-14230 |
JZA80 RR-DEF |
1 | ||
| 55905-14240 |
JZA80 FACE |
1 | ||
| 55905-14220 |
JZA80 REC/FRS |
1 | ||
| 55905-14210 |
JZA80 AUTO |
1 | ||
| 55905-14300 |
JZA80 TEMP |
1 | ||
| 55905-14270 |
JZA80 F/D |
1 | ||
| 55905-14250 |
JZA80 B/L |
1 | ||
| 55905-14280 |
JZA80 DEF |
1 | ||
| 55905-14310 |
JZA80 BLOW |
1 | ||
| 55905-14290 |
JZA80 A/C |
1 | ||
| 55905-14260 |
JZA80 FOOT |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||

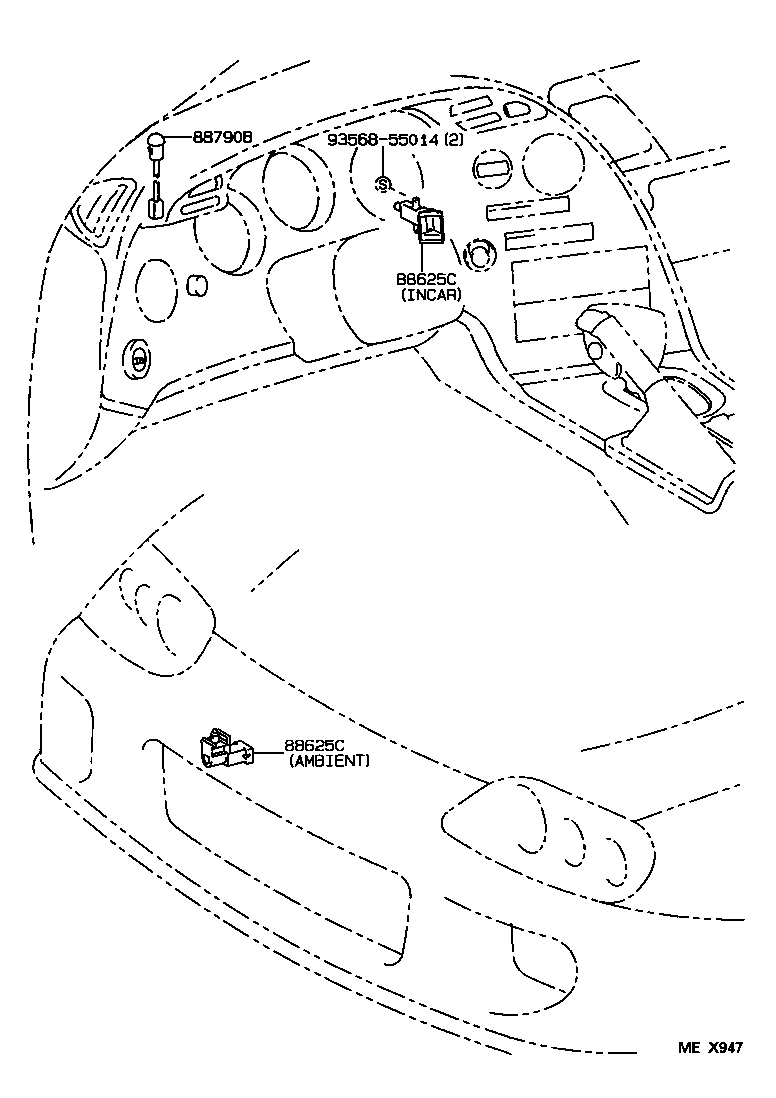

ILLUST NO. 3 OF 3(9305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-14110 |
JZA80 AMBIENT |
1 | ||
| 88625-14100 |
JZA80 INCAR |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-14110 |
JZA80 AMBIENT |
1 | ||
| 88625-14100 |
JZA80 INCAR |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-24150 |
JZA80 |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
