JZA80L-ALPVFA (1993)

Toyota Supra

Production May 1993 - Aug 1998
Engine 2JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )

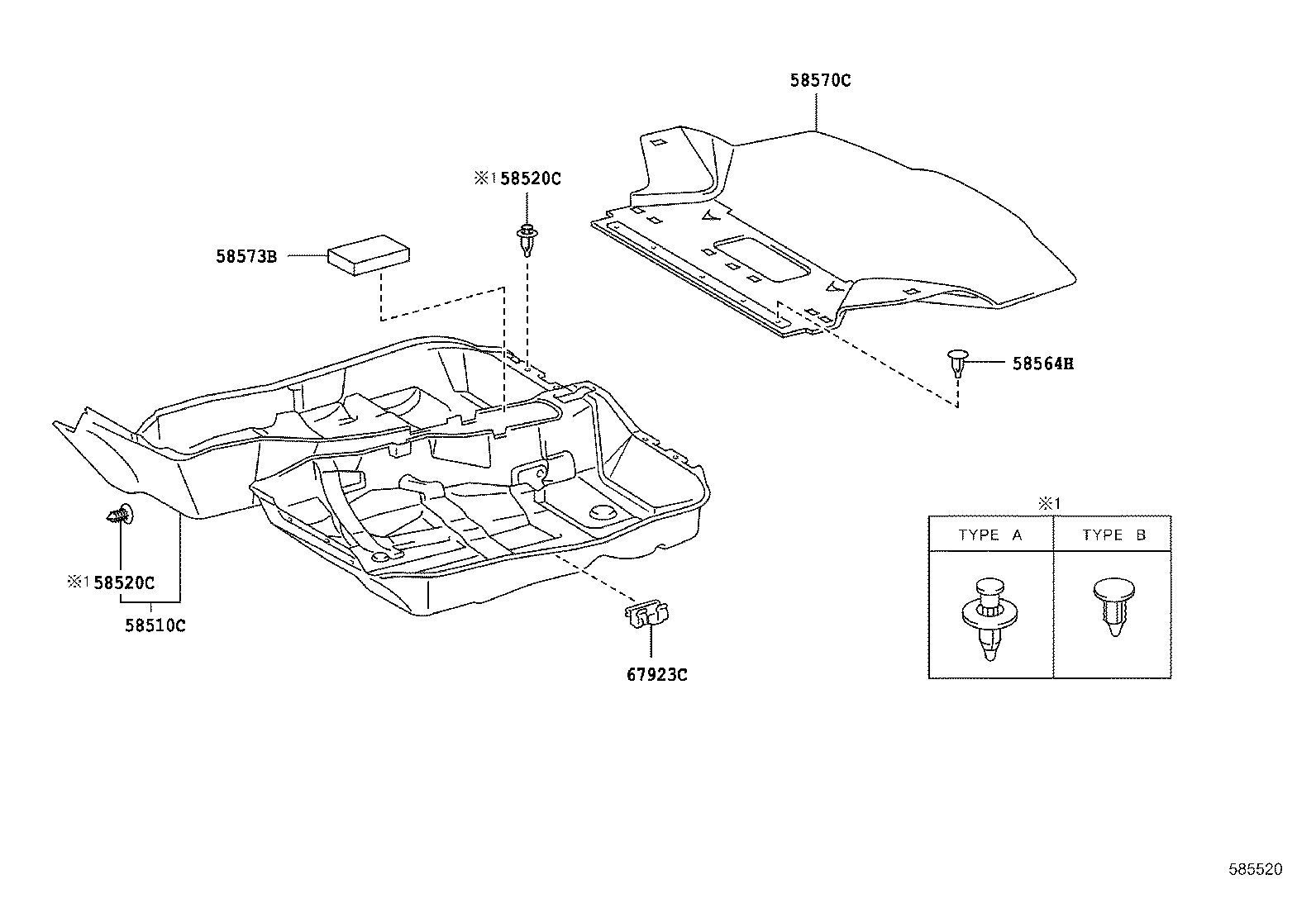

Click highlighted areas on diagram

diagram 58510C 58520C 58520C 58564H 58570C 58573B 67923C
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-1B181A0

JZA80..4FC

IVORY,TRIM0#

 1
58510-1B181C0

JZA80..4FC

BLACK,TRIM2#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90904-67023C0

JZA80

BLACK,TRIM0#,2#

 1
90467-06166C0

JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT

BLACK,TRIM2#,TYPE A

 6
90467-06016A0

JZA80

TYPE B:REFER TO ILLUSTRATION,IVORY,TRIM0#

 4
90467-06166C0

JZA80..(4FC,6F)..USA

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2#

 2
90467-06166A0

JZA80..4FC

IVORY,TRIM0#

 6
90467-06016C0

JZA80

TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2#

 4
90904-67023C0

JZA80

BLACK,TRIM0#,2#,TYPE B

 2
90467-06166C0

JZA80..(4FC,6F)..USA

BLACK,TRIM2#,TYPE A

 6
90467-06166A0

JZA80..4FC,5F;JZA80..6F..CND

IVORY,TRIM0#

 6
90467-06016

JZA80

TYPE B:REFER TO ILLUSTRATION

 4
90904-67023C0

JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT

BLACK,TRIM0#,2#,TYPE B

 2
90467-06166A0

JZA80

TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM0#

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90904-67023C0

JZA80

BLACK,TRIM0#,2#

 1
90467-06166C0

JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT

BLACK,TRIM2#,TYPE A

 6
90467-06016A0

JZA80

TYPE B:REFER TO ILLUSTRATION,IVORY,TRIM0#

 4
90467-06166C0

JZA80..(4FC,6F)..USA

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2#

 2
90467-06166A0

JZA80..4FC

IVORY,TRIM0#

 6
90467-06016C0

JZA80

TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2#

 4
90904-67023C0

JZA80

BLACK,TRIM0#,2#,TYPE B

 2
90467-06166C0

JZA80..(4FC,6F)..USA

BLACK,TRIM2#,TYPE A

 6
90467-06166A0

JZA80..4FC,5F;JZA80..6F..CND

IVORY,TRIM0#

 6
90467-06016

JZA80

TYPE B:REFER TO ILLUSTRATION

 4
90904-67023C0

JZA80..6F;JZA80..TWC;JZA80..AET..4FC..TWT

BLACK,TRIM0#,2#,TYPE B

 2
90467-06166A0

JZA80

TYPE A:REFER TO ILLUSTRATION,IVORY,TRIM0#

 2
58564H - CLIP(FOR REAR FLOOR CARPET)
90467-07043C0

JZA80

BLACK,TRIM0#,2#

 4
58570C - CARPET ASSY, REAR FLOOR
58570-14430C0

JZA80..LB

W(7-SPEAKERS),BLACK,TRIM0#,2#

 1
58570-14411C1

JZA80..LB

BLACK,TRIM0#,2#

 1
58570-14470C0

JZA80..LB

BLACK,TRIM0#,2#

 1
58570-14431C1

JZA80..LB

W(7-SPEAKERS),BLACK,TRIM0#,2#

 1
58570-14410C0

JZA80..LB

BLACK,TRIM0#,2#

 1
58570-14431C1

JZA80..LB

W(7-SPEAKERS),BLACK,TRIM0#,2#

 1
58573B - PAD, FRONT FLOOR CENTER
58573-14040

JZA80..USA

 1
67923C - CLAMP, DOOR SCUFF PLATE, NO.1
67923-24010

JZA80..LB

 10
