JZA80L-ALMVFA (1993)
Toyota Supra

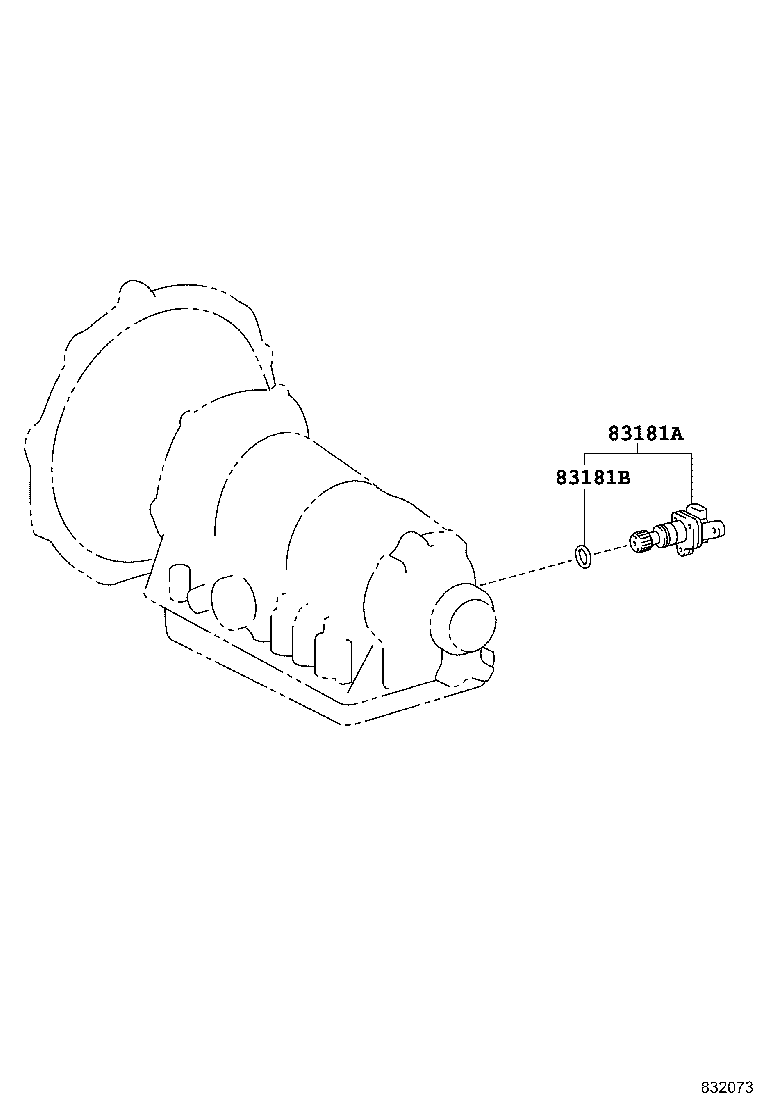

ILLUST NO. 2 OF 2(9305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24070 |
JZA80..MTM |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
JZA80..MTM |
1 | ||

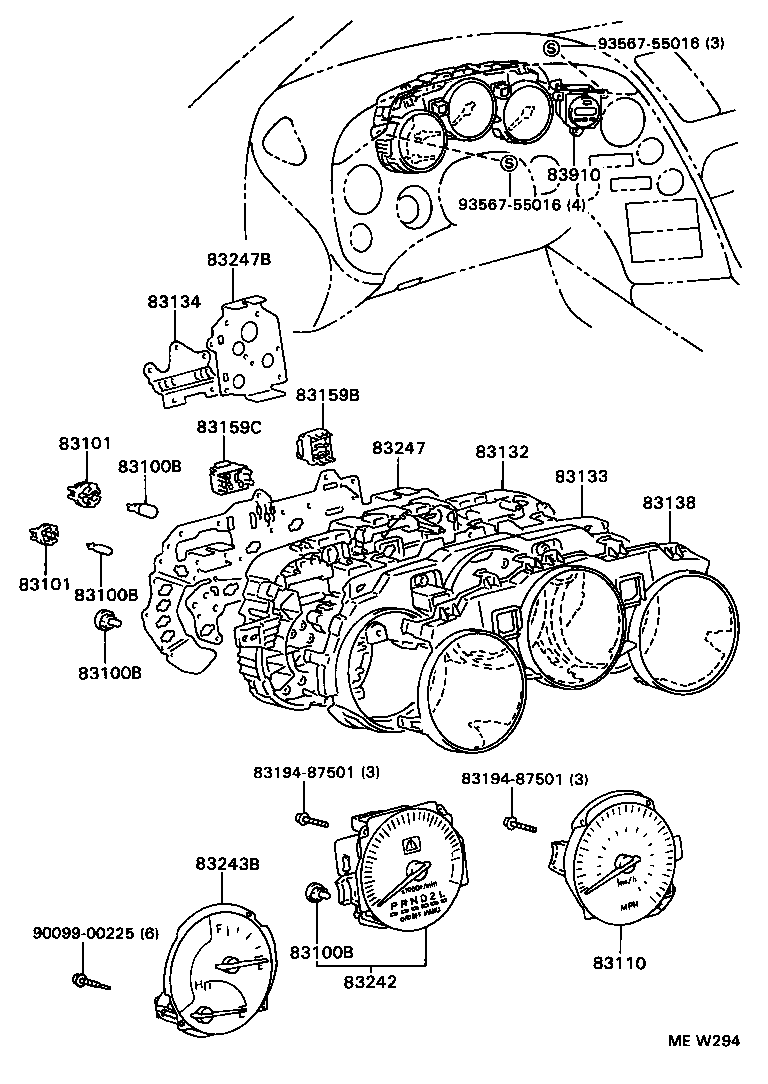

ILLUST NO. 1 OF 2(9305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
JZA80..TWC 12V 1.2W W/O SOCKET |
3 | ||
| 83119-32010 |
JZA80 14V 3.0W |
3 | ||
| 83109-24010 |
JZA80 12V 1.4W,GREEN CAP |
1 | ||
| 83109-24020 |
JZA80 12V3.4W W(GREEN CAP) |
3 | ||
| 83101-20080 |
JZA80 12V 1.4W,W(SOCKET) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
JZA80..TWC 12V 1.2W W/O SOCKET |
3 | ||
| 83119-32010 |
JZA80 14V 3.0W |
3 | ||
| 83109-24010 |
JZA80 12V 1.4W,GREEN CAP |
1 | ||
| 83109-24020 |
JZA80 12V3.4W W(GREEN CAP) |
3 | ||
| 83101-20080 |
JZA80 12V 1.4W,W(SOCKET) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
JZA80..TWC 12V 1.2W W/O SOCKET |
3 | ||
| 83119-32010 |
JZA80 14V 3.0W |
3 | ||
| 83109-24010 |
JZA80 12V 1.4W,GREEN CAP |
1 | ||
| 83109-24020 |
JZA80 12V3.4W W(GREEN CAP) |
3 | ||
| 83101-20080 |
JZA80 12V 1.4W,W(SOCKET) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
JZA80..TWC 12V 1.2W W/O SOCKET |
3 | ||
| 83119-32010 |
JZA80 14V 3.0W |
3 | ||
| 83109-24010 |
JZA80 12V 1.4W,GREEN CAP |
1 | ||
| 83109-24020 |
JZA80 12V3.4W W(GREEN CAP) |
3 | ||
| 83101-20080 |
JZA80 12V 1.4W,W(SOCKET) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-24010 |
JZA80 14V 3.0W |
3 | ||
| 83101-24010 |
JZA80..5F 14V 3.4W |
3 | ||
| 83101-14030 |
JZA80 12V 3.4W |
3 | ||
| 83101-14040 |
JZA80..5F 12V 1.4W |
4 | ||
| 83101-14040 |
JZA80..TWC 12V 1.4W |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-24010 |
JZA80 14V 3.0W |
3 | ||
| 83101-24010 |
JZA80..5F 14V 3.4W |
3 | ||
| 83101-14030 |
JZA80 12V 3.4W |
3 | ||
| 83101-14040 |
JZA80..5F 12V 1.4W |
4 | ||
| 83101-14040 |
JZA80..TWC 12V 1.4W |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1B290 |
JZA80..USA |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1J320 |
JZA80..MTM |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1D290 |
JZA80 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1B270 |
JZA80 |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22370 |
JZA80 |
1 | ||
| 83159C - RELAY ASSY, METER | ||||
| 83159-22170 |
JZA80 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1U330 |
JZA80..5F |
1 | ||
| 83243B - GAUGE ASSY, COMBINATION | ||||
| 83243-1B530 |
JZA80..TWC |
1 | ||
| 83243-1B530 |
JZA80..USA |
1 | ||
| 83243-1B531 |
JZA80..USA |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-1U110 |
JZA80 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-14400 |
JZA80 |
1 | ||
| Common parts | ||||
| 83194-87501 | ||||
| 90099-00225 | ||||
| 93567-55016 | ||||
