JZA80L-ALMVFA (1993)
Toyota Supra
Production
May 1993
-
Sep 1997
Engine
2JZGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

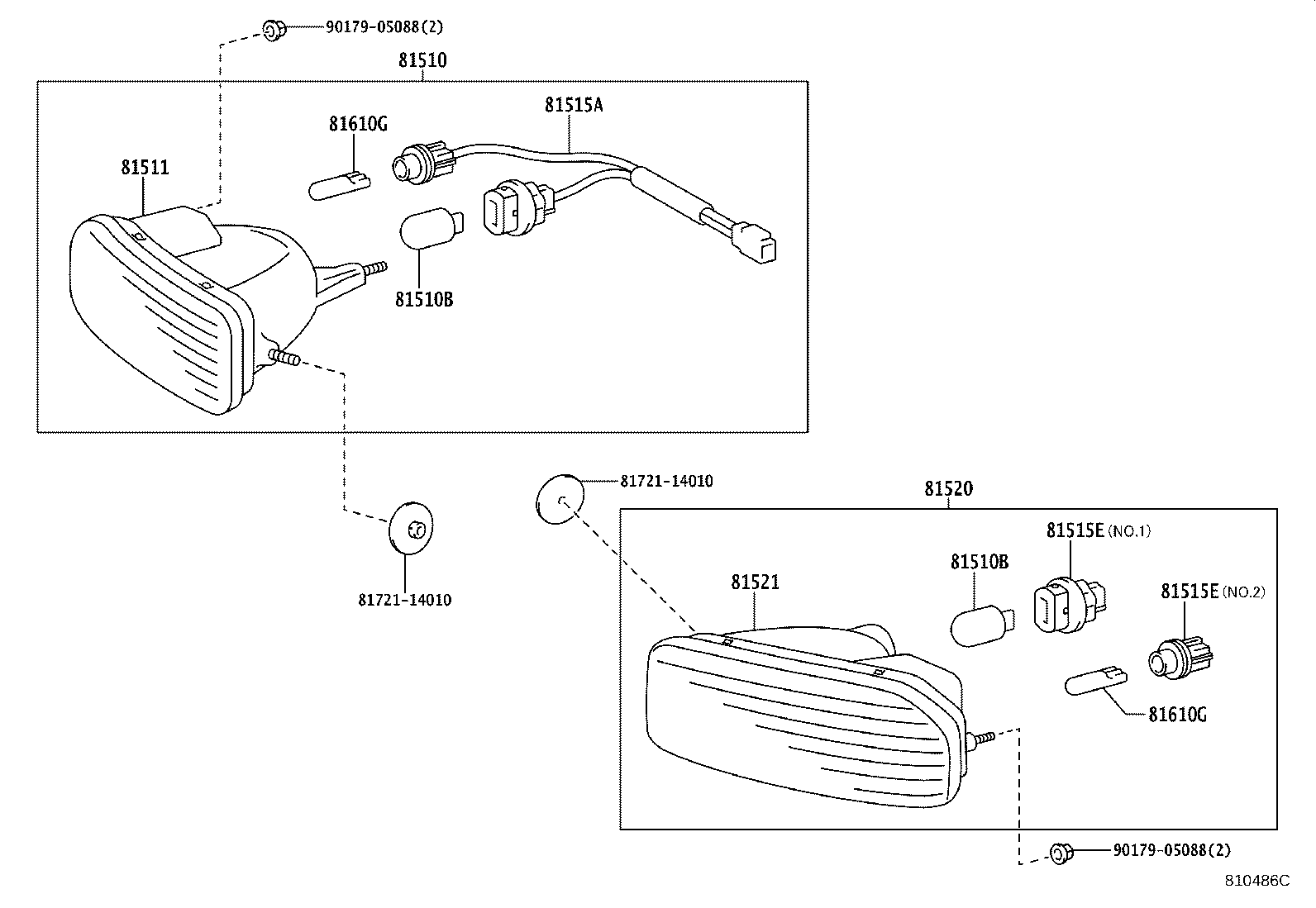

(9607- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-80085 |
JZA80 |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11270 |
JZA80 12V 27W |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11270 |
JZA80 12V 27W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-14380 |
JZA80 |
1 | ||
| 81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP | ||||
| 90075-99092 |
JZA80 LH |
1 | ||
| 81515-14370 |
JZA80 RH |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-80085 |
JZA80 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-14380 |
JZA80 |
1 | ||
| Common parts | ||||
| 81721-14010 | ||||
| 90179-05088 | ||||

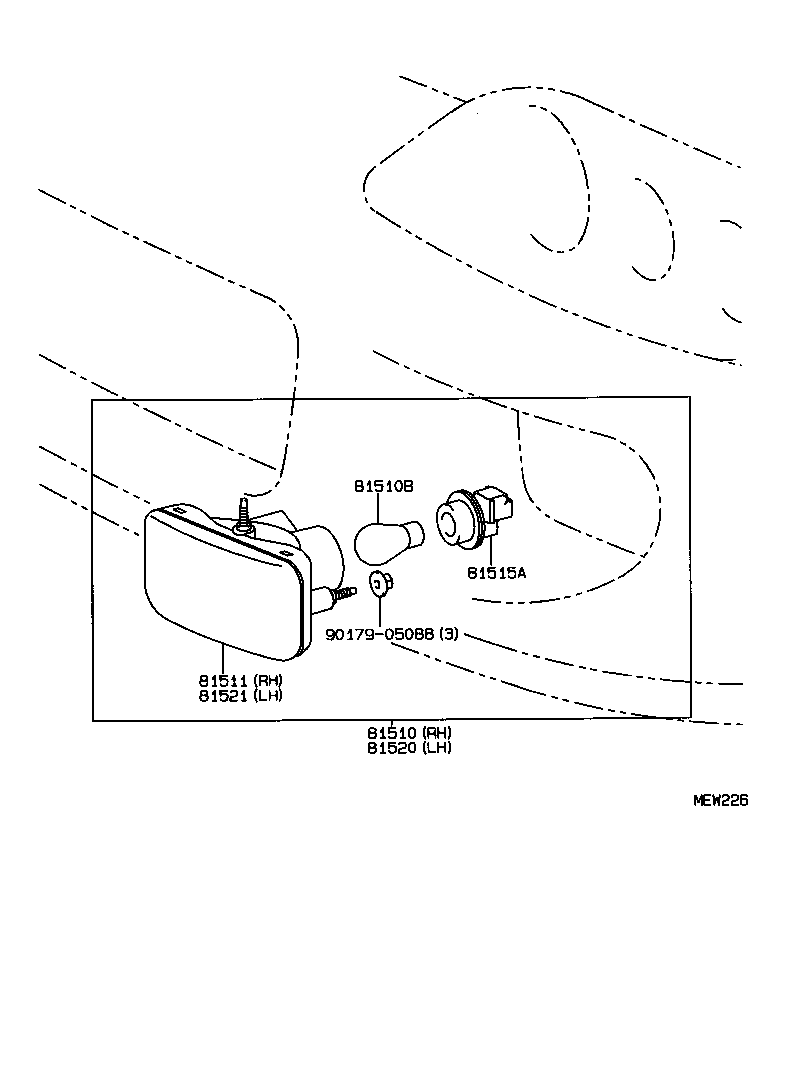

(9305-9607)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-80085 |
JZA80 |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11270 |
JZA80 12V 27W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-14380 |
JZA80 |
1 | ||
| 81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP | ||||
| 90075-99092 |
JZA80 LH |
1 | ||
| 81515-14370 |
JZA80 RH |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-80085 |
JZA80 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-14380 |
JZA80 |
1 | ||
| Common parts | ||||
| 90179-05088 | ||||
